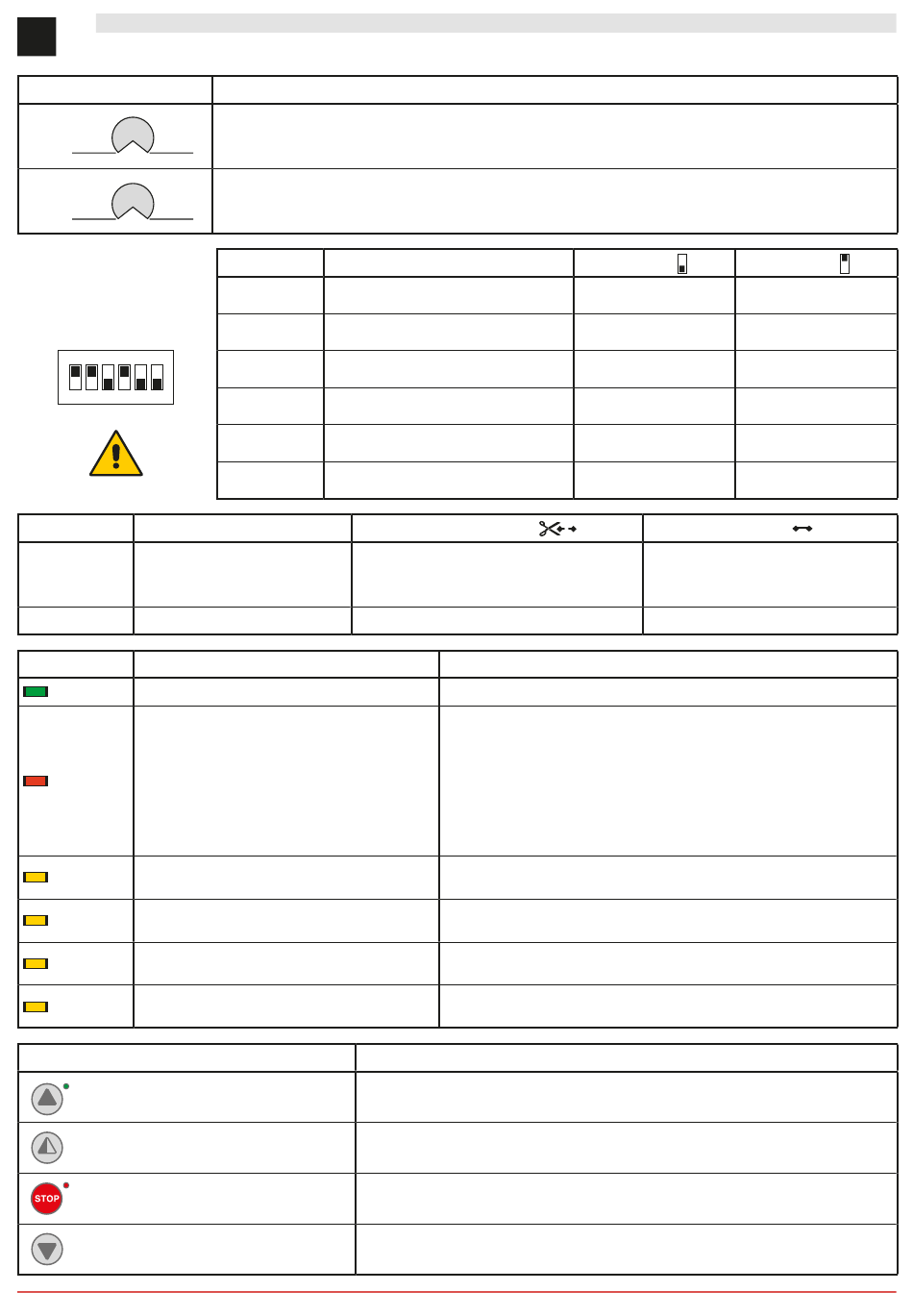

SIGNALS AND SETTING
49E
Trimmer
TC
0 s
30 s
RP
0 s
30 s
Ditec Sector Reset
Dip-switches
setting
ON
1 2 3 4 5 6
Jumpers
Reversal safety switch
SO
function.
EO
Electric brake.
LED
POWER
24 V= power supply.
Indicates that at least one of the safety
SA
contacts is open. ( 6 - 8 - 9 )
Activated at every command and
IN
adjustment to the dip-switch and jumper.
Indicates that the 0-11 limit switch
11
contact is open.
Indicates that the 0-12 limit switch
12
contact is open.
Indicates that the 0-17 limit switch
17
contact is open. (By-pass photocell)
Button
ON
Starts the opening operation.
Starts the partial opening operation.
Starts and stops the STOP operation.
Starts the closing operation.
0DT848 01-12-2021
Setting automatic closing time. From 0 to 30 s.
Note: after the activation of the stop command, once contact 1-9 has closed again, the
automatic closing is only activated after a total, partial or step-by-step opening command.
Motor partial opening adjustment. From 0 to 30 s.
Dip - switch
DIP 1
Control 1-3 function.
Restore automatic closing
DIP 2
time.
DIP 3
Preflashing set at 3 s.
DIP 4
Application type.
DIP 5
Dynamic brake.
DIP 6
Double speed
Description
With the automation blocked, if the
contacts 41-8 are open, it is possible to
activate the opening operation.
Do not use
On
The green LED on indicates the presence of the 24 V=power supply.
the red LED on indicates that the STOP has been activated.
the flashing red LED indicates that the safety devices have been activated.
Description
Description
OFF
- Indicates the STOP operation activated by pushbutton panel
PT4 (if present).
- If the AUTOTEST device is installed, this indicates a safety
test failure (terminal 41).
- On power on, the LED flashes to indicate the number of
operations performed:
each rapid flash = 10000 operations
each slow flash = 100000 operations
- 36 -
OFF
Step-by-Step
Opening
Do not use
100 %
Disabled during
Enabled for both
opening
opening and closing
Do not use
Rapid door
Disabled
Do not use
Disabled
Do not use
With the automation blocked, if
the contacts 41-8 are open, any
operation is impossible.
Normal.
Flashing
/
/
/
/
/
LED
ON
ON
