Epson PowerLite 84+ Guide Rapide

PowerLite 84+/824+
®
Quick Setup
Before using the projector, make sure you read the safety instructions in the
User's Guide on your projector CD.
Your projector may vary slightly from the one shown in this Quick Setup sheet,
but the procedures are the same.

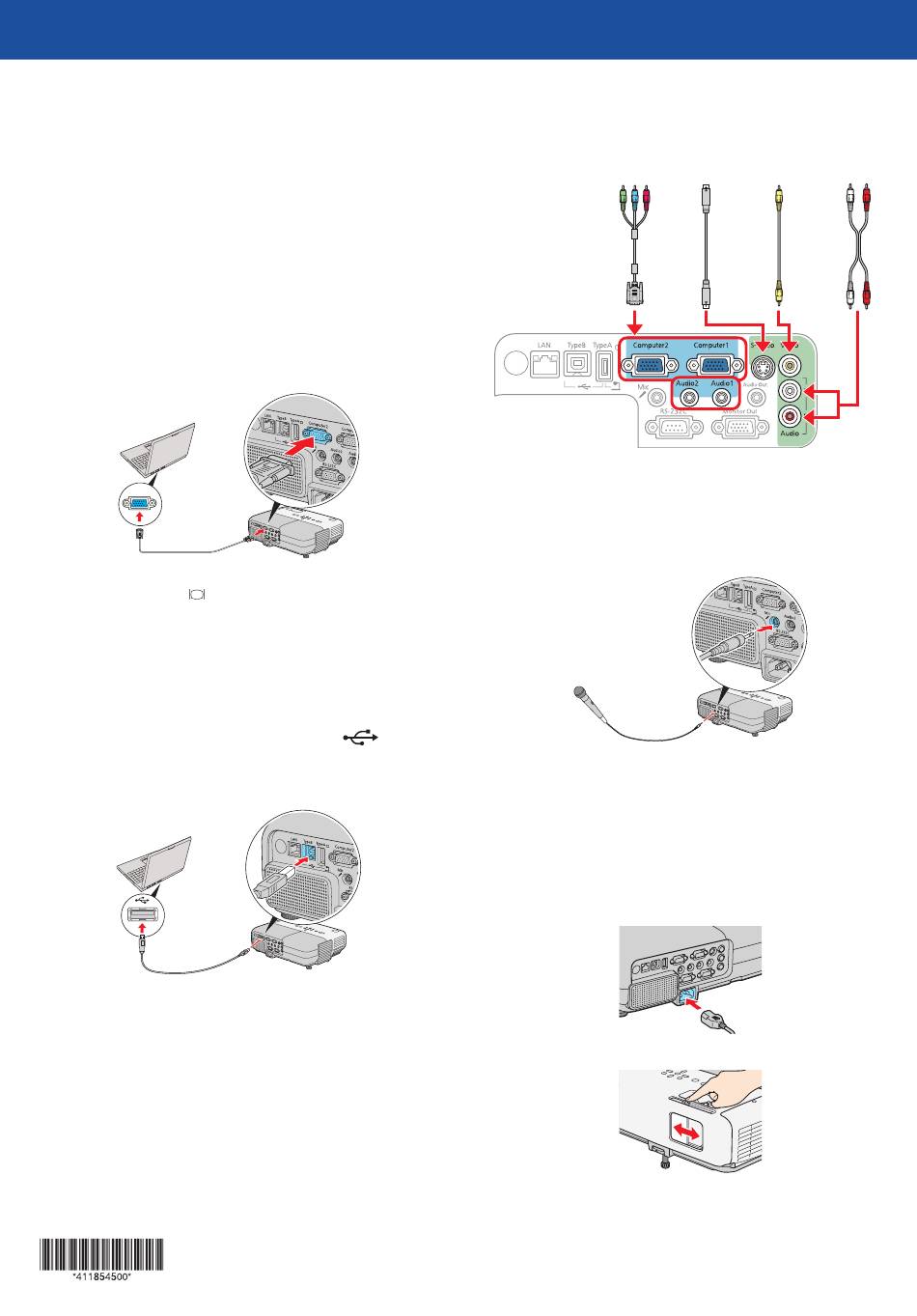

Connect the projector
Choose from the following connections:
Computer Monitor Port
Connect a computer using the VGA cable that came with the projector.
Connect one end to the projector's Computer1 or Computer2 port, and the
other end to your computer's monitor port. If you are using a notebook,
switch it to external display. You can also connect an audio cable to the
Audio1 or Audio2 port.
Computer USB Port
Connect a computer (Windows ® 2000 SP4 or later or Mac OS
using the USB cable that came with the projector.
Connect the square end of the USB cable to the projector's
(square) USB port. Connect the flat end of the cable to any USB port on your
computer. Then turn on your projector (see "Turn on your equipment"). You
can also connect an audio cable to the Audio2 port.
Follow the on-screen instructions to install the Epson USB Display software
(with Mac OS X, first double-click the USB Display Installer icon that appears
on your computer screen). Then press the USB button on the remote control.
(You need to install the software only the first time you connect.)
Video Player
Connect up to 4 video devices and use the remote control to switch between
them.
Microphone
Connect a dynamic or condenser microphone to the Mic port, using a 3.5 mm
mini-jack cable.
NOTE: If you're using a condenser microphone, set the Plug-in Power setting
to On. See the User's Guide on your projector CD for more information.
® X 10.5.1-10.6)
TypeB
For information on playing sound through the projector or connecting an
external monitor, see the User's Guide on your projector CD.
Turn on your equipment
1
Turn on your computer or video source.
2
Plug in the projector.
3
Open the A/V Mute slide all the way.
Component-to- S-Video RCA video cable
VGA cable cable (composite video)
(optional) (optional) (optional)
Audio cable
(optional)
