RCU807US_IB_REVB 9/26/03

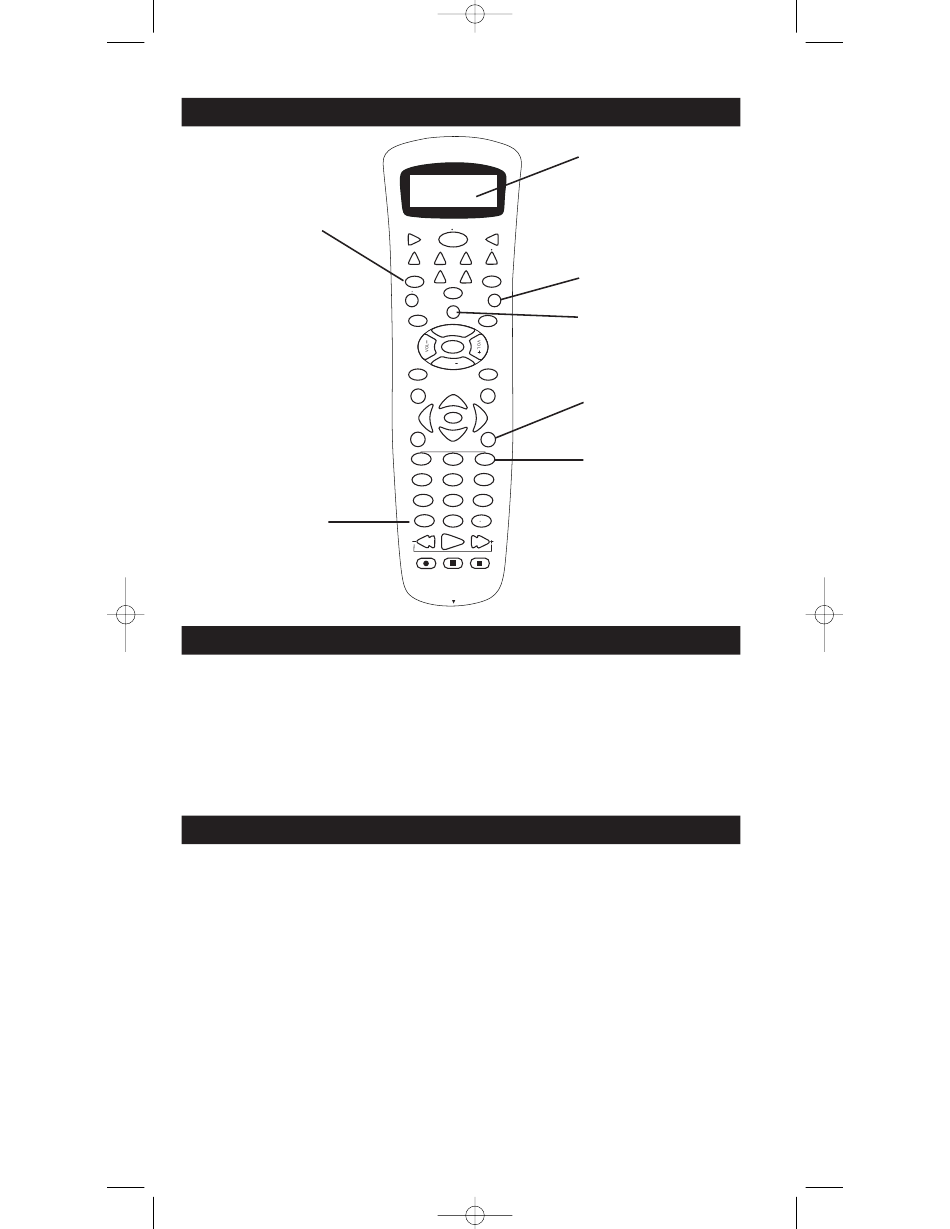

RCU807 Product Diagram
LEARN keys
(L1, L2, L3)
ENTER key

LCD Status Display

The LCD (Liquid Crystal Display) status display on your RCU807 provides a visual interface
between the user and the remote. This display makes it easy to program and use your remote
with many components.
The LCD status display remains blank when the remote is not in use. Pressing any key displays
the time and the current component mode. The status display turns off after approximately
15 seconds from the last keypress, except when an Event Timer is set. In this case, the display
remains on until the event has occurred.

Setup Routine and Procedures

The SETUP (S) key is located towards the upper right-hand side of the RCU807 unit. The
SETUP (S) key is used to walk you through the steps in setting up the remote. To enter the Setup
Mode, press and hold the SETUP (S) key for 2-3 seconds until the Setup Mode? Screen is shown.
Successive presses of the SETUP (S) key walk you through all the available setup routines.
4
10:18 Page 4
ON OFF
VCR TV
DVD AUX1 AUX2 SAT CBL
AUDIO CD
L3
L1
AM FM
L2
S
SETUP
SLEEP
MACRO
M M M
FRONT CENTER
PIP SWAP
CH +
MUTE
CH
TEST
REAR
INPUT GO BACK
LEVEL+
INFO
GUIDE
DSP DSP
SELECT
MODE
ON.OFF
MENU CLEAR
LEVEL-
MACRO
1 2 3
CD TAPE TUNER
4 5 6
TV VIDEO1 VIDEO2
7 8 9
FUNCTION
0
ENTER
TV VCR
REVERSE PLAY FORWARD
DELAY DELAY
STOP
RECORD PAUSE
LEARN
Liquid Crystal
Status Display
(LCD)
SETUP key
MACRO (M) key
CLEAR key
MACRO 1, 2, 3 keys
