Programming:

• Loop Link is a communications interface that is needed for programming
PRetop 5331.

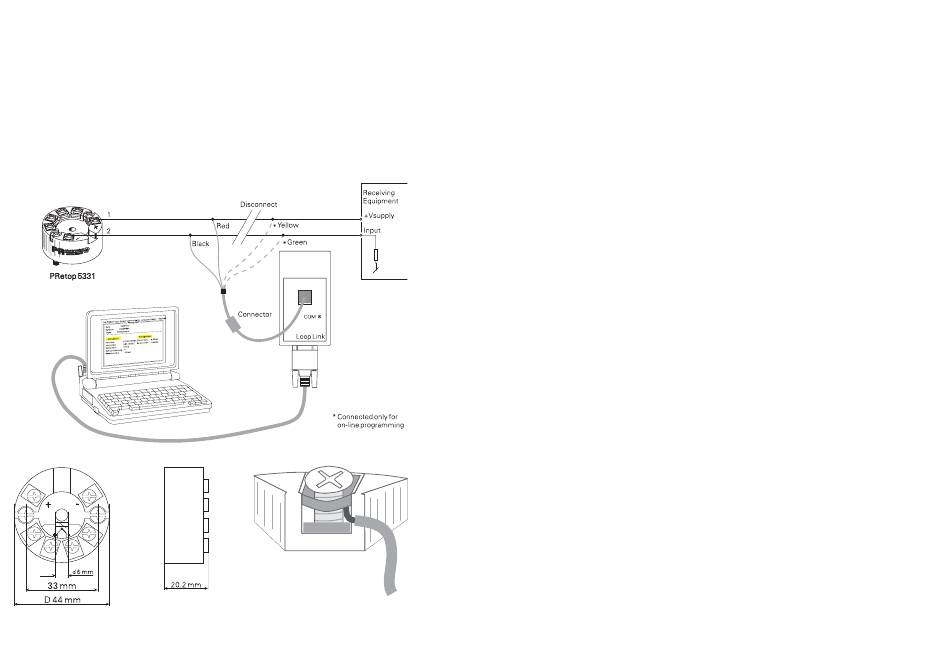

• For programming please refer to the drawing below and the help functions in
PReset.
• Loop link is not approved for communication with modules installed in harzard-
ous (Ex) areas
Order: Loop Link

Mechanical specifications:

24

Mounting of sensor wires

Wires must be mounted between the metal
plates.
TRANSMETTEUR 2-FILS
UNIVERSEL (Pt100/TC)
PRetop 5331
SOMMAIRE
Consigne de sécurité ......................................................... 26
Déclaration de conformité .................................................. 27
Application ......................................................................... 28
Caractéristiques techniques .............................................. 28
Montage / installation ......................................................... 28
Applications ........................................................................ 29
Référence ........................................................................... 30
Spécifications électriques .................................................. 30
Connexions ........................................................................ 34
Schéma de principe ........................................................... 35
Programmation ................................................................... 36
Dimensions mécaniques .................................................... 36
Montage des fils du capteur .............................................. 36
Appendix:
FM Installation Drawing No. 5300Q502 ............................. 50
CSA Installation Drawing No. 533XQC03 .......................... 52
