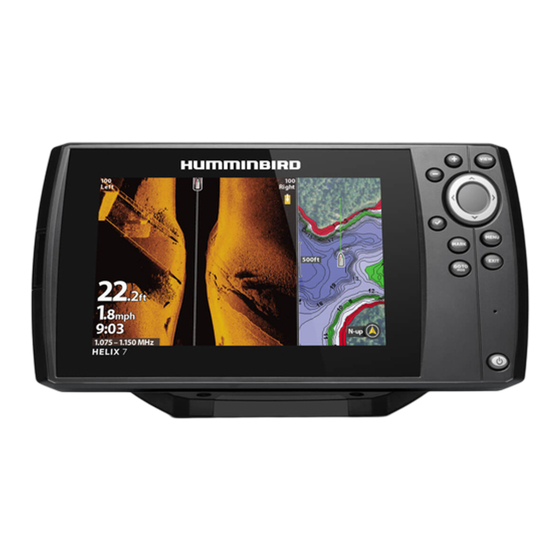

HELIX® PORTABLE CONTROL HEAD Installation Guide
Follow the instructions in this installation guide to install the control head in the portable case.
There may be some minor differences between the hardware described in this manual and the
actual hardware included, depending on the configuration you purchased. We encourage you to
read this guide completely so that you may understand the installation requirements.
Technical Support: If you find that any items are missing from your installation kit, visit our Web site
at humminbird.com or call Humminbird® Technical Support at 1-800-633-1468.
SUPPLIES: In addition to the installation kit, you will need a Phillips-head screwdriver, flat-head
screwdriver, awl, hammer, and pliers.
NOTE: The procedures and features described in this guide are subject to change without notice.
This guide was written in English and may have been translated to another language. Humminbird
is not responsible for incorrect translations or discrepancies between documents.
NOTE: The illustrations in this guide may not look the same as your product, but your unit will
function in the same way.
Portable Conversion Kit
If you have a Portable Conversion Kit, you must first un-install the control head and the transducer
from their fixed mounting positions before performing the portable installation instructions
described in this guide. Once you have converted the control head and the transducer to portable
configurations, you will be ready to mount the portable case.
1
| Converting the Control Head to Portable
1. Disconnect the cables from the control head installed on your boat.
2. Loosen the gimbal knobs and slide the control head out of the gimbal bracket.
3. Go to Portable Case Assembly and follow the instructions through the section Installing the
Base in the Portable Bag.
2
| Converting the Transducer to Portable
1. Unscrew the transducer from the fixed mounting bracket on your boat, saving the original
screws for any future fixed mounting configuration (new portable mounting screws are
provided in the Portable Conversion Kit).
2. Proceed to the portable transducer installation guide and follow the instructions to install the
transducer.
Installation Preparation
1
| Charging the Battery
You should fully charge your battery before using it for the first time to ensure peak performance.
You should also re-charge your battery at least once every 6 months to maintain your battery's peak
performance levels. This is especially important during periods of prolonged storage.
WARNING! Do NOT use the Humminbird charger with other manufacturers' batteries. The
Humminbird charger is only compatible with Humminbird batteries. If you have questions, please
see our Web site at humminbird.com or contact Humminbird Technical Support.
NOTE: Some international models may not include a battery or battery charger.
1
532503-2_A
