Power Supply Cord

WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use a new 40 amp power supply cord.
Plug into a grounded outlet.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Disconnect power.

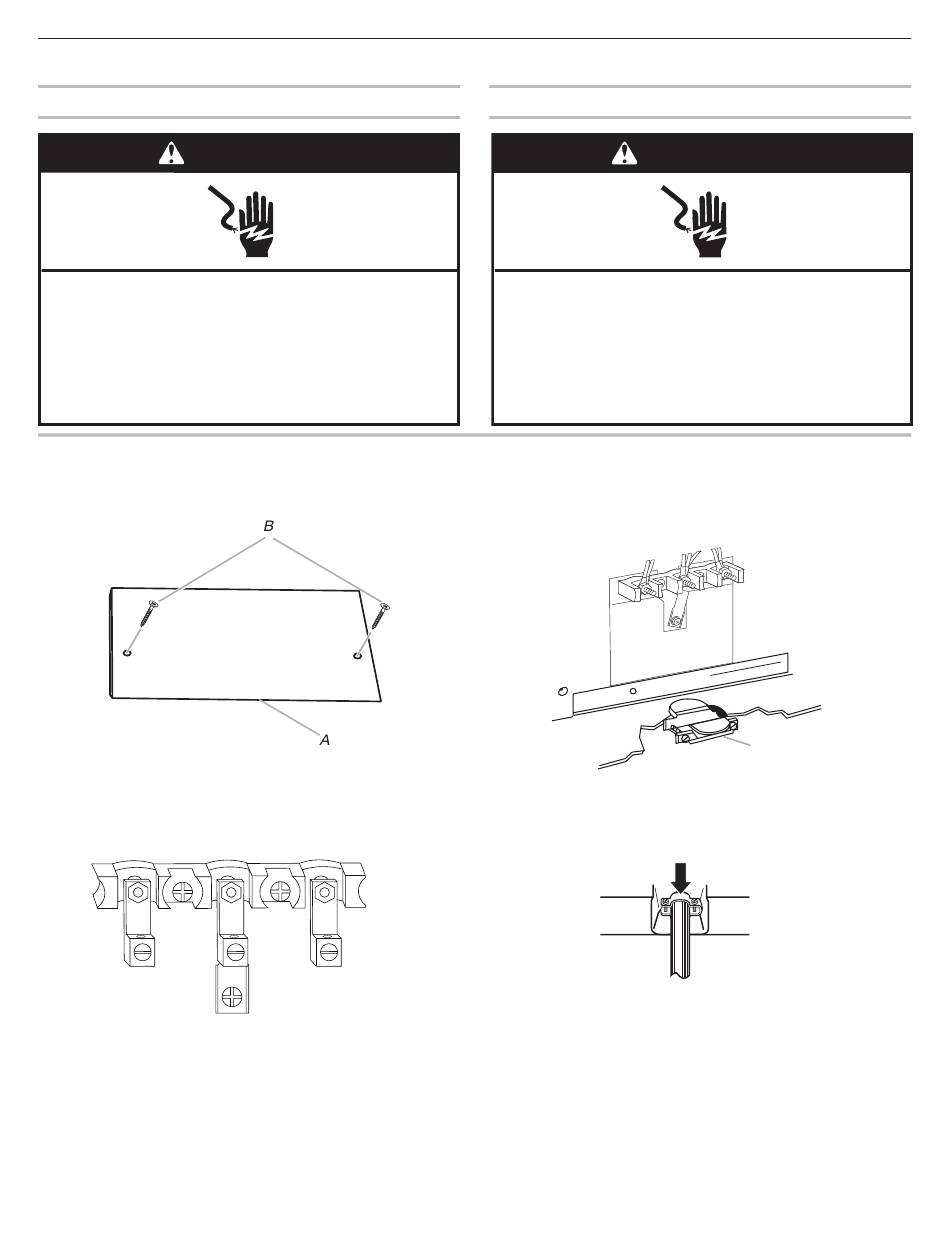

2. Remove the terminal block cover screws located on the back
of the range.
A. Terminal block cover
B. Phillips screws (2)
Remove the top 10-31 hex nut and lugs from each of the 3
terminal blocks and set aside.
8

Electrical Connection - U.S.A. Only

Direct Wire
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge copper or 6 gauge aluminum wire.
Electrically ground range.
Failure to follow these instructions can result in death,
fire, or electrical shock.
3. Add strain relief.
Style 1: Power supply cord strain relief
Assemble a UL Listed strain relief in the opening that is
centered beneath the conduit bracket.
A. UL Listed strain relief
Tighten strain relief screw against the power supply cord.
A
