TOOLS NEEDED FOR INSTALLATION
• Saber Saw or Jig Saw
• Drill
• 1 1/4" Wood Drill Bit
• Scissors
• Pliers
• Phillips Screwdriver
• Flat Blade Screwdriver
• Wire Stripper or Utility Knife
• Metal Snips
• Measuring Tape or Ruler
• Level
• Pencil
• Caulking Gun
• Duct Tape
PARTS SUPPLIED FOR INSTALLATION
• 1 Hardware Package
• 1 Literature Package
PARTS NEEDED FOR INSTALLATION
• 2 Conduit Connectors
• Power Supply Cable
• 1 Wall or Roof Cap
• All Metal Ductwork
OPTIONAL ACCESSORIES AVAILABLE
• Charcoal Filter Kit
For recirculating installations only,
replace charcoal filters as needed
part # FILTER1
• Recirculating Kit (4" tall recirculation grill + charcoal filter)
- part# DUCTGRT24 for Magnum 24"
- part# DUCTGRT30 for Magnum 30"
- part# DUCTGRT36 for Magnum 36"

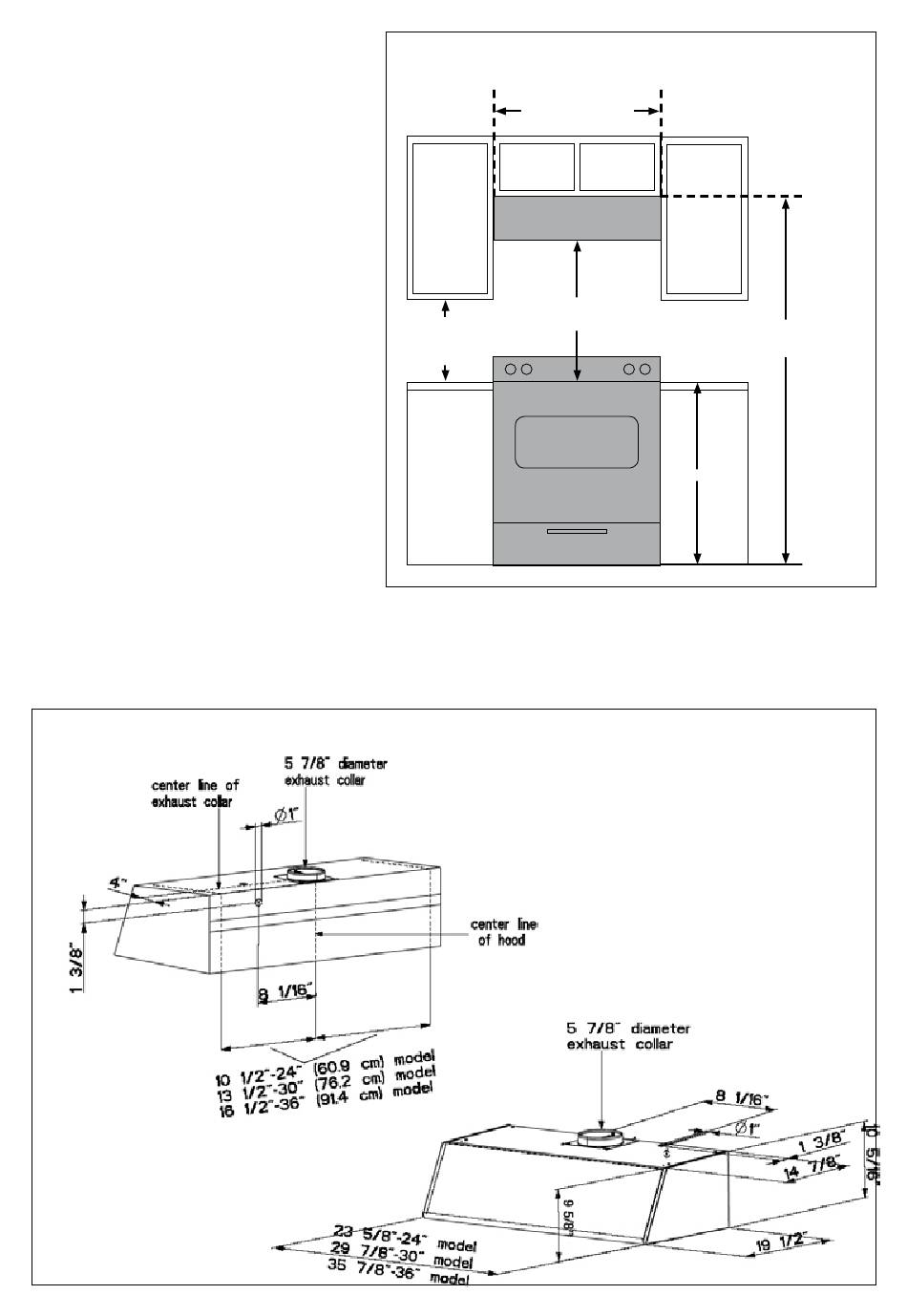

INSTALLATION CLEARANCES

24" or 30" or 36"
cabinet opening width
30" suggested maximum
18" minimum
bottom of hood to cooking surface
clearance upper
cabinet to
countertop

PRODUCT DIMENSIONS

24" minimum
36"
70
minimum
5/16"
76
maximum
5/16"
to bottom of cabinet frame
Version 09/12 - Page 4
