BASIC INSTALLATION WITH SPLITTER. 2 RISES

REMARKS
Configuring the entrance panel
Configure the entrance panel as the main panel:
Programming the telephones/connection bracket of the monitor in each dwelling
The telephone/connection bracket of the monitor in each dwelling must be programmed from the entrance panel of the building. See "Programming
instructions", page 18.
2 - W I R E

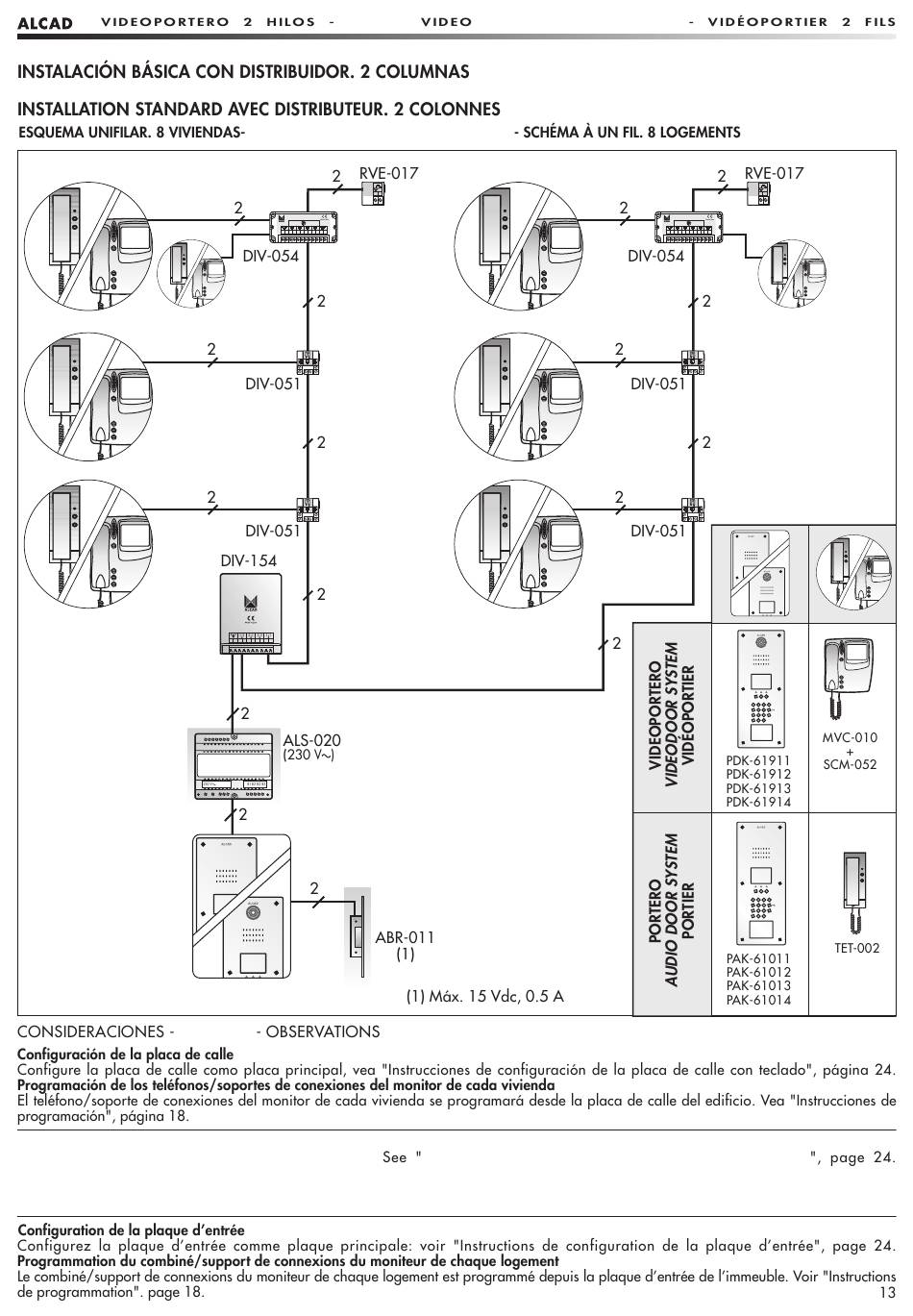

SINGLE-WIRED DIAGRAM. 8 DWELLINGS
END
B2 B1
DIV-054
cod.9730070
B1B2 B1B2 B1B2 B1B2 B1B2 B1B2
DIV-154
cod. 9730071
B1B2 B1B2 B1B2 B1B2 B1B2
D O O R E N T R Y
Entrance panel with keypad configuration instructions
S Y S T E M S
END
B2 B1
DIV-054
cod.9730070
B1B2 B1B2 B1B2 B1B2 B1B2 B1B2
