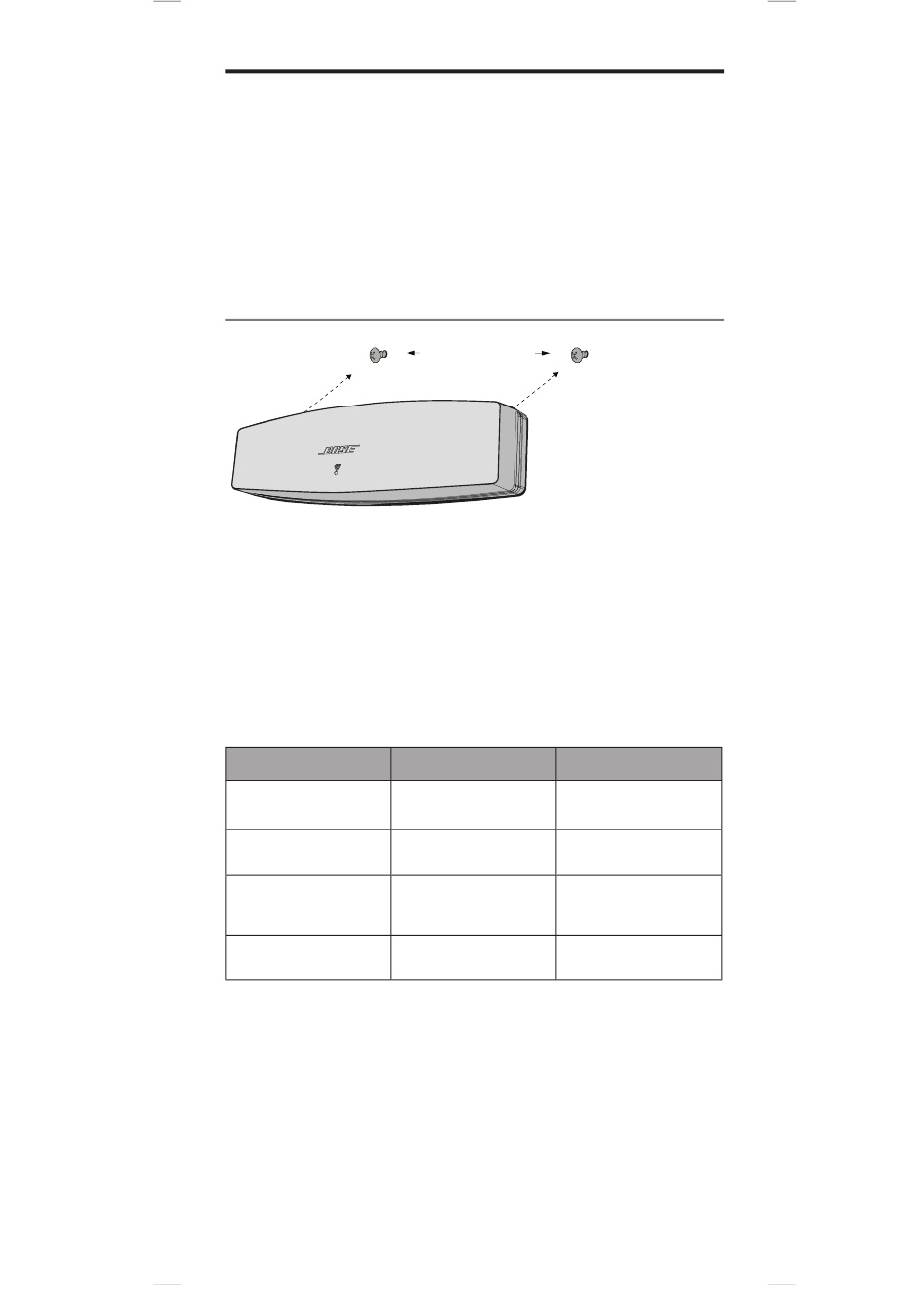

Wall mounting the adapter

You can mount the adapter on a wall (hardware not included).
See "Mounting hardware specifications" for the correct hardware.
If the mounting hardware instructions differ from these instructions,
follow the mounting hardware instructions.
There are two ways to mount the adapter:
• Vertically; connector panel facing left
• Horizontally; connector panel facing up

To mount the adapter

1. Drill two holes 6¼ in. (159 mm) center-to-center.
2. Insert plastic wall anchors (if mounting to wallboard).
3. Install pan-head wood screws.
Note: Leave the screw heads ¼ in. (6.35 mm) above wall
surface.
4. Position adapter onto the screws.
Mounting hardware specifications
Item
Wood
Wall thickness
1 in. (25.4 mm) or thicker
⅛ in. (3.17 mm)
Drill bit
Pan-head wood screws
#8x1¼ in. (32 mm)
(2)
Plastic wall anchors (2)
Not used
10 - English
6¼ in. (159 mm)
center-to-center
Wallboard
in. (9.5 mm) or thicker
³
/
in. (4.76 mm)
16
#8x1¼ in. (32 mm)
#6-8x1 in. (25.4 mm)
