1. Motor
2. Spindle
3. Motor flange
4. Spindle sleeve
5. Spacers
6. Flange nut
7. Diamond disc
8. Protective cover
9. Handle
ENGLISH

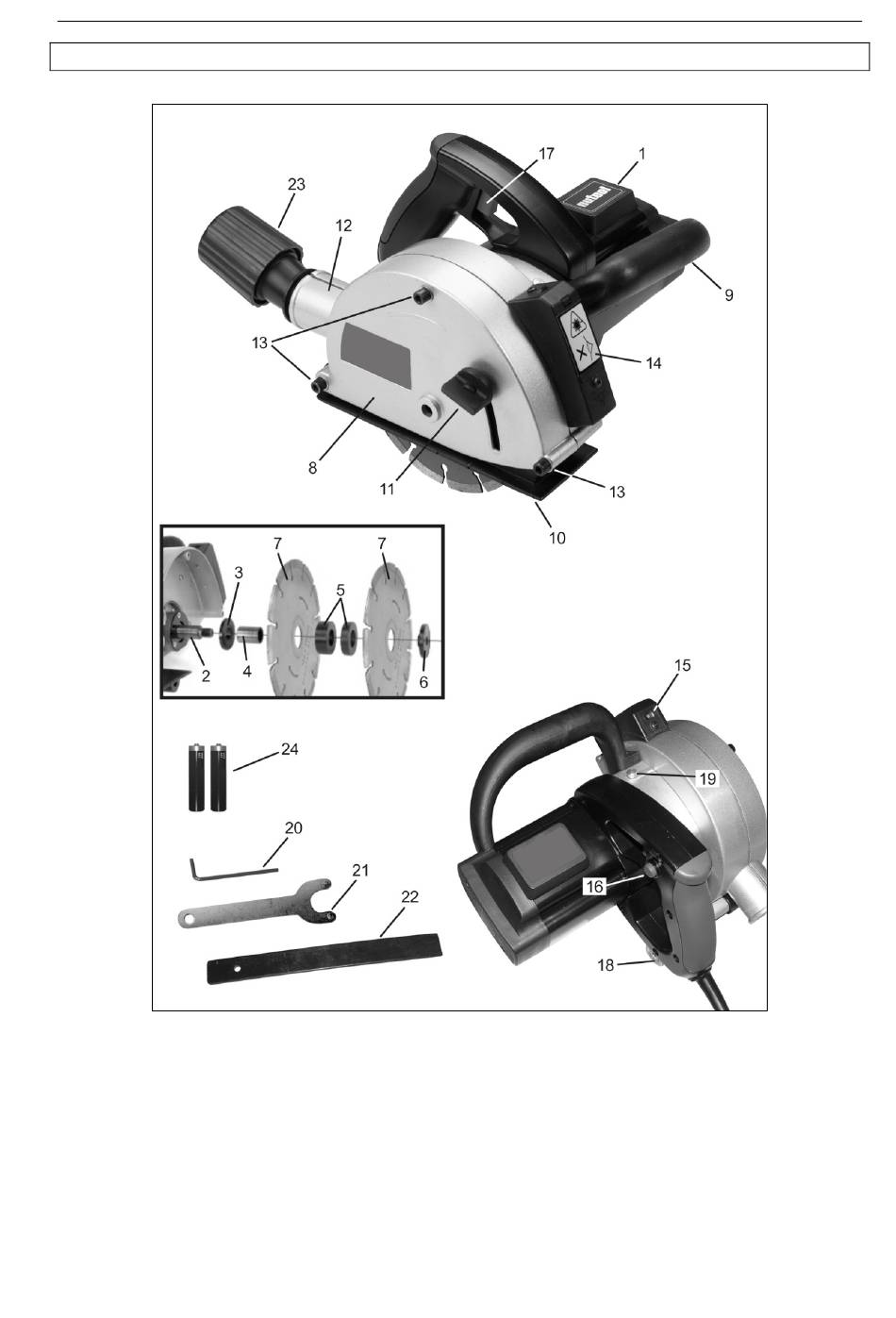

DESCRIPTION
10. Sliding depth stop
11. Clamping screw for sliding
depth stop
12. Dust extraction port
13. Hex screw
14. Laser unit and battery
compartment
15. Power switch, laser
16. Power switch lock
39
17. Power switch
18. Support roller
19. Spindle lock button
20. Hex key
21. Spanner
22. Chisel
23. Adapter for dust
extraction
24. Batteries
