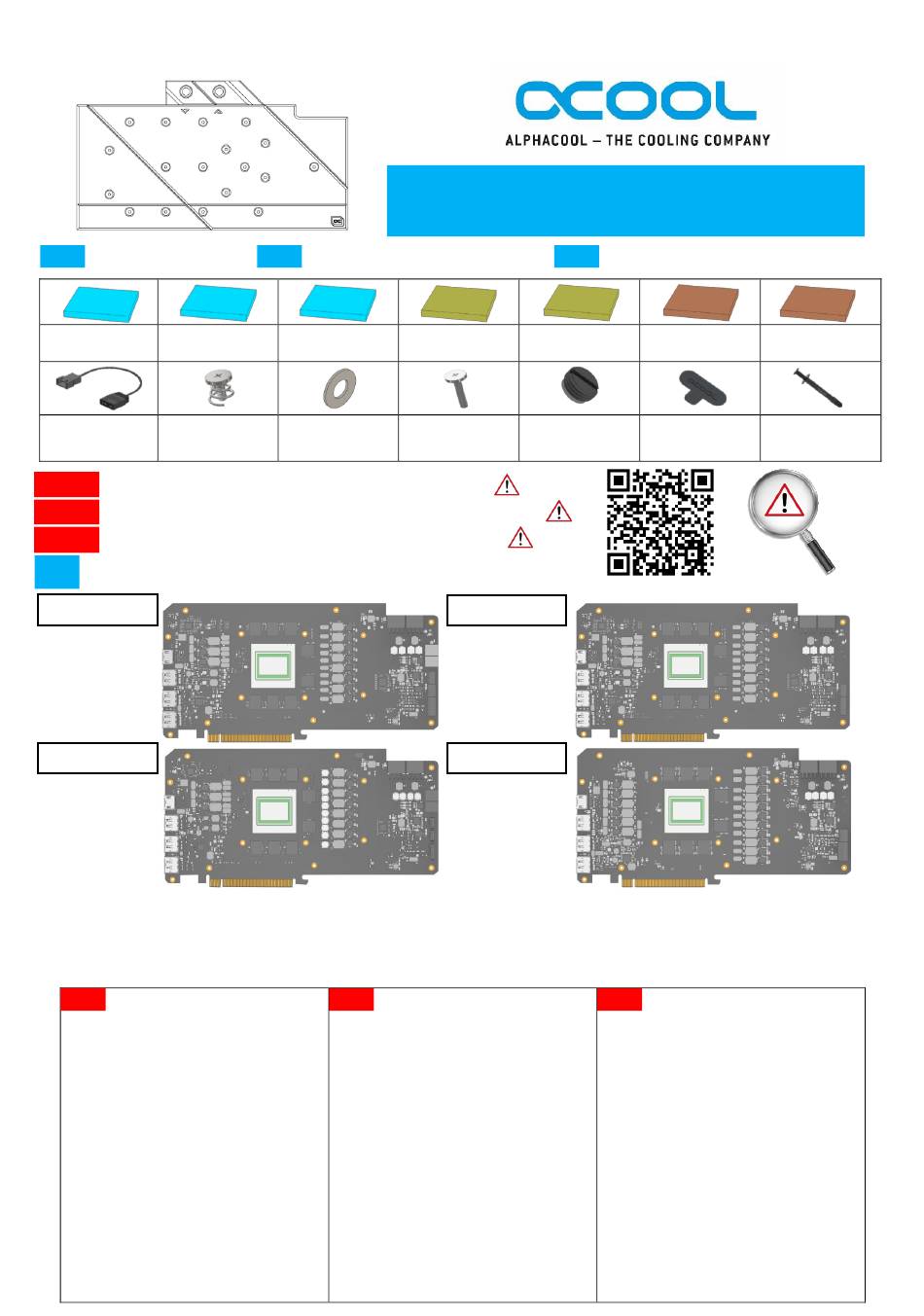

ACCESSORIES
EN
N
2
1
1x
3x
8x66x1mm pad
15x51x1mm pads
1x
6x
Digital–RGB
M2x5 screws
adapter
Read the safety instructions before starting the installation.
EN
Lesen Sie die Sicherheitshinweise, bevor Sie mit der Installation beginnen.
DE
Lisez les instructions de sécurité avant de commencer l'installation.
FR
1.
Strix RX 6800
Strix 6800 XT
Put the hardware on an antistatic mat. Begin
EN
dismantling the original cooler. Depending
on the structure of the cooler, remove the screws at the
back of the card and carefully unhook the fan connector
first. If the original cooler uses thermal glue, extreme
care should be taken as you can easily damage parts.
Pick up all the items carefully. Next, clean the hardware
of thermal paste or pad residues with a solvent (e.g.
isopropanol alcohol).
Before starting the cooler assembly, compare your card
with the picture above. The cooler is constructed
specifically for this layout. Occasionally, graphics card
manufacturers may revise the design of their card
slightly, causing the cooler not to fit on later models.
During assembly, please make sure taller parts have
enough space around them and that the cooler does not
damage your graphics card.
Alphacool International GmbH is not liable for
assembly errors occurring due to negligence, such as
selecting an incompatible cooler.
Alphacool Eisblock Aurora Acryl GPX-A Radeon RX
ZUBEHÖR
DE
3
1x
8x100x1mm pad
30x30x3mm pad
6x
M2x5 washers
M2x11 screws
Legen Sie die Hardware auf eine
DE
antistatische Unterlage. Beginnen Sie mit
der Demontage des Original-Kühlers. Je nach Aufbau
des Kühlers sind zuerst die Schrauben des Lüfters zu
entfernen und die Blenden zu lösen. Bei aufgeklebten
Kühlern ist äußerste Sorgfalt geboten. Es können leicht
Bauteile abgerissen werden. Heben Sie alle Einzelteile
sorgfältig auf. Reinigen Sie anschließend die Hardware
von Resten der Wärmeleitpaste oder Pads mit einem
Lösemittel (z.B. Isopropanol-Alkohol).
Bevor Sie mit der Montage des Kühlers beginnen,
vergleichen Sie Ihre Platine mit dem vorliegenden Foto.
Der Kühler wurde speziell für dieses Layout konstruiert.
Es kommt vor, dass Grafikkartenhersteller über
Revisionen den Aufbau leicht abändern und damit der
Kühler auf spätere Modelle nicht mehr passt. Achten
Sie auch bei der Montage darauf, dass hohe Bauteile
frei liegen und der Kühler die Grafikkarte nicht
beschädigt.
Alphacool International GmbH haftet nicht bei
fahrlässigen Montagefehlern, wie die Wahl eines
inkompatiblen Kühlers.
6800/6800XT Strix/TUF incl. Backplate
FR
5
4
1x
3x
15x51x3mm pads
6x
2x
Screw plugs
Tuff RX 6800
Tuff 6800 XT
FR
refroidisseur d'origine. Selon la configuration du
radiateur les vis du ventilateur et les caches doivent être
enlevés d'abord. S'il s'agit d'un refroidisseur collé il
faut travailler très doucement. Sinon des composants
peuvent s'arracher. Conservez tous les pièces
soigneusement. Ensuite, nettoyer le matériel de résidus
de la pâte thermique ou de pads avec un solvant (alcool
isopropanol par ex.).
Avant de commencer l'installation merci de vérifier que
votre carte ressemble bien a celle sur l'image. Le
refroidisseur a été conçu spécialement pour cette
disposition des composants. Il est possible que le
fabricant change des détails dans la disposition de ses
composants lors d'une révision et que le bloc de
refroidissement ne soit plus compatible. Veillez lors de
l'installation au fait que les composants hauts ne
touchent pas le bloc de refroidissement et que le bloc
n'endommage pas la carte graphique.
Alphacool International GmbH n'est pas
responsable ni des erreurs d'installation ni du choix
d'un refroidisseur incompatible.
ACCESSOIRES
6
7
1x
1x
8x66x2mm pad
8x100x2mm pad
1x
1x
Plug tool
Thermal grease
Posez le matériel sur un tapis antistatique.
Commencez par le démontage du
