ASSEMBLY INSTRUCTIONS (CONT'D)

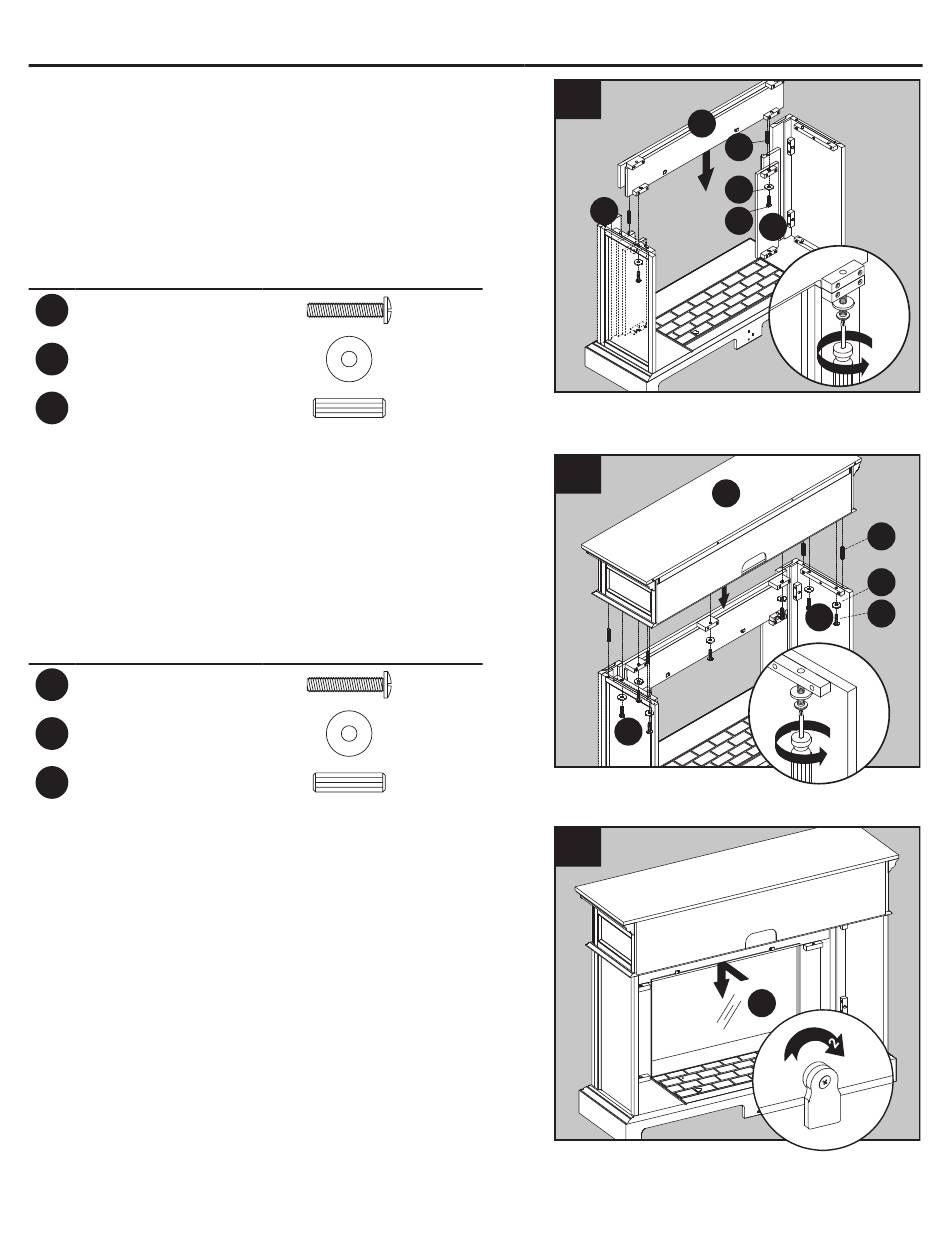

3. Insert two wooden dowels (CC) into the top
middle holes on both left front panel (E) and right
front panel (F). Carefully position the center
panel (G) into place between left front panel (E)
and right front panel (F). Secure each side with
one washer (BB) and one long bolt (AA).
Hardware Used
Long Bolt
AA
Washer
BB
Wooden Dowel
CC
4. Insert two wooden dowels (CC) into the top
outer holes on both left wall (C) and right wall
(D). Attach top (A), securing from underneath
with seven washers (BB) and seven long bolts
(AA).
Hardware Used
Long Bolt
AA
Washer
BB
Wooden Dowel
CC
5. From behind the assembly, attach the fireplace glass
front (L), lowering it into the front groove on base (J).
Secure the Glass by turning the pre-assembled
plastic knobs.
3
F
x 2
x 2
x 2
4
x 7
x 7
x 4
5
9
G
CC
1
BB
AA
E
A
1
D
1
L
2
CC
BB
AA
C
2
