Napoleon GI-RB3 Instructions D'installation

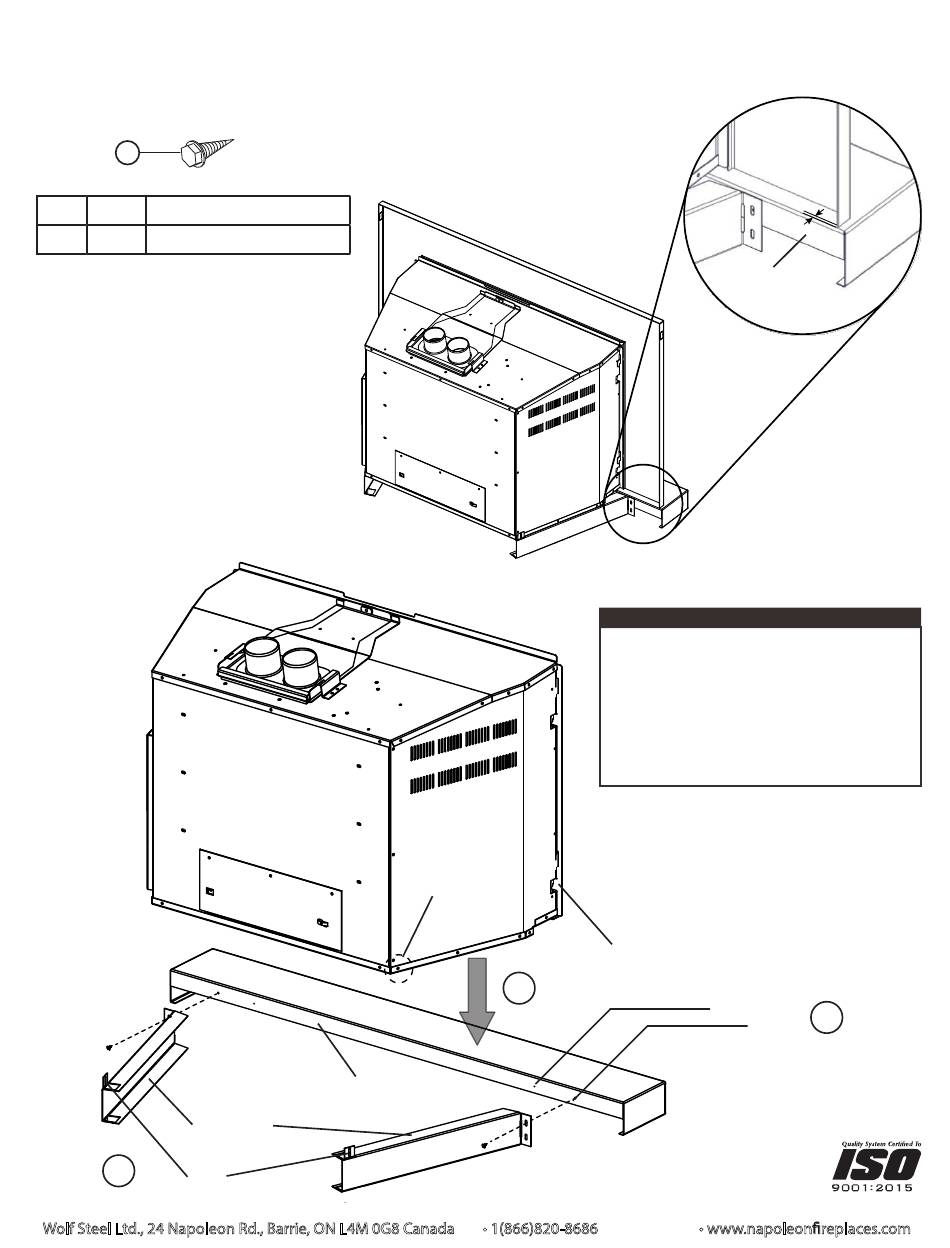

GI-RB3/4 Riser Kit Installation Instructions
Hardware Included:
1
1
Ref. Qty. Description
1 2 9-14 x 1/2 screws
1. Bend up the 2 tabs on each riser rail,
as shown below.
2. Using 2 screws (supplied), secure
the riser rails to the hearth using the
specified holes for your model.
3. Remove the 2 existing screws (1 per
side) from the appliance. Lower the
appliance onto the riser assembly,
and then reinstall the 2 screws.
Riser Rails
1
Tabs
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 0G8 Canada
2
Existing Screw
Hearth
note:
When the appliance is placed onto the
riser assembly, try to maintain a 1/4" space
between the back edge of the hearth and
rear face of the side of the appliance.
The flashing trim should sit flush with the
back edge of the hearth.
Rear Face
3
• 1(866)820-8686
1/4"
Flashing
Trim
GDIX4 Illustrated
GDI/G/X3
2
GDIX4
W415-1857 / 08.02.18
