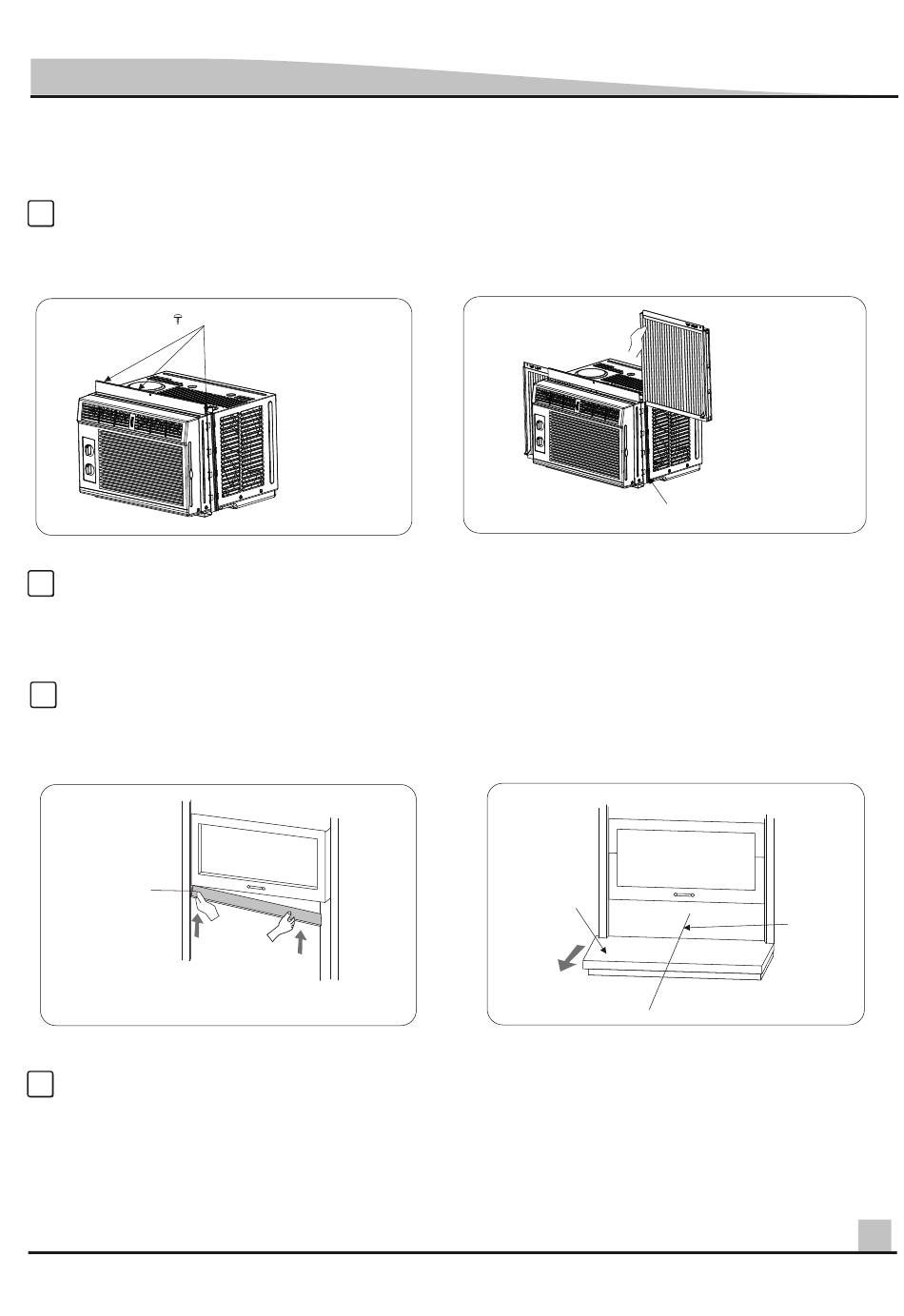

PREPARATION OF CHASSIS

1 1 UPPER GUIDE
Fasten the upper guide(ITEM E) on the top of the air conditioner with 3 screws (ITEM A) as shown in
FIG.5.
ITEM A
2 2
SIDE CURTAINS
Pull the curtains and make them fit into the T shape groove from the top down, then insert and push the
frame into the guides of the air conditioner, as shown in FIG.6.
3 FOAM STRIP
Cut the adhesive-backed foam strip(ITEM F) to the window width. Remove the backing from the foam
strip and attach the foam strip to the underside of the bottom window. (FIG.7)
FOAM STRIP
(ITEM F)
LOCATE THE UNIT IN WINDOW
4
Open the window and mark center line with pencil on the center of the inner sill, as shown in FIG.8.
FIG.5
INNER SILL
FIG.7
T SHAPE GROOVE
ROOM SIDE
INSTALLATION
FIG.6
CENTER
LINE
FIG.8
