INSTALLATION
UNIT INSTALLATION
Caution: During the following step, hold unit firmly until window sash is lowered to
top channel behind side panel frames. Personal injury or property damage may result
if unit falls from window.

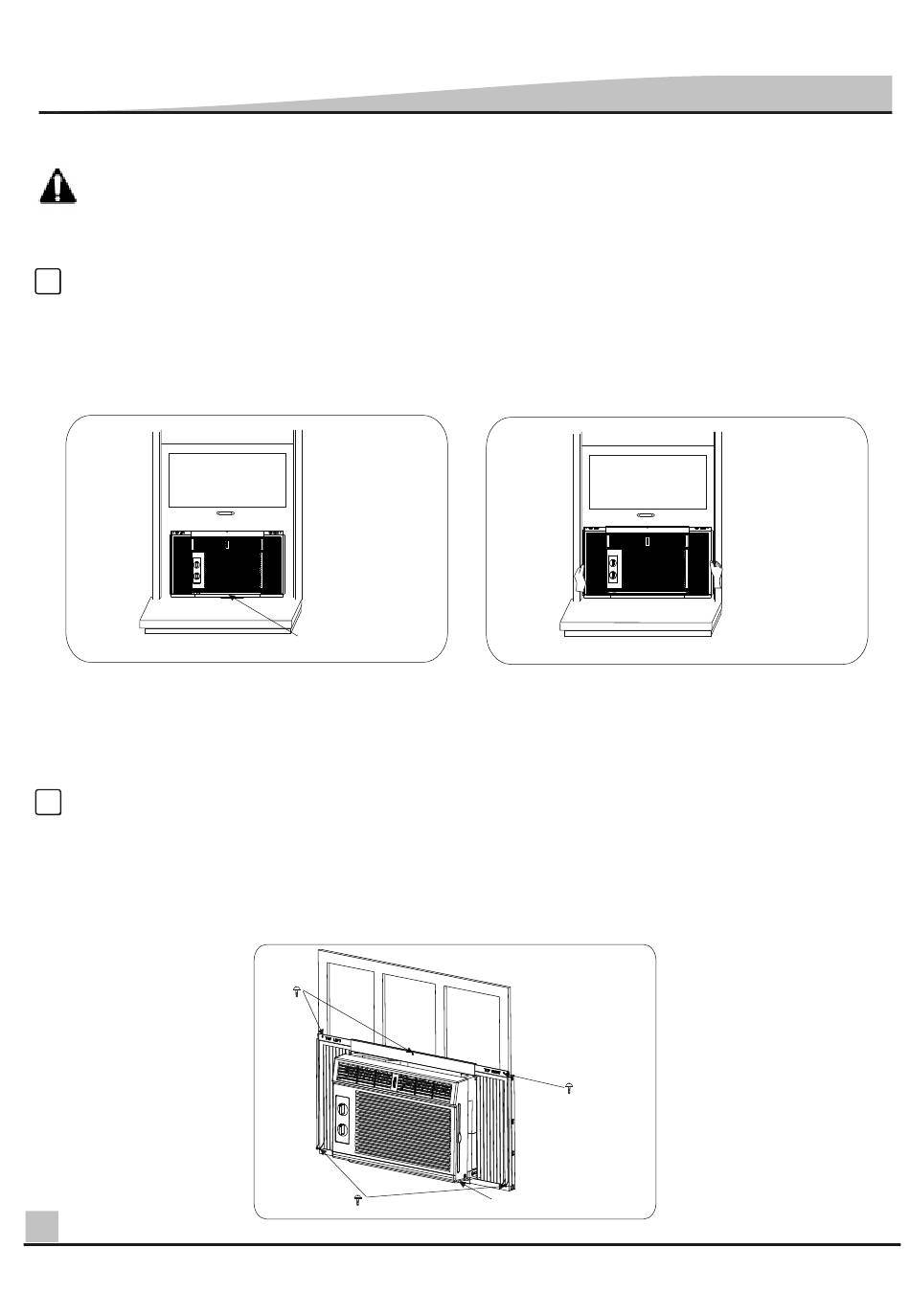

INSTALL THE AIR CONDITIONER ON THE WINDOW
1
Carefully lift the air conditioner and slide it into the open window. Make sure it is put in the center of the
window as shown in FIG.9.
While steadying the air conditioner, carefully bring the window sash down behind the upper guide of the
air conditioner. Extend the guide panels to fill the window opening , as shown in FIG.10.
When the air conditioner is properly installed, it should tilt slightly down at the back. If it is set correctly
in the window, it will hang lower in the back automatically. If it does not, there is a problem with the
installation.
SECURE THE GUIDE PANELS
2
Fasten the top of the
of the guide panels to the sill
Finally, inset the foam seal (ITEM G) in the space between the window sill and the bottom of the
air conditioner. As shown in FIG.11.
10
10
FIG.9
CENTER LINE
guide panels
to the sash with 3 screws
with 2 screws
ITEM B
ITEM B
(ITEM B),then fasten the lower part
(ITEM B),as shown in FIG.11.
ITEM B
FIG.11
ITEM G
FIG.10
