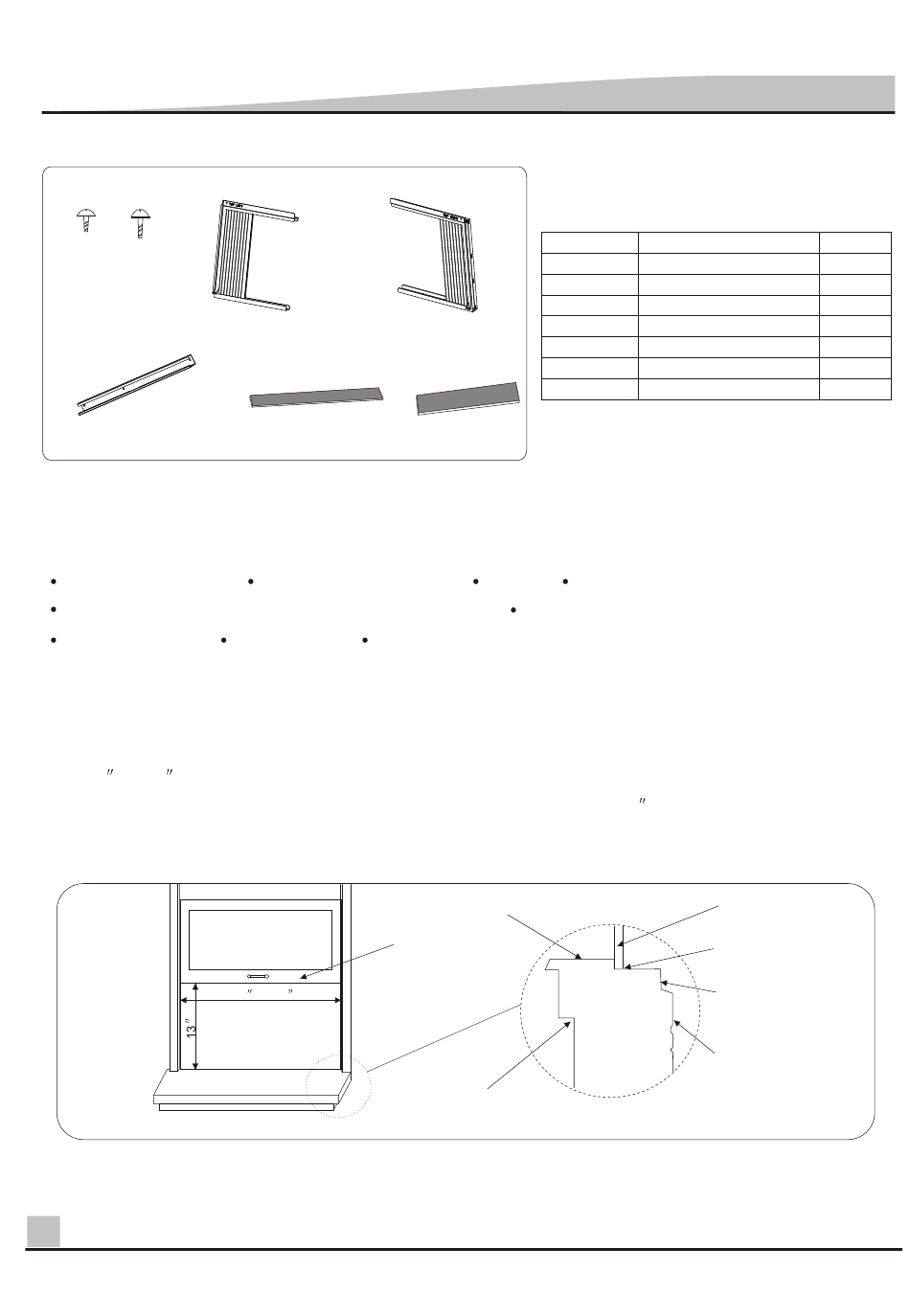

INSTALLATION
A
B
E
Attention: For detailed content of accessories, please take our package as major reference.
REQUIRED TOOLS:
Tight fitting gloves
3/8-inch open end wrench or adjustable wrench
Tape measure
WINDOW REQUIREMENTS
This air conditioner will be installed into standard double hung windows with actual clear opening widths
of 23 to 37 (about 920mm to 580mm).(FIG.4).
Lower sash must open sufficiently to allow a clear vertical opening of 13 (about 325mm). Side louvers
and the rear of the air conditioner must have clear air space to allow enough airflow through the
condenser for heat removal. The rear of the unit must be outdoors, not inside a building or garage.
8 8
C
F
FIG.3
Standard screwdriver
Electric drill
1/4-inch drill bit
Sash
23 to 37
D
ITEM
G
Pliers
Sharp knife
1/4-inch hex socket and racher
Inner sill
Interior wall
NAME OF PARTS
SCREW(ST4X10FT)
A
B
SCREW(ST4X16FT)
C
GUIDE PANEL(LEFT)
GUIDE PANEL(RIGHT)
D
UPPER GUIDE
E
FOAM STRIP(Adhesive backed)
F
FOAM STRIP(Not adhesive backed)
G
Window
Offset
Sill
Exterior
Q'TY
3
5
1
1
1
1
1
FIG.4
