I N S TA L L AT I O N
15
Installation
STEP 4: Incorrect wiring will result in reverse polarity or high reverse voltage, in the event
this happens, the ProTournament elite Charger has been designed to not fail as a result,
however it will cause the charger to "internally disconnect" and provide "no output" until the
(reverse polarity caused by putting the "red" + lead on a - negative battery terminal) and or
the (high reverse DC voltage caused by taking one bank cable and spreading it across two
batteries) is corrected, using the wiring diagrams as shown on pages 16-24. In the event
of a reverse polarity connection, an improper battery connection or if an output is not connected
to a battery the appropriate red battery bank trouble LED will illuminate identifying the battery
and wiring connections where a fault is present. See page 28 for further details.
cable jacket
If your application is for 4D or 8D large capacity batteries, please refer to ProMariner's website
www.promariner.com and view our ProNauticP Hardwired Charger Assortment for a model that is
correct for this group size of batteries.
black (-)
red (+)

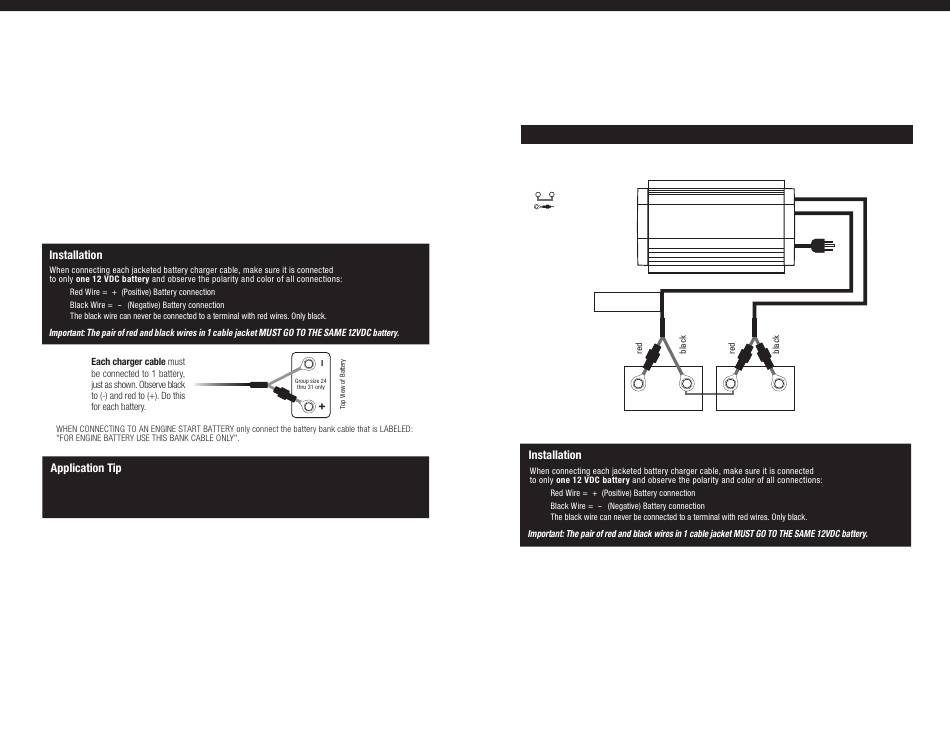

Typical Wiring
Fig. 1 ProTournament240 elite & ProTournament360 elite Dual for 2 12V Batteries
Dedicated 24 VDC trolling motor battery configuration
with (2) 12 VDC batteries connected with a series jumper
Note:
Indicates jumper series
Indicates fuse
ProTournament elite
Dual Bank
For engine battery use
cable 2
this bank cable only
_
bat 2
+
Two 12 VDC batteries connected with a series
jumper for a 24 VDC trolling motor
Note 1: One bank cable connects to no more than one battery
Note 2: ProTournamentelite is designed to be used with group 24, 27, 29, 30 and 31 batteries
W I R I N G D I A G R A M S
16
cable 1
Top view
_
bat 1
of battery
+
