Installation/Removal of the unit

• Installation:

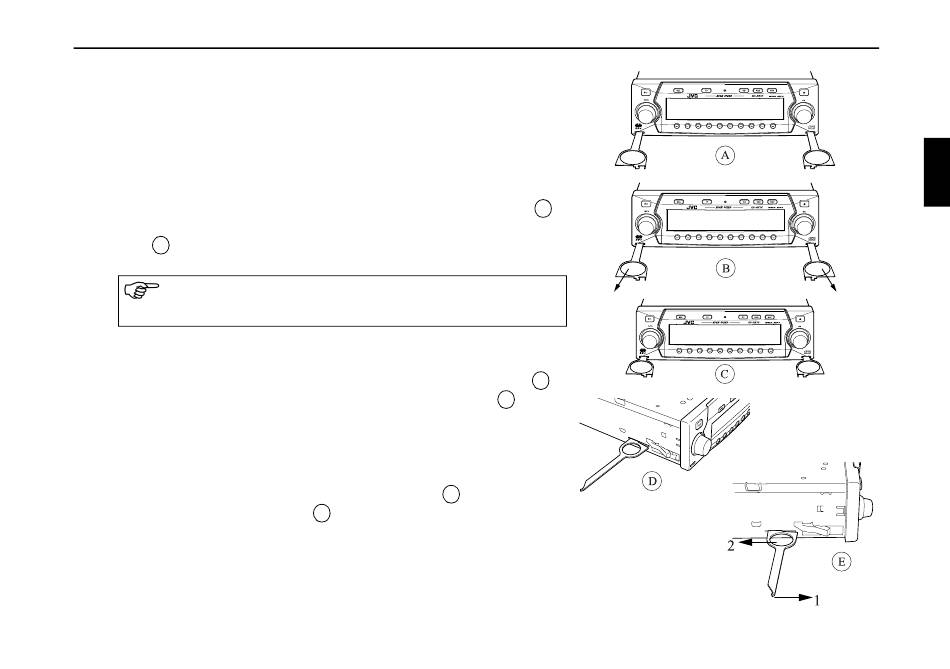

A universal bracket for DIN installation slots is integrated into this
unit. An installation frame is not required. The unit is inserted into
the installation slot and secured with the slides supplied.
To install, complete all electrical connections. Then push the unit
into the installation slot. Subsequently, insert slides into the open-
ings on the front of the unit until the first detent position (Fig.
Now lock the radio in by pulling on both slides as shown in Fig.
. Subsequently, remove the slides.
B
The installation angle of the unit must not exceed 0° - 35° (ver-
tical).
• Removal:
To remove the unit, it must first be unlocked. To do this, push in
both slides to the second detent position as shown in Figure
Subsequently, withdraw the unit with both slides (Fig.
remove the slides by pressing the springs on the right and left sides
of the unit.
If the unit was previously installed in another vehicle, it may be
necessary to adjust the springs on the unit before installation. To
adjust the springs, insert slide as shown in Fig.
ly adjust as shown in Fig.
1 while at the same time moving the slide in the direction of 2).
and subsequent-
D
(gently press slide in the direction of
E
