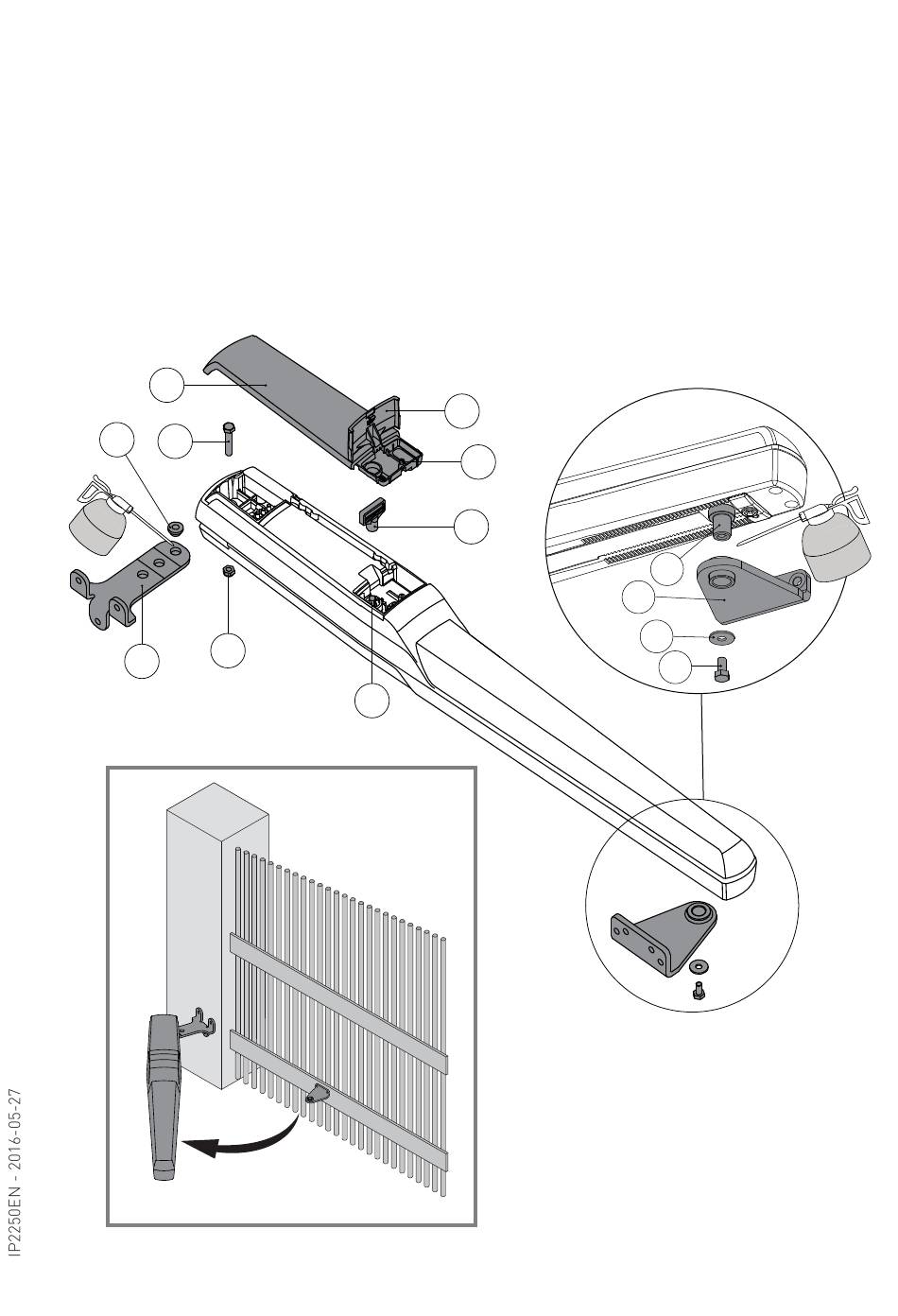

6.4 Gearmotor installation

• Open the release lock hatch [8], loosen the screw [9] and remove the rear cover [7].
• Release the piston by inserting the key [10] in the appropriate pin [11] and turn it counter-clock-
wise as indicated by the arrow.
• Insert the rear bushing [18] into the hole of the rear bracket [13] and lubricate the pivot points.
• Fix the piston to the rear bracket, fully tightening the M8x45 screw [19] to nut [20].
• Open the wing manually and insert the front mounting pin [15] into the hole of the front fastening
bracket [14]; block the pin in the bracket using the washer [16] and the M8x16 screw [17] supplied.
• Moving the gate manually, check that the entire stroke takes place without interference.
7
18
19
20
13
8
9
10
11
33
15
14
16
17
