Paradox IMPERIAL DIGIPLEX EVO R910 Guide Rapide

R910-TI04

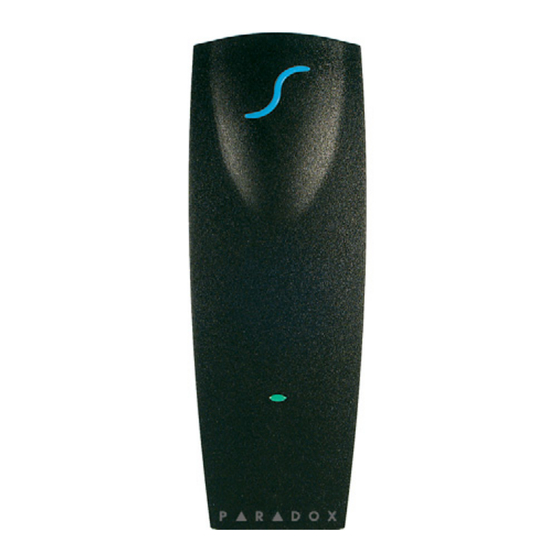

4-Wire Indoor/Outdoor Proximity Reader
Printed in Canada 09/2018
English
Technical Specifications
Power Input:
Current Consumption
Frequency:
Operating Temperature:
Output Formats:
Cable Distance:
Cables:
Compatibilities:
All specifications are subject to change without notice.
Tricolour LED Display
The R910 reader includes a tricolour LED display (red, green and
amber) that is used to indicate the reader's status. The LED's inten-
sity is adjusted through the Access Control Module (ACM).
Audible Tone
The R910 reader includes a built in beeper with a frequency that is
adjusted through the ACM.
Weather Resistant
Mount indoors or outdoors.
Error Display
All R910 readers display communication errors between the reader
and the ACM by flashing the amber LED every second.
Firmware Upgrade
Connect the CV4USB as shown in Figure 2. Refer to the CV4USB
installation manual for additional information.
Mounting on Metal
Metal may decrease the read range. The R910 card reader can be
mounted on metal but do not surround it by metal. If the reader must
be installed in a metal enclosure, ensure that the face of the card
reader is not covered and that there's at least 4cm (1.6") between
the card reader and the metal on all sides.
Warranty
For complete warranty information on this product please refer to the Limited Warranty Statement
found on the website www.paradox.com/terms. Your use of the Paradox product signifies your
acceptance of all warranty terms and conditions
© 2018 Paradox Security Systems Ltd. All rights reserved. Specifications may change without prior
notice. One or more of the following US patents may apply: 7046142, 6215399, 6111256, 6104319,
5920259, 5886632, 5721542, 5287111, 5119069, 5077549 and RE39406.
Digiplex EVO is a trademarks or registered trademark of Paradox Security Systems Ltd. or its affiliates
in Canada, the United States and/or other countries. For the latest information on products approvals,
such as UL and CE, please visit www.paradox.com.
R910 V4.50
PARADOX.COM
11Vdc to 14.5Vdc
100mA, with card 115 mA
Exciter field 125 KHz pulse modulated
-35°C (-31°F) to +65°C (149°F)
RS-485
300m (1000 ft.)
4-wire Cables (twisted pair recommended)
Access Control Module (ACM) Series

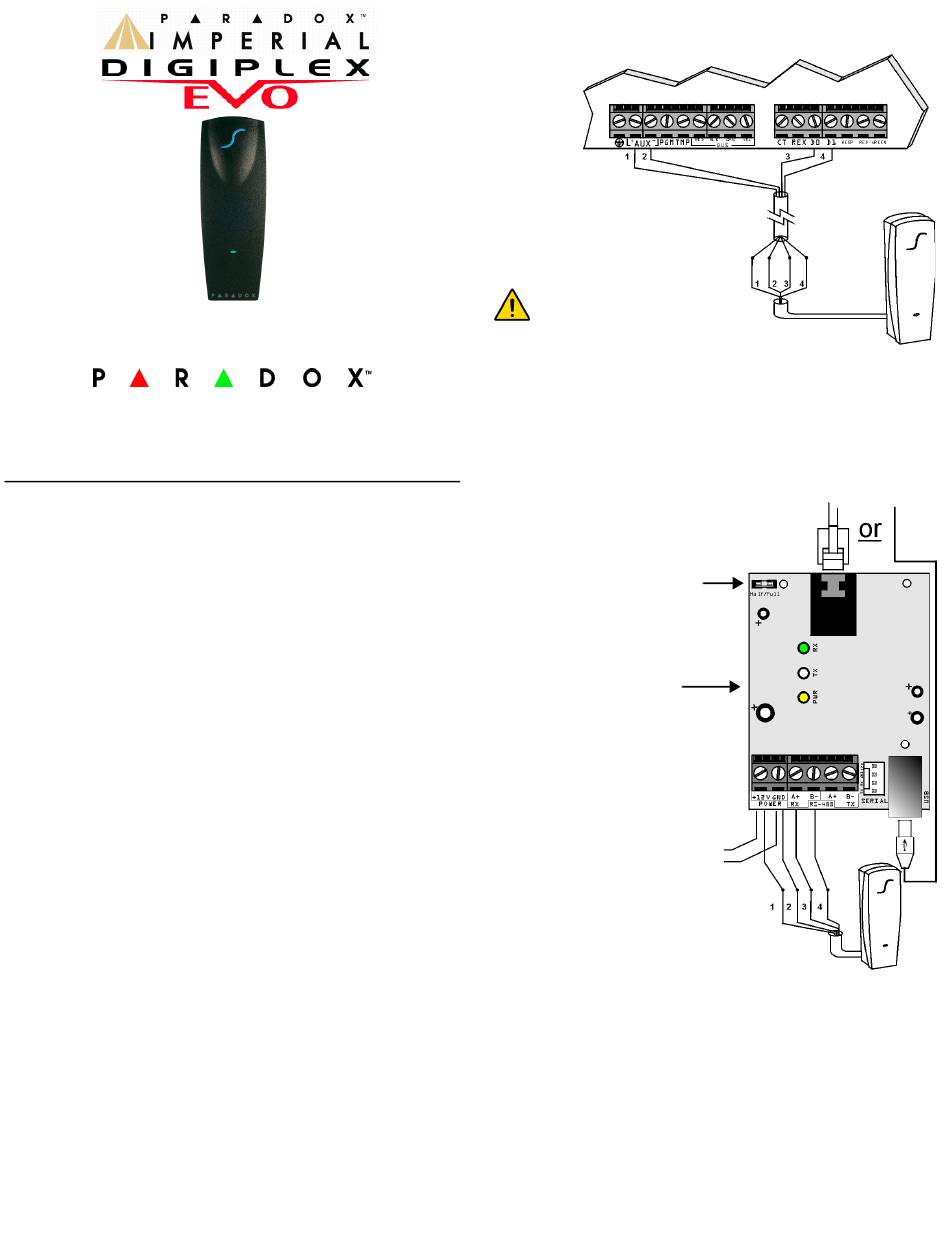

Figure 1: 4-wire Connection / Conexión de 4 Cables
/ Raccordement à 4 fils
1. Red / Rojo / Rouge
2. Black / Negro / Noir
3. Green / Verde / Vert
4. White / Blanco / Blanc
Do not connect more than one
R910 on a single ACM.
No conectar más de un
R910 por cada ACM.
Ne pas raccorder plus d'un
R910 sur un seul ACM.
Figure 2: Firmware Upgrade / Actualización del Firmware /
Mise à niveau du micrologiciel
Jumper is ON.
El puente está ON.
Le cavalier est installé.
CV4USB
Supply / COMBUS
Alimentación / COMBUS
Alimentation / COMBUS
1. Red / Rojo / Rouge
2. Black / Negro / Noir
3. Green / Verde / Vert
4. White / Blanco / Blanc
RESIDENTIAL EQUIPMENT
CLASS B DIGITAL DEVICE
INFORMATION TO USER
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi-
tions: (1) This device may not cause harmful interference, and (2) This device must accept any inter-
ference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for Class B Digital Device, pursu-
ant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures.
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-
nected
• Consult the dealer or an experienced radio/TV technician for help
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
ACM12 shown
Se muestra el ACM12
ACM12 illustré
To computer
A una PC
Vers l'ordinateur
