GATE APPLICATION
INSTALLATION

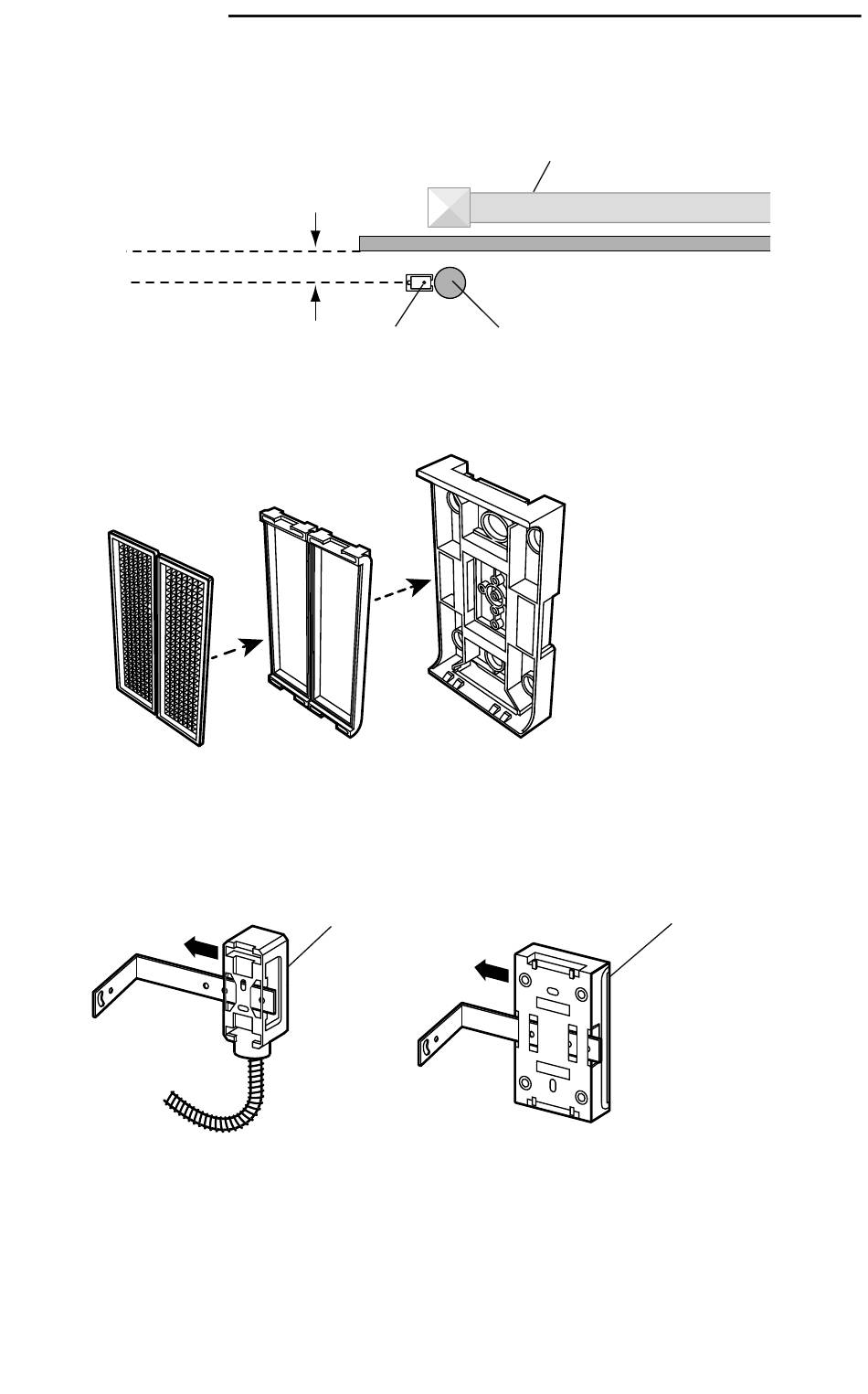

Install the photoelectric sensors and refl ector up to 5" (12.7 cm) maximum from the gate.
Wall or Fence
Edge of Gate Panel
5" (12.7 cm) max. gap
Invisible Light Beam
Photoelectric
Mounting
Sensor
Post
1. Assemble refl ector.
2. Slide the photoelectric sensor and the refl ector onto the mounting brackets and secure with self-tapping
screws provided.
Photoelectric Sensor
Refl ector
5
