MCS 20 – Power Supply Unit

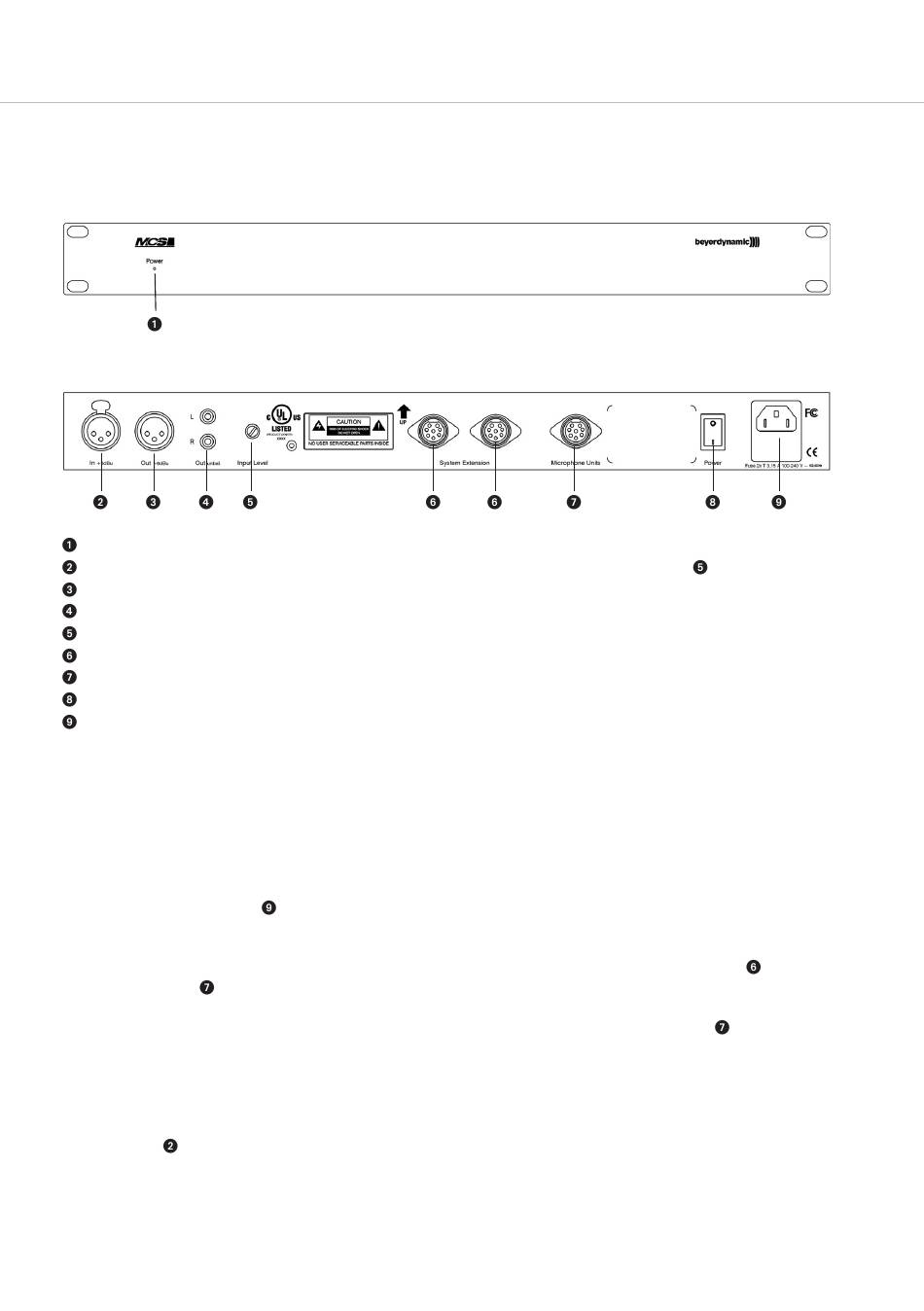

2.2 Controls and indicators

MCS 20 front view
MCS 20 rear view
Power on LED
Audio input, 3-pin XLR, balanced, ungrounded, adjustable via "Input Level" potentiometer
Audio output, 3-pin XLR, balanced, ungrounded
Line output, e.g. for recorders
Input level control
Connection for more power supply units / system extension
Connection for microphone units
On/Off switch
Power connection with fuse holder

2.3 Operation

Power connection
• Check whether the connection figures comply with the existing mains supply. Serious damage could occur due to
connecting the system to the wrong power supply.
• Make sure the power cable cannot be damaged or severed by sharp objects.
• Connect the MCS 20 power supply unit to the mains. Make sure the mains cable is firmly connected to the
MCS 20 power connection
Renk sockets
• The MCS 20 power supply unit provides Renk sockets to connect further MCS 20 power supply units
microphone units . Further microphone units can be connected to the individual power supply units. Refer also
to chapter 4. "Examples of a system configuration".
Note: Please make sure that the microphone units are connected to the appropriate connection
• Also please ensure that pin no. 8 of the Renk sockets is always grounded while in use, so that pin no. 3 of the
Renk socket has +24 V with reference to ground and pin no. 7 of the Renk socket has -24 V with reference to
ground.
Audio connections
• Audio input , 3-pin XLR socket, input, balanced, ungrounded; can be adjusted with the "Input Level" potentiometer.
The input signal is routed to the loudspeakers of the microphone unit and released via the audio output.
Connection:
1 = System ground (No connection to the protective earthing conductor to avoid hum!)
2 = +Signal
3 = -Signal
. The fuse holder contains a 3.15 AT fuse.
30
and
only.
