Multiplex SHARK RR Notice De Construction page 16

Partlist SHARK
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
Basic information relating to model aircraft

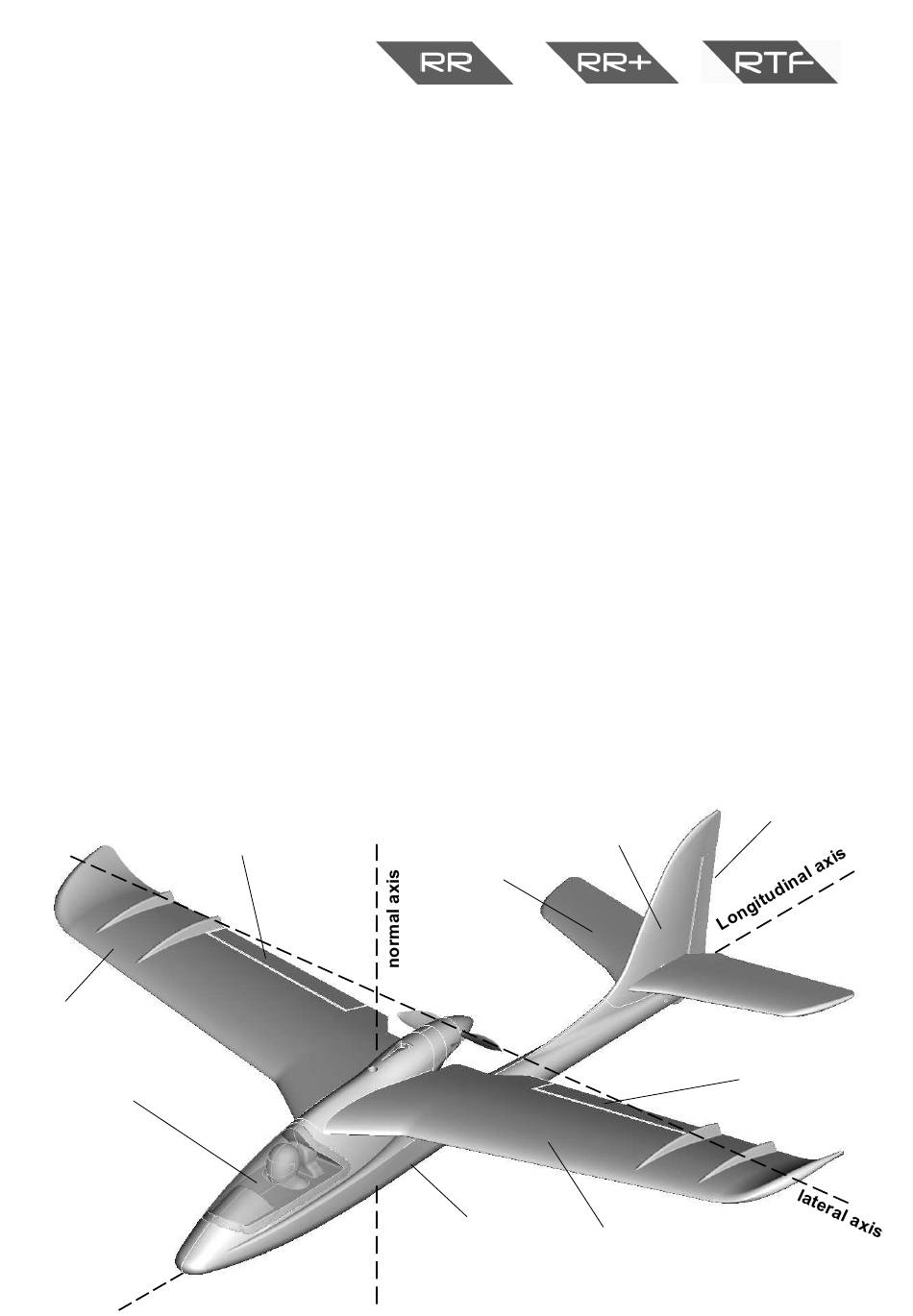

Any aircraft, whether full-size or model, can be controlled around the three primary axes: vertical (yaw), lateral (pitch) and longi-
tudinal (roll).
When you operate the elevator, the model's attitude alters around the lateral axis. If you apply a rudder command, the model swings
around the vertical axis. If you move the aileron stick, the model rolls around its longitudinal axis. As our SHARK has considerable
wing dihedral, ailerons are not required for roll control. In this case the rudder is used both to turn the model around the vertical axis,
and also to roll it (longitudinal axis). External infl uences such as air turbulence may cause the model to deviate from its intended
fl ight path, and when this happens the pilot must control the model in such a way that it returns to the required direction. The basic
method of controlling the model's height (altitude) is to vary motor speed (motor and propeller). The rotational speed of the motor
is usually altered by means of a speed controller. Applying up-elevator also causes the model to gain height, but at the same time
it loses speed, and this can only be continued until the model reaches its minimum airspeed and stalls. The maximum climb angle
varies according to the power available from the motor.
R.H. wing
panel
Canopy
16
Quantity Description
1 Canopy
1 Fuselage and fi n
1 Left-hand wing panel
1 Right-hand wing panel
1 Left-hand tailplane panel
1 Right-hand tailplane panel
1 Plastic wing retainer screw
2 Hook-and-loop tape, hook
2 Hook-and-loop tape, loop
1 Screwdriver
1 Allen key
1 Battery, 3S / 950 mAh (only RR+ / RTF)
1 RX5 receiver, ID 9 (only RR+ / RTF)
1 Smart SX with manual (only RTF)
1 AA-size dry cell (only RTF)
1 Plug-type battery charger
Aileron
# 26 4286 # 26 4287 # 26428/8/9
MULTIcharger L-703 EQU
Elevator
Fuselage
Rudder
Fin
Aileron
L.H. wing
panel
(only RTF)
