7.1.3 Installing the eyepieces

1. Insert both eyepieces into the tubes of the optical
head. (Fig. 5)

7.1.4 Installing the lamp housing

1. Insert the lamp house and tighten the fixing
screws ①. (Fig. 6)
7.1.5 Installing the filter holder
The microscope is equipped with a filter holder
located on the back side of the microscope. (Fig.
7).
The filter holder has three positions: ② filter
holder for color filters, ③ frosted filter, ④ filter
holder for color filters.
1. Remove one of the knobs ⑤ from the filter holder.
(Fig. 8)
Page 7

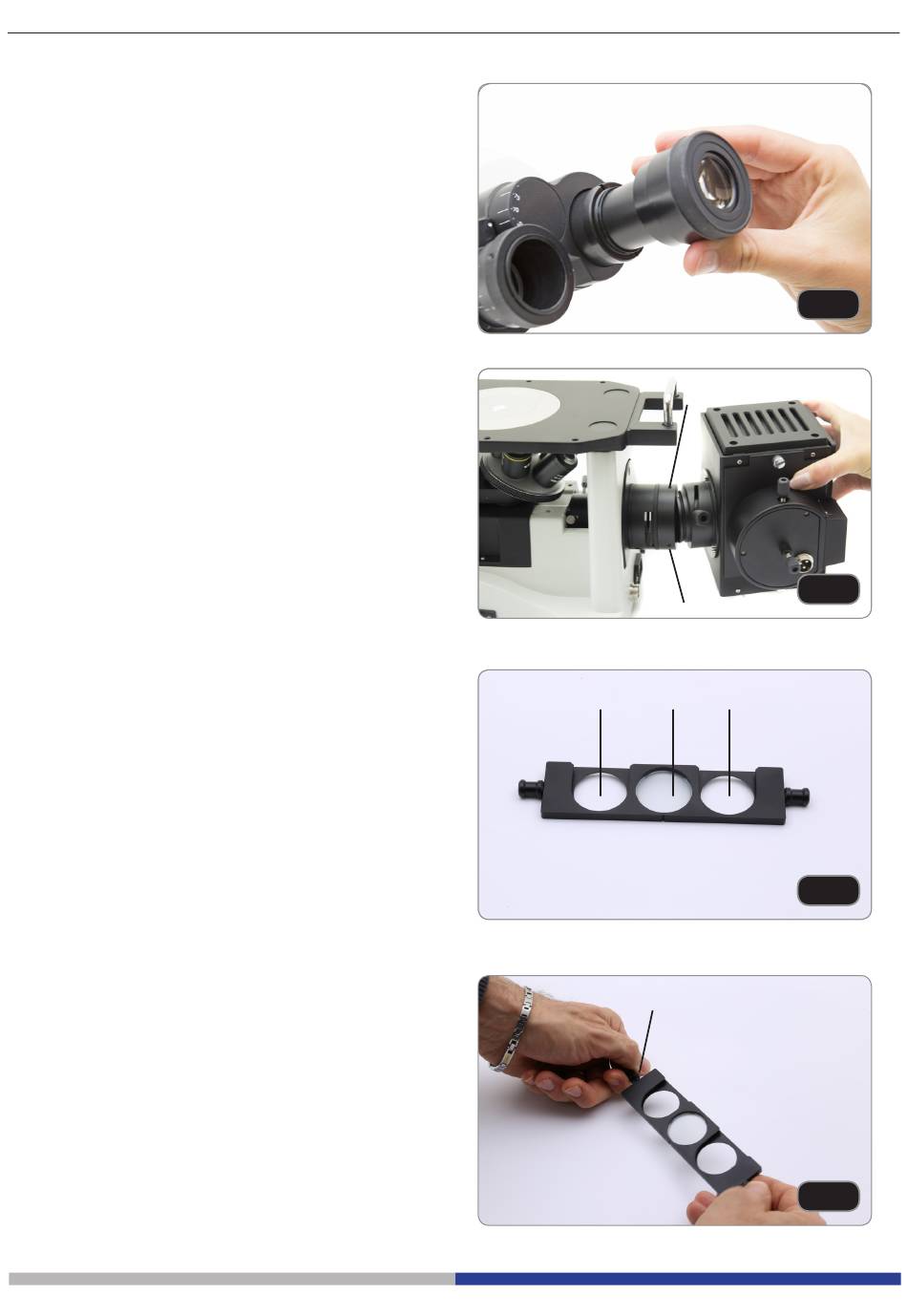

Fig. 5
Fig. 6
Fig. 7
Fig. 8
