4.5 + 0.3
Figure5

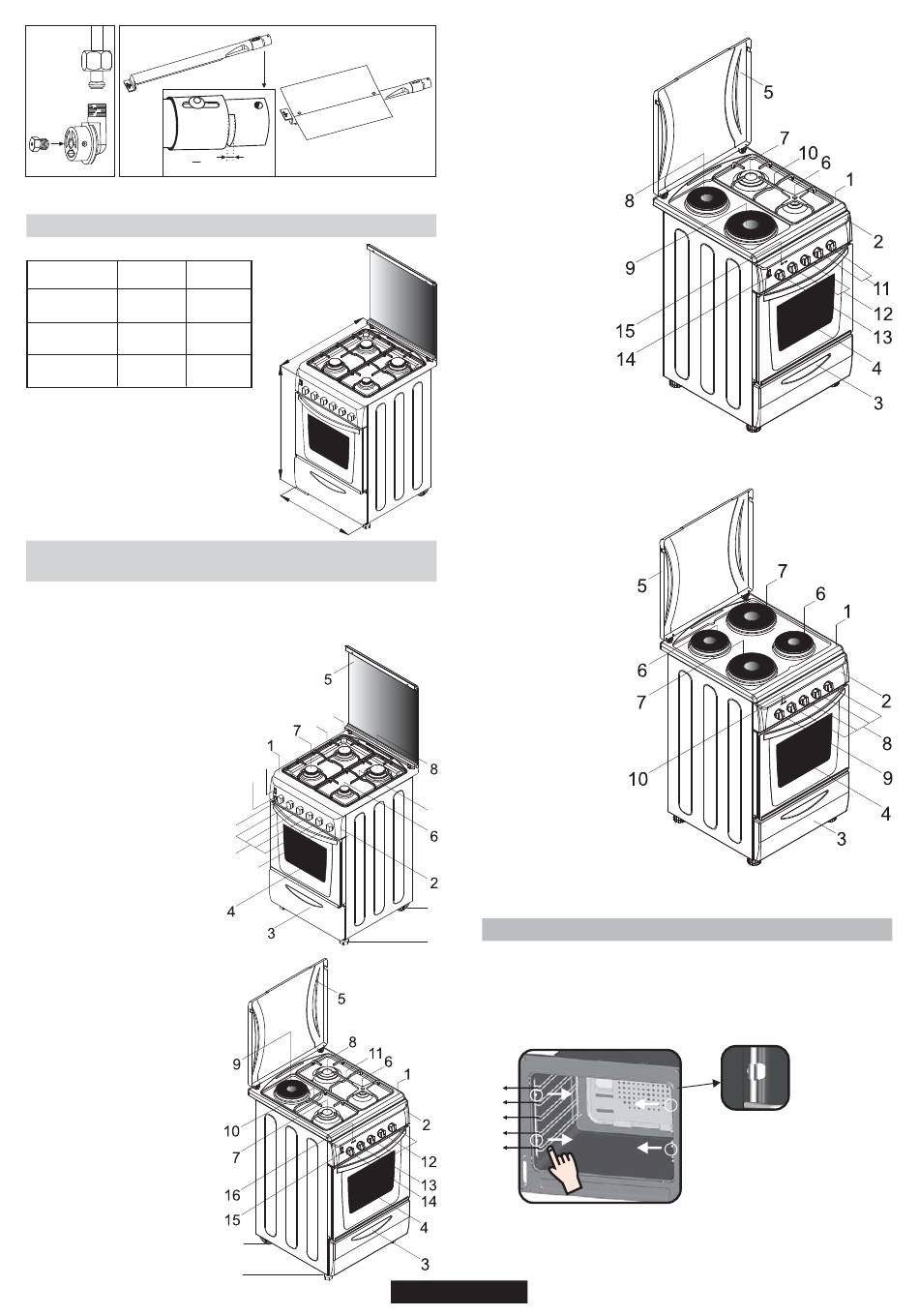

2.9. DIMENSIONS OF THE APPLIANCE

50 x 60 60 x 60
863
Height (mm)
510 598-600
Width (mm)
600
Depth (mm)
2.10. GENERAL APPEARANCE AND DEFINITION
OF THE APPLIANCE
This User Manual has been drawn up as a guide for several models.
Some of the properties mentioned in this manual may not exist in your
appliance.
1- Cook top
2- Control panel
3- Drawer
4- Oven door (Front door)
5- Glass top lid or metallic top lid
6- Auxilary burner
7- Rapid burner (Semi-Rapid burner)
8- Ultra rapid burner (Rapid burner)
9- Semi-Rapid burner
10- Left grate
11- Right grate
12- Burners control knobs
13- Thermostat oven knob
14- Ignition button or fan button
15- Lamp knob
16- Timer knob
17- Moving Foot (Adjustable Feet)
18- Bolt Foo t(Adjustable Feet)
1- Cook top
2- Control panel
3- Drawer
4- Oven door (Front door)
5- Metallic top lid or Glass top lid
6- Auxilary burner
7- Rapid burner (Semi-Rapid burner)
8- Ultra rapid burner (Rapid burner)
9- Hot plate
10- Left grate
11- Right grate
12- Burners control knobs
13- Hot plate control knob
14- Thermostat oven knob
15- Ignition button or fan button
16- Signal lamp
17- Moving Foot (Adjustable Feet)
18- Bolt Foot (Adjustable Feet)
Figure6
850
D
600
H
W
9
10
14
15
13
12
16
17
18
1- Cook top
2- Control panel
3- Drawer
4- Oven door (Front door)
5- Metallic top lid or Glass top lid
6- Auxilary burner
7- Rapid burner
Hot plate
8-
Hot plate
9-
Right grate
10-
Burners control knobs
11-
12- Hot plates control knobs
13- Thermostat oven knob
14- Ignition button or fan button
15- Signal lamp
1- Cook top
2- Control panel
3- Drawer
4- Oven door (Front door)
5- Metallic top lid or Glass top lid
6- Hot plate
7- Hot plate
8- Hot plate control knobs
9- Thermostat oven knob
10- Signal lamp
11
17
REMOVING AND CLEANING WIRE RACKS
18
1- Remove the wire racks by pulling them in the direction of the arrows
(see below)
2- To clean the wire racks either put them in the dishwasher or use a
wet sponge, ensuring that they are dried afterwards.
3- After the cleaning process install the wire racks in reverse order.
5
4
3
2
1
