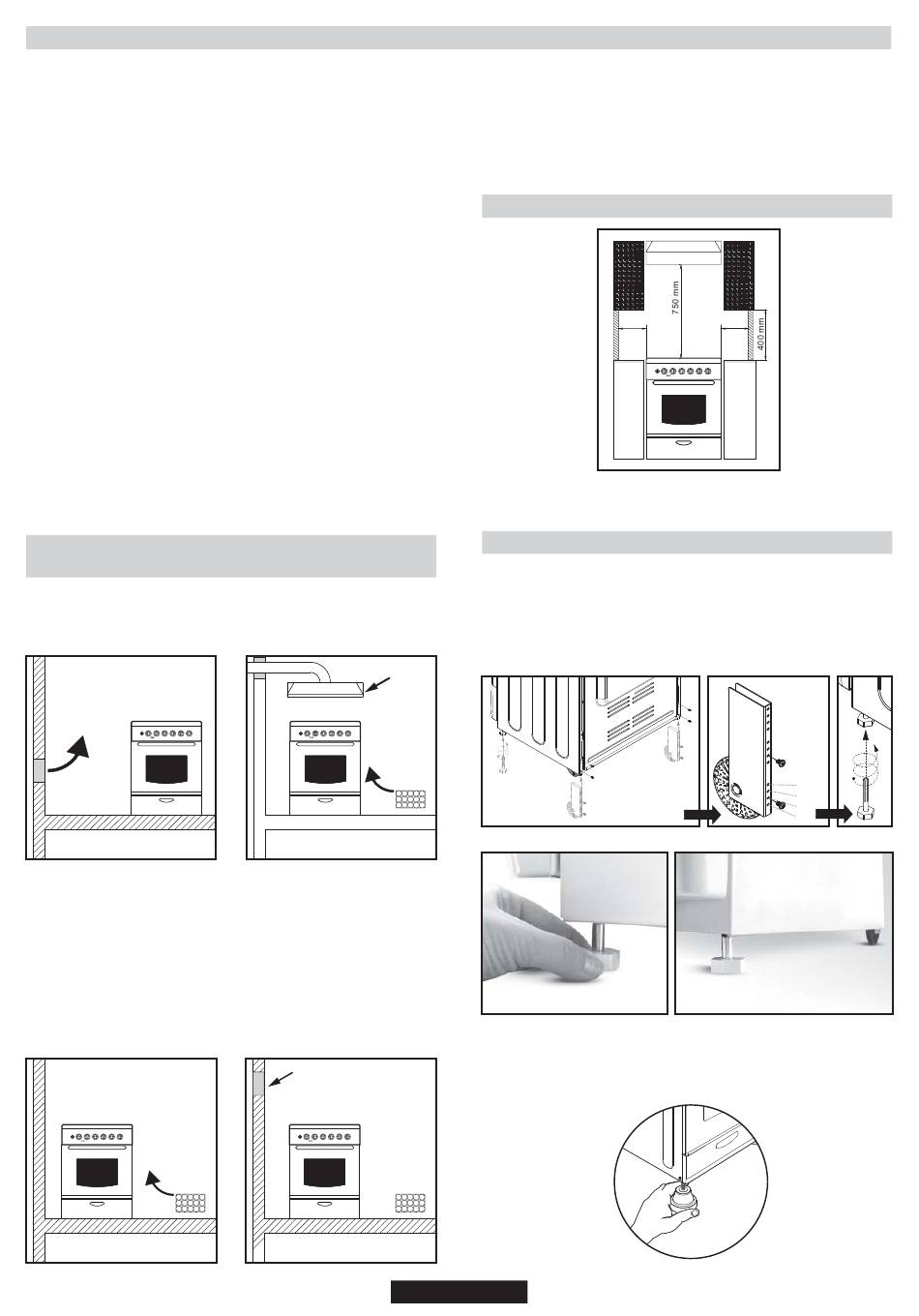

2. INSTALLATION

Installation have to be made by qualified personnel. The manufacturer
have no obligation to carry this out. If the assistance of the manufacturer is
required to rectify faults arising from incorrect installation, this assistance
is not covered by the guarantee.
The installation instructions for professionally qualified personnel must be
followed. Incorrect installation may cause harm or injury to people,
animals or belongings. The manufacturer cannot be held responsible for
such harm or injury.
WARNING! Care must be taken regarding where the appliance is placed!
It can only be installed in a continuously ventilated room.
Electrical connections must always be disconnected before any repair,
installation or modification.
The use of a gas cooking appliance results in the production of heat and
moisture in the room in which it is installed. Ensure that the kitchen is well
ventilated: keep natural ventilation holes open or install a mechanical
ventilation device (mechanical extractor hood). Prolonged intensive use
of the appliance may call for additional ventilation, for example opening of
a window, or more effective ventilation, for example increasing the level of
mechanical ventilation where present.
•Before positioning your appliance, check the properties of the energy
supply (gas type, gas pressure) and make sure that your appliance is
regulated accordingly.
•This appliance must not be connected to the exhaust system of any
equipment running on other fuel.
•The appliance must not be installed near flammable materials (e.g.
furniture, curtains, etc.)
•If the range is placed on a base, measures have to be taken to prevent the
appliance slipping from the base.
CAUTION: In order to avoid a hazard due to inadvertent resetting of the
thermal cutout, this appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is regularly
switched on and off by the utility.
2.1. ENVIRONMENT THE APPLIANCE
SHOULD BE PLACED
•The appliance must not be placed on a base
•There must be sufficient natural air ventilation in the room for gas
combustion for the appliance to function correctly.
•The air flow should enter through grilled air vents in the outer walls.
•Air grills must have a cross section of 100 cm² for the passage of air and
for appliances with a flame safety device. For appliances with no flame
safety device, this cross section should be 200 cm². (Single or multiple
grills can be used)
Emission of Combustion Gases
•Combustion gases from cooking appliances must be released directly out
of doors or via a hood connected to a chimney or flue (Figure 1)
•If it is impossible to install a hood, an electric extraction fan should be fitted
in a wall or a window opening out of doors (Figure 2)
•Extractor fans should have a capacity of replacing kitchen air 3- 5 times
per hour.
Figure 1
•This grill(s) should be constructed so that it cannot be closed from
either side and positioned preferably near the floor. Grill(s) must not be
placed across the channels through which combustion gases and
exhausted fumes pass.
•If it is impossible to install grilled air vents in the room where the
appliance is installed, the air needed can also be supplied from an
adjacent room providing it is not a bedroom or a room where an air
current could cause danger.

2.2. POSITIONING

The appliance has been designed on the presumption that the
adjacent work tops will be no higher than the cook top surface.

2.3. FEET ADJUSTMENT

Your appliance has adjustable feet at the lower corners of its chassis.
•The feet can be adjusted individually with the aid of a wrench to
guarantee that the oven is perfectly balanced and levelled, so that any
liquids in the pans is horizontal .
Adjustable feet and wheels.
A
B
•The maximum height of cooker will be 868mm by fixing the adjustable
front feet and rear wheels to the 4th hole.
•Rear wheels should be fixed to the 2nd hole (picture A1), standard
height. Thus, standard height will be 850 mm.
Adjustable feet.
Figure 2
17 GB
200 mm
200 mm
A1
C
A2
4
3
2
1
