List of Materials

Parts supplied

• Hood canopy with panel, lamps already assembled.
• Blower unit housing
• Duct Covers
• Grease filter assembly + assembly + fixing devices.
• Deflector (ductless version - 3 pieces to assemble)
• Hardware Packet:
Allen spanner x 1
Template
Use, Care and Installation guide
deflector fixing bracket x 2
3,5x9,5 screws x 52
4x7 screws x 14

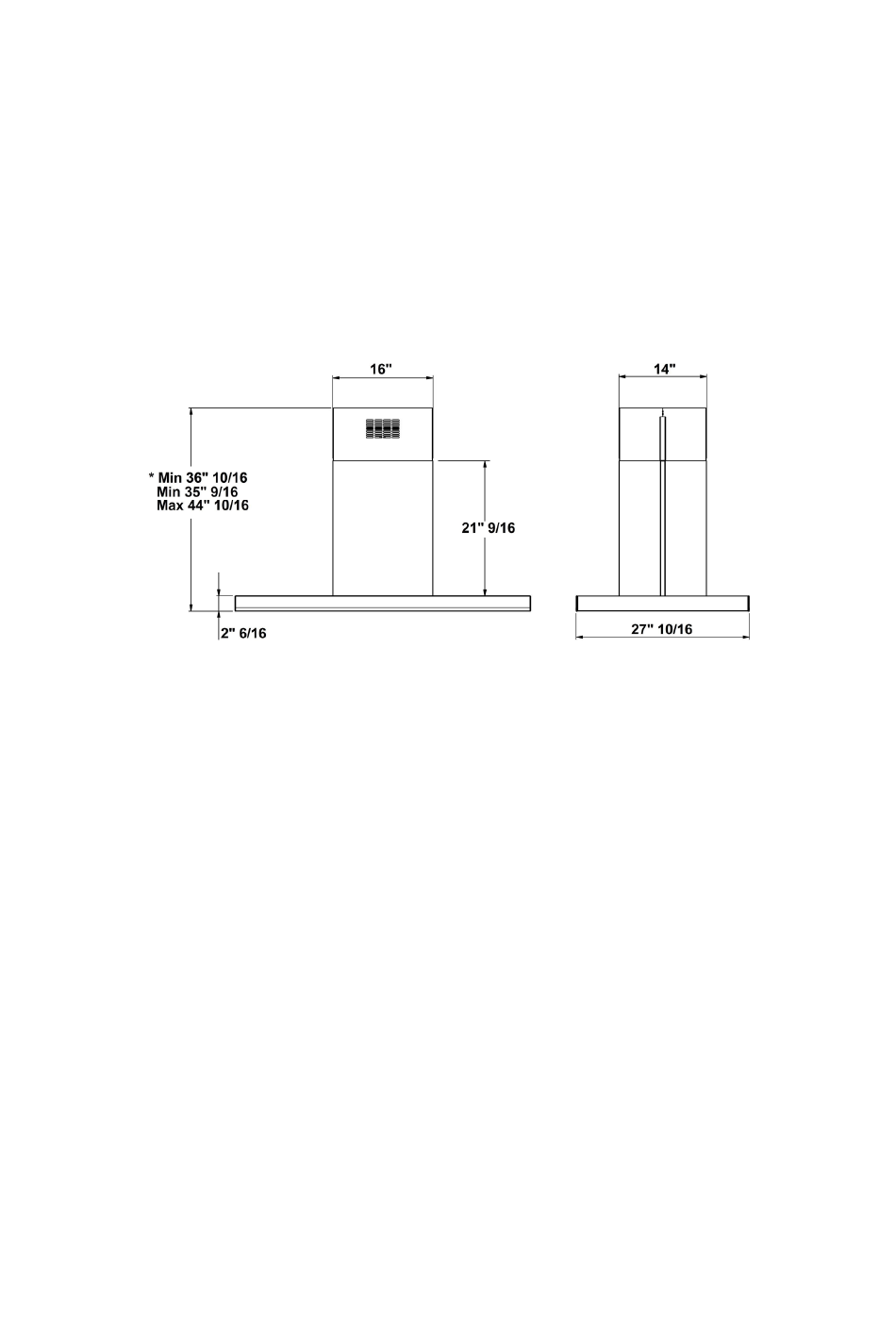

Dimensions and Clearances

* Ductless (recirculating) version ONLY.
6

Parts not supplied

• Duct, conduit and all tools required for installation.
• Ductless Recirculating Kit
To be used only in the Ductless (Recirculating)
version
includes: charcoal filter, charcoal filter fixing devices.
