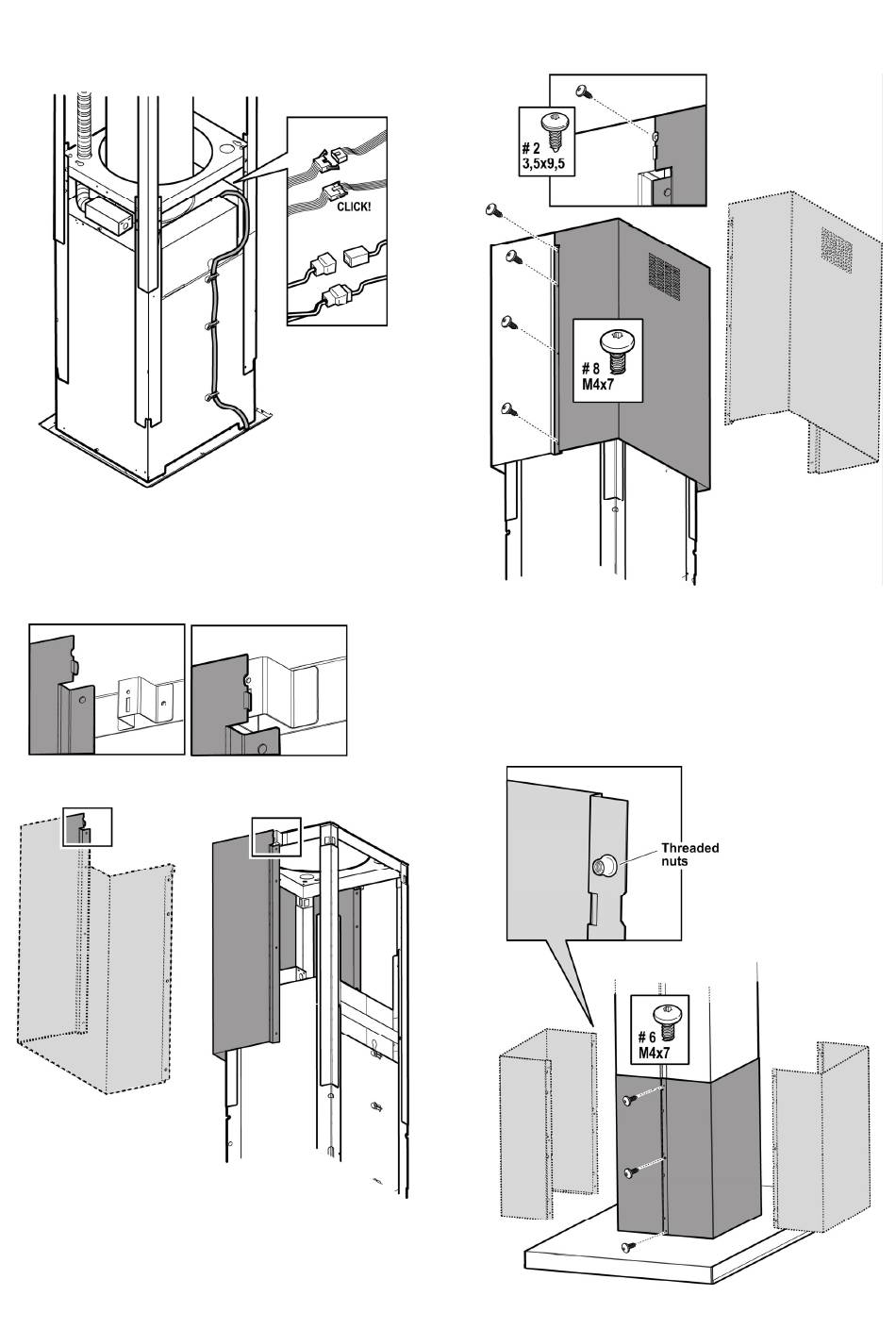

8. Carry out the electrical connection between the hood
and the motor housing.
Note: Use cable locking straps to position the cable
correctly.
9. Join the 2 upper sections of the duct covering the
perforated frame:
a. Verify that hooking fins fit into their corresponding side
fitting slots.
b. Attach at the top using 2 screws (one per side).
c. Permanently attach the two sections of the chimney
using 8 screws (4 per side).
10. Fix the lower chimneys:
a. Place on top of the hood the lower/rear part of the
chimney.
Note: the rear section is recognizable by the presence of
threaded nuts.
b. Place on top of the hood the lower/front part
checking for a good rear section fitting.
c. Secure using six screws (3 for each side).
