Aprimatic VARIA RF Instructions Pour L'installation page 13

1. INTRODUCTION AND SAFETY WARNINGS
Caution
Do not tamper with or modify the product.
Do not use the product in an improper way or for purposes other than those envisaged. Use of the actuator for other
applications must be authorised by Aprimatic and is subject to technical testing of the application.
The product can be installed and maintained only by qualifi ed technicians.
Thoroughly read these instructions before installing the product and doing the interventions specified by
the manufacturer.
Always turn the power off before any interventions on the appliance.
Always work in well-lit areas meeting the requirements of the safety at work legislation of your country. Always use
instruments, tools and equipment in good state.
After the installation, check the correct functioning of the appliance and the controlled automation.
Always use original spare parts.
Place a "BEWARE of moving parts" strikers near the frame.
Crushing or trapping hazard!
Do NOT touch the chain when it is moving.
Keep outside the range of the window's movements when it is operating.
Keep children clear of the working range of the automation during operation; do not allow children to play with fi xed
control devices; keep the transmitters out of the reach of children.
2. DESCRIPTION
The APRICOLOR VARIA actuator is used exclusively for opening and closing bottom-hung, top-hung outward-
opening, up-and-over and skylight windows.
FEATURES
The chain has been treated with Dacromet for protection against oxidation under the most severe conditions.
The chain travel is adjustable.
24 V DC functioning.
The actuator is fi tted with limit micro-switches.
The microprocessor terminal board that incorporates a 433,92 MHz radio receiver.
The appliance receives the main functions remote commands via radio or via cable (radio signals can only
be sent by Aprimatic transmitters).
!
Warning
The actuator is supplied with a chain travel of 30 cm.
ENGLISH
TECHNICAL DATA
THRUST FORCE ............................................................................... 200N
DRIVE FORCE ................................................................................... 300N
ADJUSTABLE TRAVEL ...................................................................... from 90 to 400 mm
OPERATING SPEED.......................................................................... 40mm/sec.
FRONT ADJUSTMENT ...................................................................... Max 10 mm
POWER SUPPLY ............................................................................... 24 V DC
CONSUMPTION................................................................................. 42 W
CURRENT .......................................................................................... 1,8A; 24 V DC
PROTECTION RATING ...................................................................... IP 20
RADIO FREQUENCY......................................................................... 433,92 MHz
FREE FIELD RADIO RANGE............................................................. 40 m in aria libera
OPERATING TEMPERATURE ........................................................... -20°C +70°C
STORING TEMPERATURE................................................................ -40°C +45°C
RELATIVE HUMIDITY ........................................................................ 90% MAX (non-condensing)
MIN CABLE CROSS-SECTION FOR MAINS SUPPLY CIRCUIT ...... 1 mmq
MAX CABLE CROSS-SECTION FOR CONTROL............................. use Aprimatic cable
INSTALLATION................................................................................... indoor, in dry and dust-free places

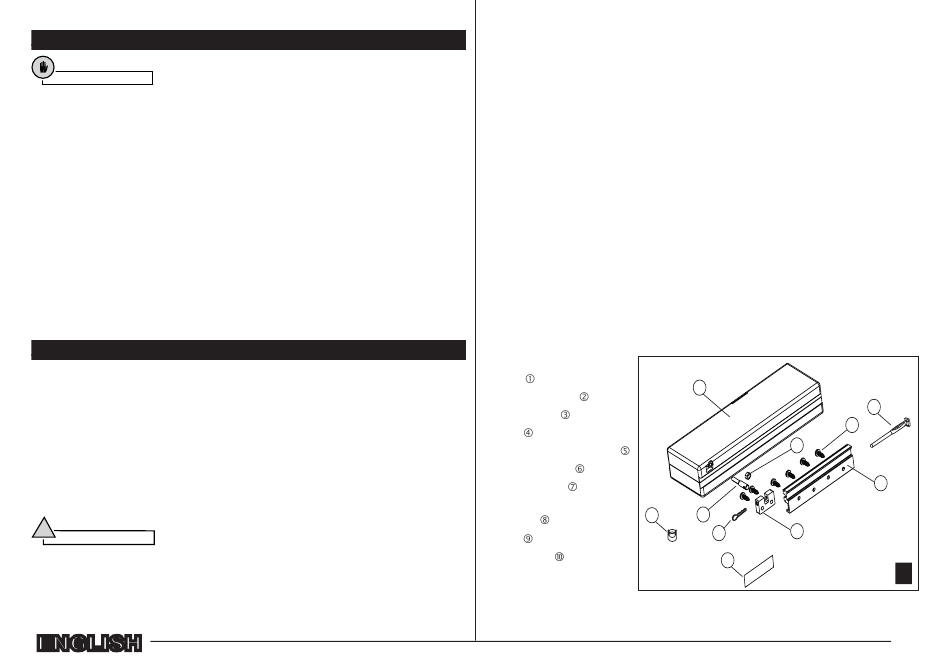

STANDARD SUPPLY
Every package contains the following:
1 actuator
1 actuator fi xing support
1 front pin for chain
1 lock nut
1 bracket for bottom-hung windows
1 chain fi xing cotter pin
6 self-tapping screws
( )
4,8x13 UNI 6954
8
1 cable clamp
1 lock pin
1 drilling template
1 instructions booklet
Check that all the components are present and not damaged.
1
9
7
4
3
5
6
10
2
5
6 6
