1483 Routed
If you selected your ISP, then the Setup Wizard will automatically select the Encapsulation, VPI, VCI, and
Multiplexing settings. Then enter the appropriate IP settings for your DSL connection.
If you need to manually enter your settings, use this screen.
VPI/VCI - If you need to manually enter your settings, enter the VPI (Virtual Path Identifier) and VCI (Virtual
Channel Identifier) settings provided by your ISP.
Multiplexing - If you need to manually enter your settings, select LLC or VC, depending on your ISP.
Static IP - Complete the IP Address, Subnet Mask, Default Gateway, Primary DNS (Domain Name System),
and Secondary DNS fields. (You need to enter at least one DNS server IP address.)
Click the Next button to continue or the Back button to return to the previous screen.
PPPoA
If you selected your ISP, then the Setup Wizard will automatically select the Encapsulation, VPI, VCI, and
Multiplexing settings. Then enter the User ID and Password for your DSL connection.
If you need to manually enter your settings, use this screen.
VPI/VCI - If you need to manually enter your settings, enter the VPI (Virtual Path Identifier) and VCI (Virtual
Channel Identifier) settings provided by your ISP.
Multiplexing - If you need to manually enter your settings, select LLC or VC, depending on your ISP.
User ID and Password - Enter the User ID and Password provided by your ISP.
Connection - Select Keep Alive if you always want to be connected to your ISP, or select Connect on
Demand if you are charged for the time that you are connected to your ISP.
Keep Alive - For this option, the Gateway will keep the Internet connection active. In the Redial Period field,
specify how often you want the Gateway to check the Internet connection (the default is 5 minutes).
Connect on Demand - If you select this option, the Gateway will terminate your Internet access after all
online applications have been closed for a specified period of time, which you can specify in the Max Idle
Time field (the default is 30 seconds).
Click the Next button to continue or the Back button to return to the previous screen.
Chapter 5: Setting up the Wireless-G ADSL Gateway with SRX200
Using the Setup Wizard

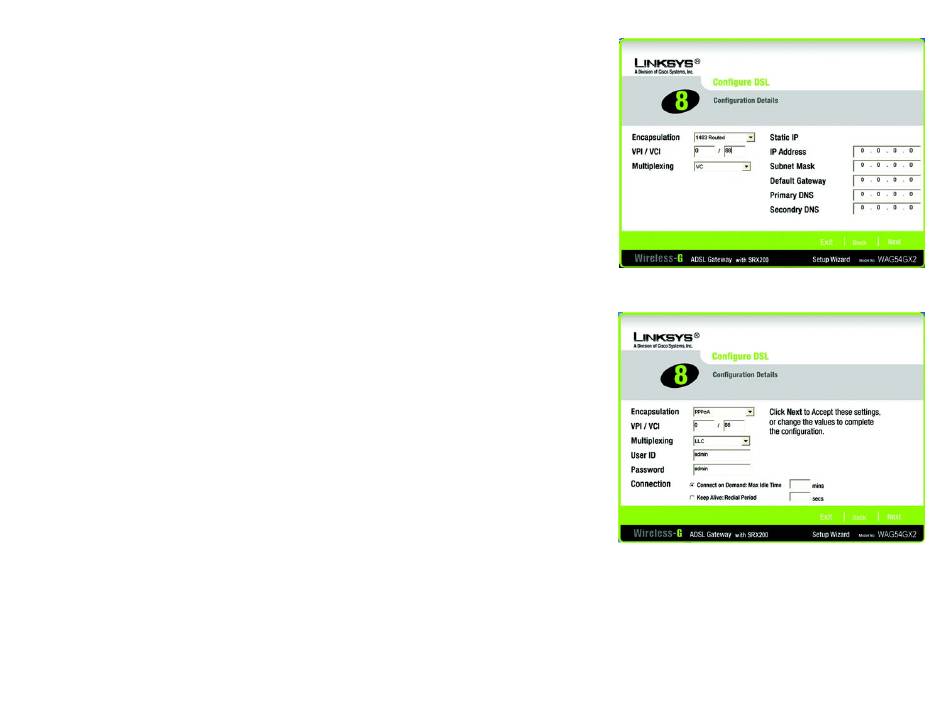

Figure 5-13: Setup Wizard's Configure DSL -
