Connection
Junction box (e.g. "VKK..." or "VKEX" from HBM)
12
4.1 Connecting in parallel of several Load
cells
Load cells are electrically connected in parallel by con­
necting the same color wire ends of the connection
cable.
Important
The overload of an individual load cell cannot be de­
tected on the output signal. The cable extension to the
follow-on electronics should be carried out in six wire
technology.

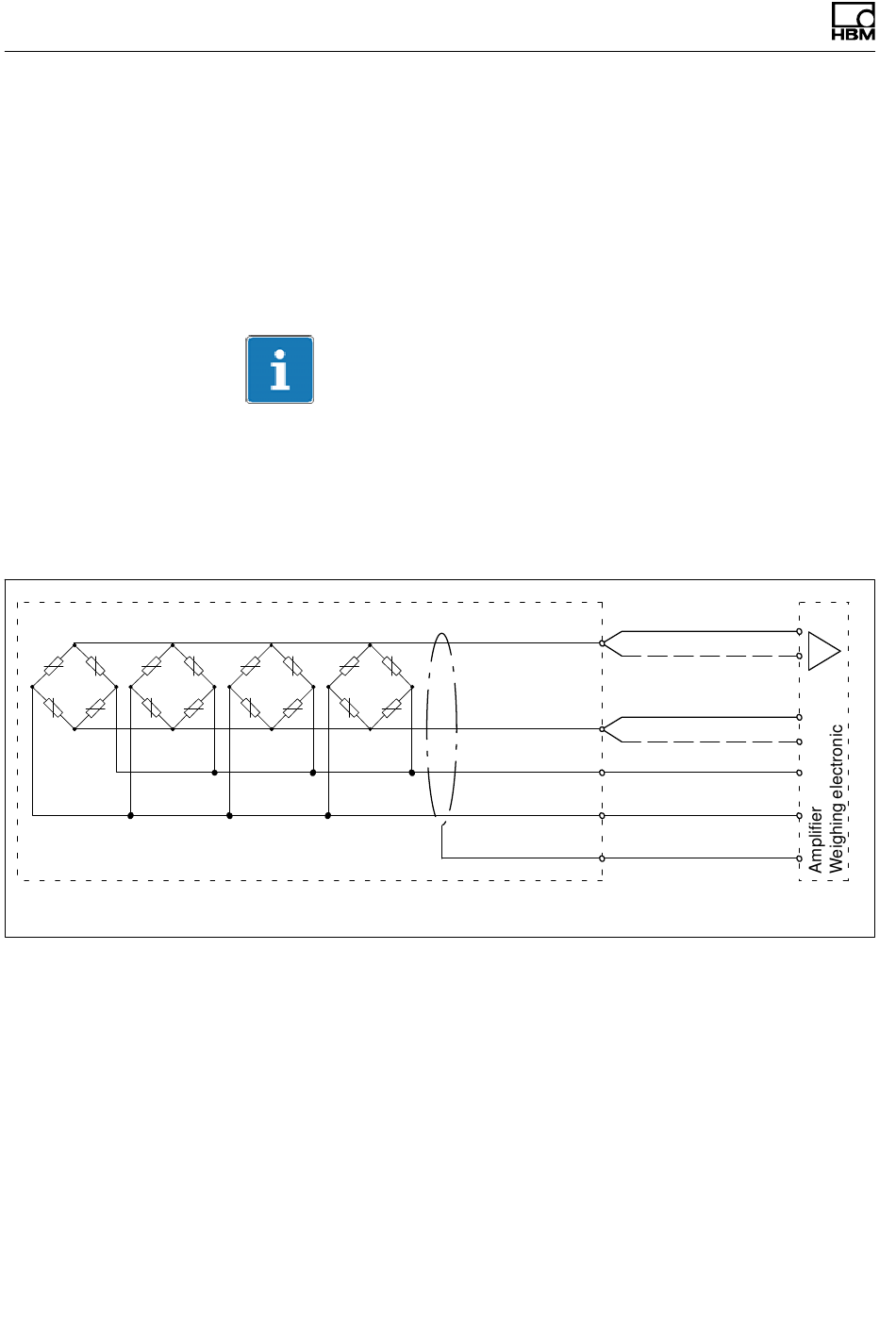

Fig. 4.2

Connecting in parallel of several Load cells

A1153-2.0 HBM: public
(black)
(blue)
(red)
(white)
(green / yellow)
Cable extension
Excitation (+)
Sense (+)
Excitation (−)
Sense (−)
Signal (+)
Signal (−)
Shield
