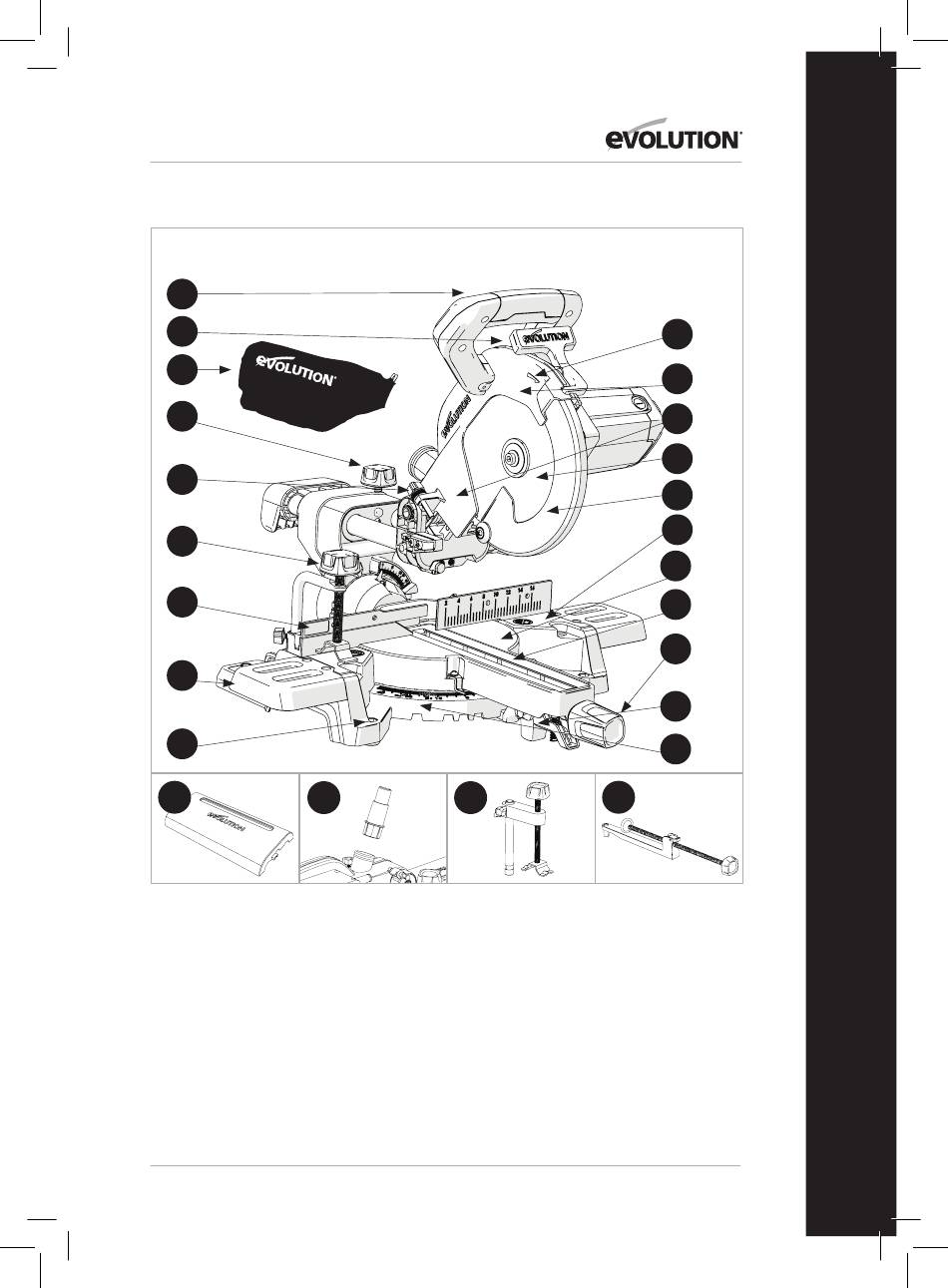

MACHINE OVERVIEW

Pictured: R210SMS (See ◊ for R210SMS+ and R210SMS-300+ Parts. See * for R210SMS+ Parts)
1
2
3
4
5
6
7
8
9
21
22
1. CUTTING HANDLE
2. BLADE GUARD LOCKING TRIGGER
3. DUST BAG ◊
4. SLIDE LOCKING SCREW
5. DEPTH GAUGE
6. 2 PC HOLD DOWN CLAMP
7. SLIDING FENCE
8. MACHINE TABLE EXTENSIONS
9. MOUNTING HOLE (X4)
10. BLADE ROTATION INDICATION ARROW
11. UPPER BLADE GUARD
12. CUTTING HEAD
◊ Supplied as original equipment on the R210SMS+ and R210SMS-300+.
* Supplied as original equipment on the R210SMS+.
24
23
13. BLADE
14. LOWER BLADE GUARD
15. TABLE TOP
16. ROTARY TABLE
17. TABLE INSERT
18. MITRE HANDLE LOCKING KNOB
19. POSITIVE STOP LOCKING LEVER
20. MITRE ANGLE SCALE
21. SLIDE RAIL PROTECTOR*
22. DUST PORT ADAPTER ◊
23. 3 PIECE HOLD DOWN CLAMP ◊
24. FRONT CLAMP ◊
13
10
11
12
13
14
15
16
17
EN
18
19
20
