Evolution R210SMS Notice Originale page 14

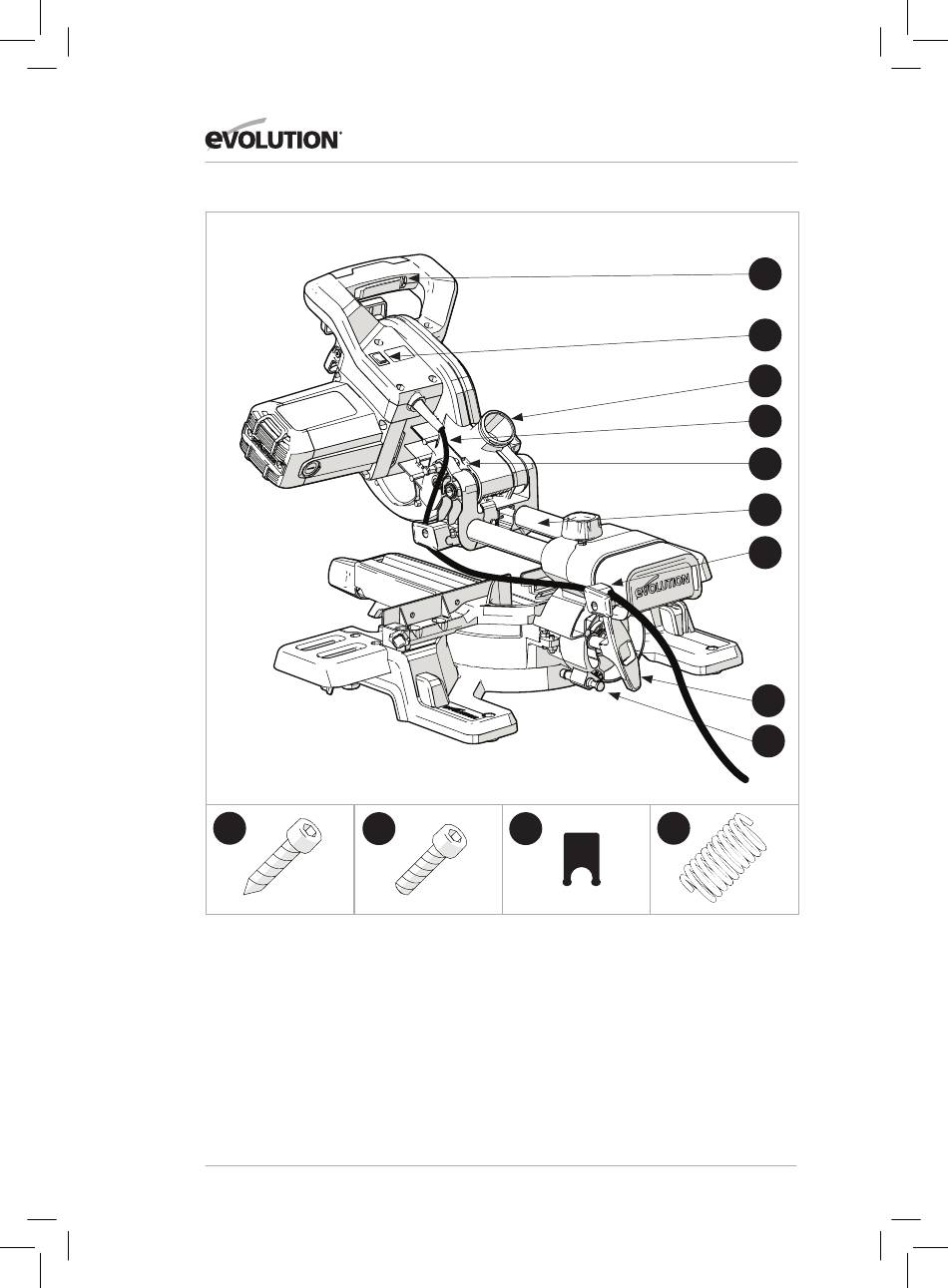

Pictured: R210SMS (See ◊ for R210SMS+ and R210SMS-300+ Parts. See * for R210SMS+ Parts)
34 35
25. ON / OFF TRIGGER SWITCH
26. LASER GUIDE ON / OFF SWITCH
27. DUST EXTRACTION PORT
28. CABLE
29. CUTTING HEAD LOCKING PIN
30. REAR SLIDING CARRIAGE
31. CABLE GUIDE CLAMP
32. BEVEL LOCK HANDLE
33. 33.9˚ BEVEL PIN
www.evolutionpowertools.com
36
34. M4 SELF TAPPING CAP SCREW x1
35. M4 SOCKET HEAD SCREW x4
36. CABLE GRIP COMPONENT
(FITTED TO THE CABLE GUIDE CLAMP)
37. ANTI-VIBRATION SPRING
(FITTED TO ITEM '4' - THE SLIDE LOCKING
SCREW)
14
25
26
27
28
29
30
31
32
33
37
