Note:
• The specified value (G) is just a reference value to be
obtained when the External S-Video (Y/C separated
video) signal is input. In actual adjustment, set it to
the value observed in step (3).

3.3.2 EE Y level

Signal
Mode
Equipment
Measuring point (D)
EVR mode
EVR address
Specified value
Adjustment tool
(1) Observe the Y OUT waveform at the measuring point (D).
(2) Set the VCR to the EVR mode by transmitting the code
(F1) from the Jig RCU.
(3) Set the EVR address to (F2) by pressing the button of
the digit-key remote controller.
(4) Adjust with the channel buttons (+, –) on the VCR (or on
the remote controller) so that the Y level of the Y OUT
waveform becomes the specified value (G).
(5) Release the EVR mode of the VCR by transmitting the
code (F1) from the Jig RCU again. (When the EVR mode
is released, the adjusted data is memorized.)
H. rate

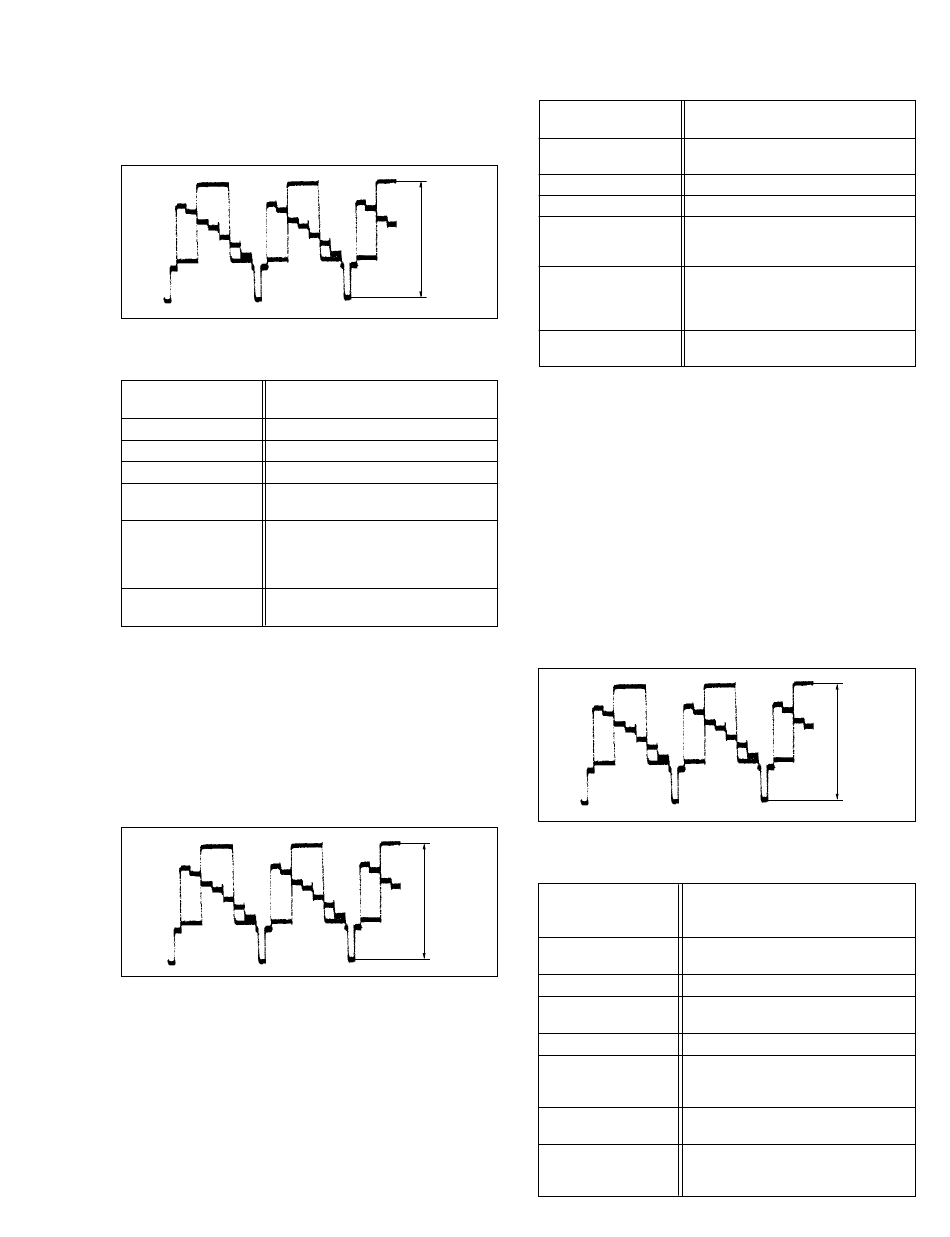

Fig. 3-3-1a D/A level
(A1) • Ext. input
(A2) • Color (colour) bar signal [PAL]
(B) • EE
(C) • Oscilloscope
• Y OUT terminal (75Ø terminated)
(F1) • Jig RCU: Code "57"
(F2) • A:11 (Press remote controller "1" key twice)
(G) [HR-S6700MS]
• 1.00 ±0.05 Vp-p
[HR-S7700MS]
• 1.00 ±0.03 Vp-p
(H) • Jig RCU [PTU94023B]
• Digit-key remote controller
H. rate
Fig. 3-3-2a EE Y level
Published in Heiloo Holland

3.3.3 PB Y level (S-VHS / VHS)

Signal
Mode
Equipment
Measuring point (D)
EVR mode
EVR address
Y level
Specified value
Adjustment tool
(1) Observe the Y OUT waveform at the measuring point (D).
(2) Record the signal (A2) in the mode (B1), and play back
the recorded signal.
(3) Press the channel buttons (+, –) simultaneously to enter
the manual tracking mode. This also brings tracking to
the center (centre).
(4) Set the VCR to the EVR mode by transmitting the code
(F1) from the Jig RCU.
(5) Set the EVR address to (F2) by pressing the button of
the digit-key remote controller.
(6) Adjust with the channel buttons (+, –) on the VCR (or on
the remote controller) so that the Y level of the Y OUT
waveform becomes the specified value (G).
(7) Release the EVR mode of the VCR by transmitting the
code (F1) from the Jig RCU again. (When the EVR mode
is released, the adjusted data is memorized.)
(8) Repeat steps (2) to (7) in the mode (B2).

3.3.4 REC color (colour) level

Signal
Y level
Mode
Equipment
Measuring point (D1)
External trigger
EVR mode
EVR address
Specified value
Adjustment tool
(A1) • Ext. input
(A2) • Color (colour) bar signal [PAL]
(B1) • S-VHS SP
(B2) • VHS SP
(C) • Oscilloscope
• Y OUT terminal (75Ø terminated)
(F1) • Jig RCU: Code "57"
(F2) • A:11 (Press remote controller
"1" key twice)
(G) [HR-S6700MS]
• 1.00 ±0.05 Vp-p
[HR-S7700MS]
• 1.00 ±0.03 Vp-p
(H) • Jig RCU [PTU94023B]
• Digit-key remote controller
H. rate
Fig. 3-3-3a PB Y level
(A1) • Alignment tape(S-VHS,SP/LP,color(colour) bar)[MH-2H]
(A2) • Ext. input
(A3) • Color (colour) bar signal [PAL]
(B1) • S-VHS SP
(B2) • S-VHS LP
(C) • Oscilloscope
• TP106 (PB. FM)
(D2) • PB color (colour) output of the LPF
(E) • TP111 (D.FF)
(F1) • Jig RCU: Code "57"
(F2) • A:02 (Press remote controller
"0" and "2" keys)
(G) • SP: "B" x 125 ± 5%
• LP: "B" x 125 ± 5%
(H1) • Jig RCU [PTU94023B]
(H2) • Digit-key remote controller
(H3) • LPF[PTU93006] (See Fig. 3-3-4a.)
