Product Description and Specifications

11
10

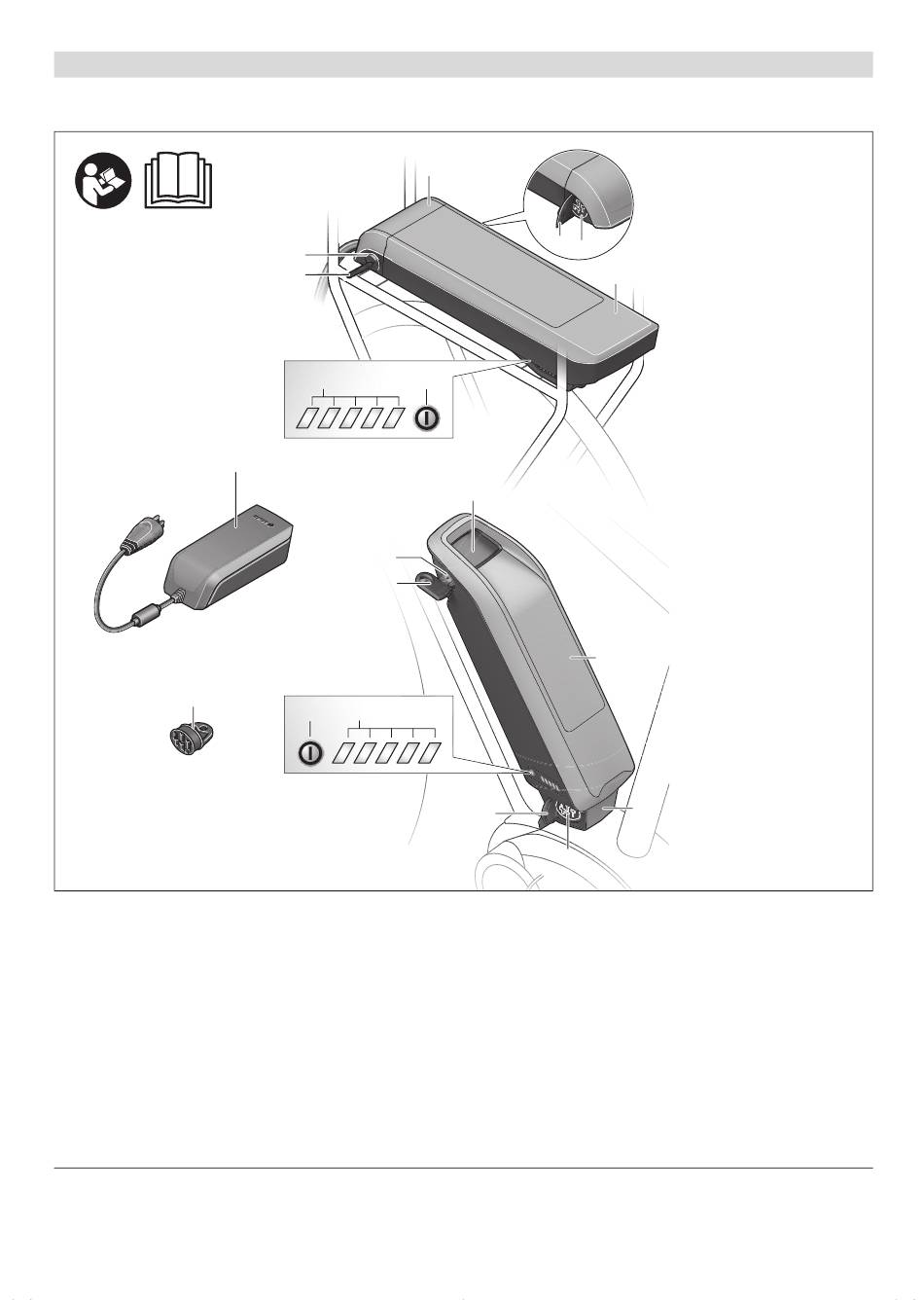

Product Features
All representations of bike components, with the exception
of the battery packs and their holders, are schematic and
can deviate from your eBike.
1 Holder for the rack-type battery pack
2 Rack-type battery pack
3 Operation and charge-control indicator
4 On/Off button
5 Key for the battery pack lock
Bosch eBike Systems
1
6
5
3 4
6
5
4 3
157
13 12
2
7
8
9
13
12
6 Battery pack lock
7 Upper holder for the standard battery pack
8 Standard battery pack
9 Bottom holder for the standard battery pack
10 Cover lid (supplied only on eBikes with
2 battery packs)
11 Battery charger
12 Socket for charge connector
13 Charge socket cover
