Battery charge-control indicator
The battery pack charge-control indicator i indicates the
charge condition of the eBike's battery pack, and not the
charge condition of the on-board computer's internal bat-
tery. The charge condition of the eBike's battery pack can
also be read from the battery pack's LEDs.
On indicator i, each bar of the battery pack symbol is
equivalent to a capacity of approx. 20 %:
The eBike battery is fully charged.
The eBike battery should be recharged.
Once there are no remaining LED bars illuminated
on the charge-control indicator, the motor support
is gently switched off and the charge-control indica-
tor begins to flash. The flashing charge-control indi-
cator means there is only enough battery power re-
maining to power the eBike lights for approximately
2 more hours. This does not account for other con-
sumers (e.g., automatic gearbox, charging external
devices at the USB port).
When the on-board computer is removed from holder 4,
the last indicated battery pack charge condition is stored.
If an eBike is operated with two battery packs, the battery
charge-control indicator i displays the level of both battery
packs.
If an eBike has two battery packs being
OF
charged on the bike, the charging progress of
MPH
KM/
both battery packs will be indicated on the
display (the left-hand battery pack is being
charged in the illustration). You can tell by
the flashing indicator on the battery pack
which of the two battery packs is being
charged.
Setting the Assistance Level
The level of assistance of the eBike drive unit when pedal-
ing can be adjusted via the operating unit 10. The assis-
tance level can be changed anytime, even during riding.
Note: For individual versions, it is possible that the assis-
tance level is preset and cannot be changed. It is also pos-
sible that fewer assistance levels are available for selection
than listed here.
If the manufacturer has configured the eBike with "eMTB
Mode" and an Intuvia on-board computer is being used on
the bicycle, "eMTB Mode" will appear briefly on the dis-
play when the "SPORT" assistance level is selected. In
"eMTB Mode", the assistance factor and torque are
dynamically adjusted as a function of the force you exert on
the pedals. "eMTB Mode" is only available for
Performance Line CX drives.
1 270 U20 XBI | (25.4.17)
The following assistance levels (max.) are available:
– "OFF": The motor assistance is switched off, the eBike
can be operated as a normal bicycle through pedaling.
– "ECO": Effective assistance at maximum efficiency for
maximum cruising range
– "TOUR": Uniform assistance, for touring with long
cruising range
– "SPORT"/"eMTB":
"SPORT": Powerful assistance for sporty off-road
riding, as well as for urban traffic
"eMTB": Optimal assistance whatever the terrain, rapid
acceleration when starting from a standstill, improved
dynamics and top performance.
– "TURBO": Maximum assistance, supporting the highest
speed for sporty riding

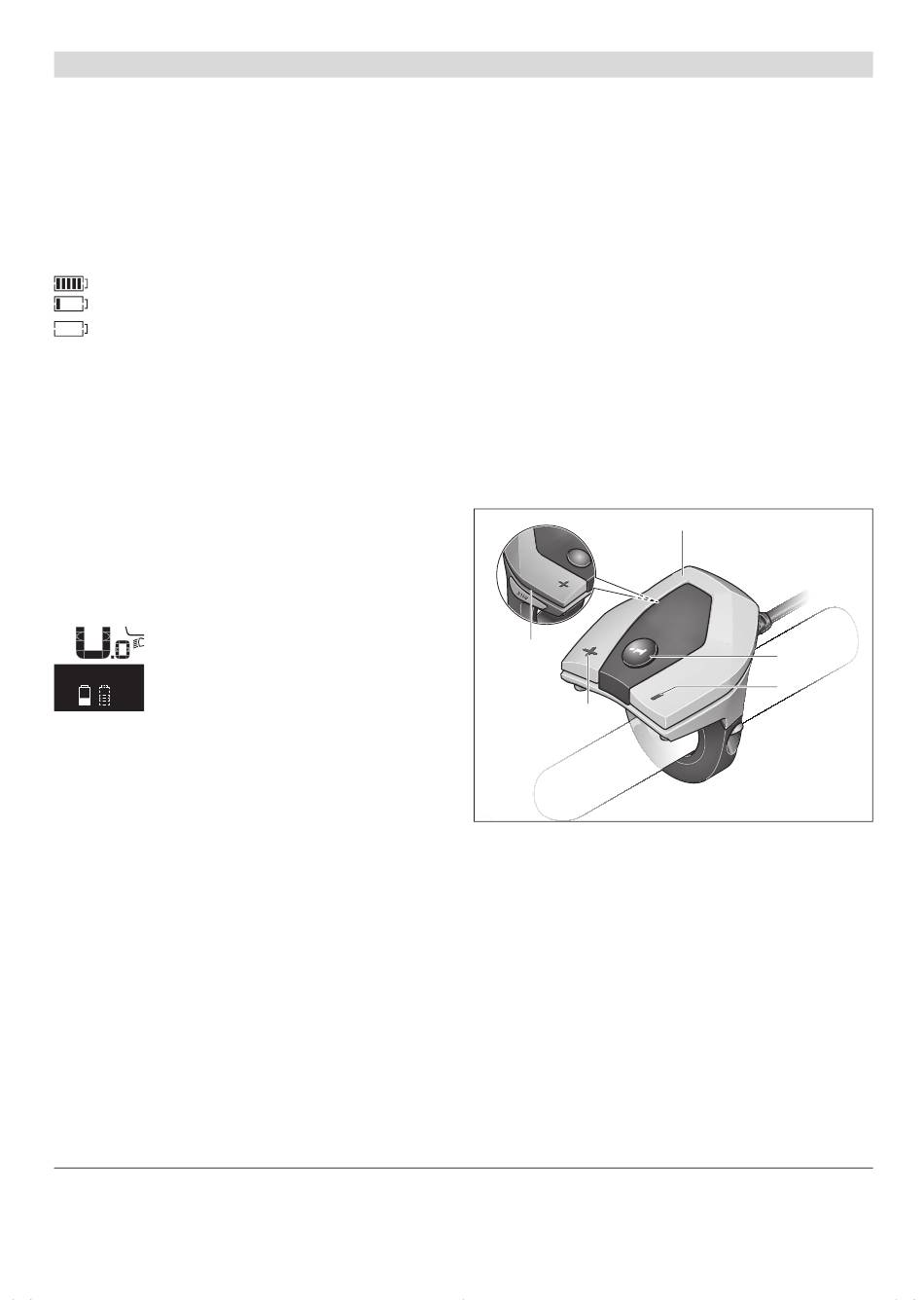

To increase the assistance level, press the "+" button 13
on the operating unit until the desired assistance level is
displayed in indicator b; to decrease the assistance level,
press the "–" button 12.
14
13
The requested motor output is displayed in indicator a. The
maximum motor output depends on the selected assis-
tance level.
When the on-board computer is removed from the holder
4, then the last indicated level is not stored and the on-
board computer is reset to the "OFF" mode.
Once it is switched on, the eBike system is in the "OFF"
mode.
72
10
11
12
