USE PROCEDURE
Controller Startup
To startup the controller plug the power cable into a
suitable power source and set the line switch to the
position 1.
Starting the pump
To start the pump press the START push-button on the
controller front panel.
Pump Shutdown
To shutdown the pump press the STOP push-button on
the controller front panel.
MAINTENANCE
The Turbo-V 2000 ICE series controller does not
require any maintenance. Any work performed on the
controller must be carried out by authorized personnel.

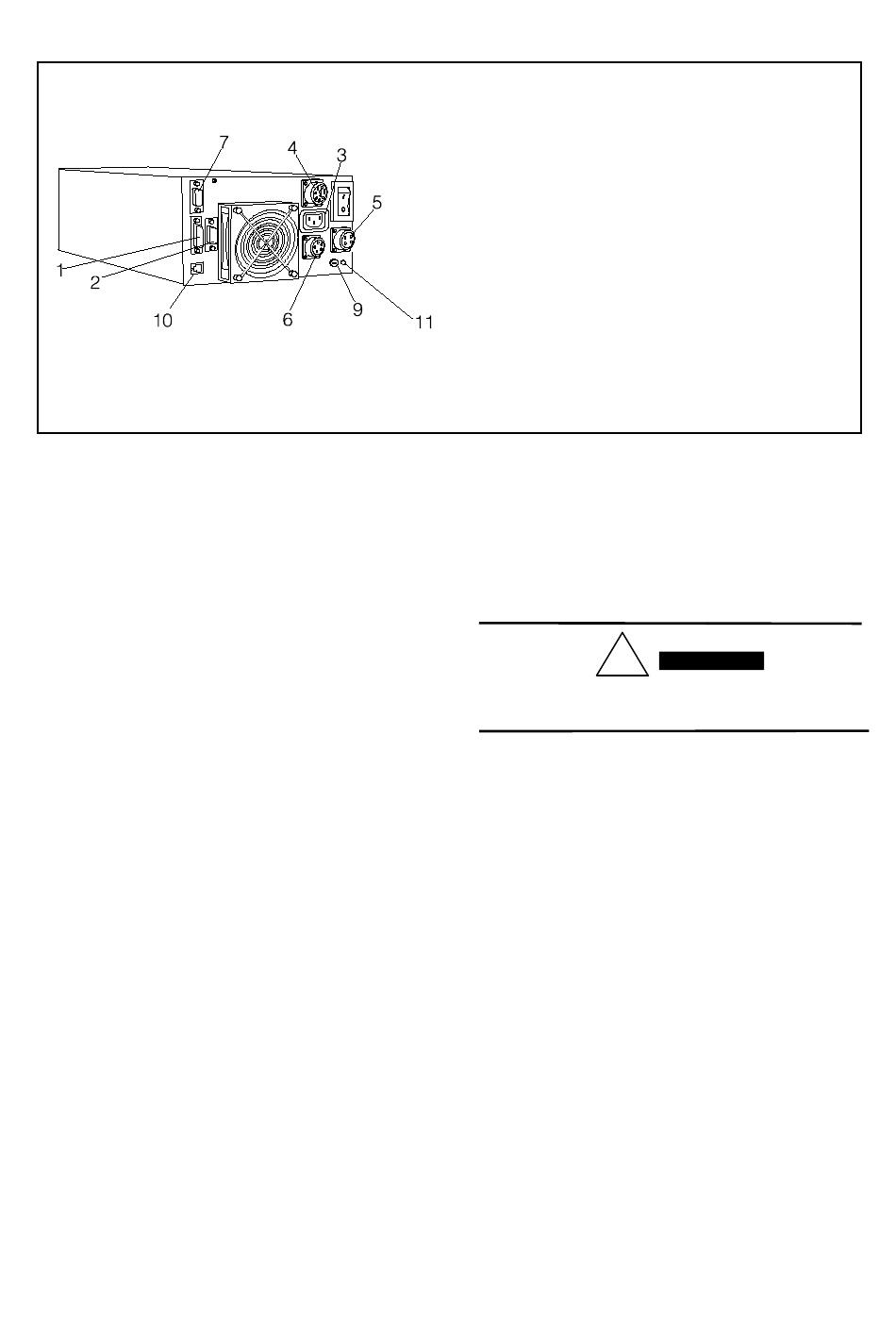

Controller 969-9448 and 969-9449 rear panel
67
1.
Logic signals input/output connector that also checks the
power supplied to the pump and the excitation frequency
(the coupling connector is provided with the appropriate
loop-back plug).
2.
Logic signals input/output connector in compliance with
the SEMI specifications.
3.
Power out socket (120 Vac, 1 A) for power supply to the
optional devices (vent device, primary pump activation
relay, etc).
4.
Pump cable socket.
5.
Power supply line input connector.
6.
Heater jacket power cord socket.
7.
Provision for RS-232 - RS-422 - RS-485 communication
port connector (provided as an option).
8.
Line switch with magnetothermal protection.
9.
Heater jacket power supply fuse.
10. Flow meter connection cable socket.
11. Ground connection.
When a fault has occurred it is possible to use the
Varian repair service. Replacement controllers are
available on an advance exchange basis through
Varian.
!
Before carrying out any work on the controller,
disconnect it from the supply.
If a pump is to be scrapped, it must be disposed off in
accordance with the specific national standards.
ERROR MESSAGES
For a certain type of failure, the controller will self-
diagnose the error and the messages described in the
following table are displayed.
INSTRUCTIONS FOR USE
WARNING!
87-900-929-01 (H)
