Swegon GOLD RX Instructions D'installation page 15

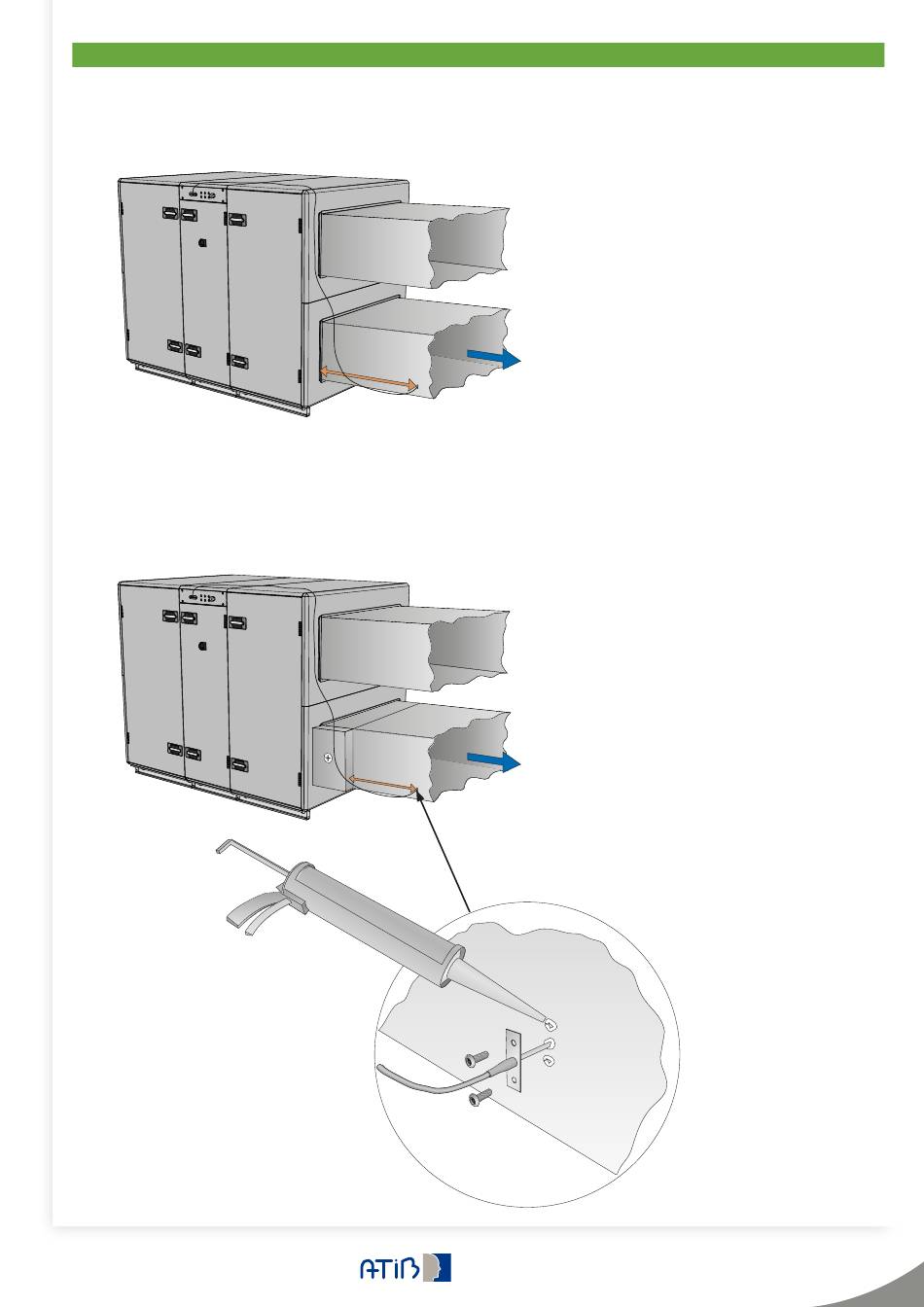

11.
GOLD 004/005, 007/008, 011/012, 014/020, 025/030, 035/040, 050/060, 070/080
A >= 1 500 mm
B = 7 000 mm (GOLD 004/005, 007/008, 011/012, 014/020, 025/030)
= 10 000 mm (GOLD 035/040, 050/060, 070/080)
C = Ø 11 mm
18
A
B
A
B
www.atib.fr
C
