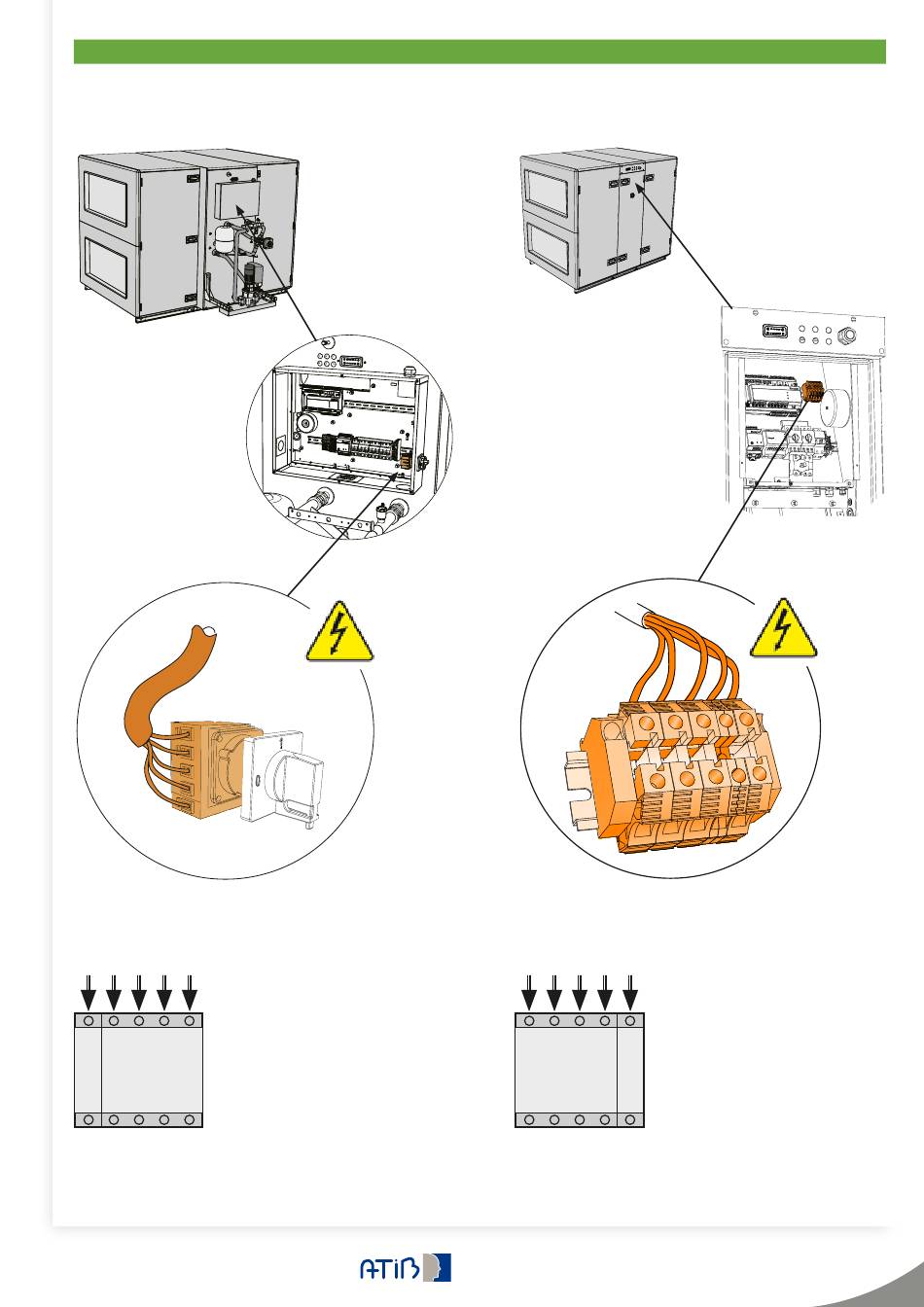

Swegon GOLD RX Instructions D'installation page 12

9.
GOLD CX 035/040, 050/060, 070/080
400V
GOLD CX 035/040, 050/060, 070/080
3-phase, 5-wire, 400V -10/+15%, 50Hz
PE L1 L2 L3 N
GOLD CX 035, cap. var. 1 20A
GOLD CX 035, cap. var. 2 25A
GOLD CX 040, cap. var. 1 32A
GOLD CX 040, cap. var. 2 40A
GOLD CX 050, cap. var. 1 32A
PE L1 L2 L3 N
GOLD CX 050, cap. var. 2 40A
GOLD CX 060, cap. var. 1 40A
GOLD CX 060, cap. var. 2 50A
GOLD CX 070, cap. var. 1 40A
GOLD CX 070, cap. var. 2 63A
GOLD CX 080, cap. var. 1 63A
GOLD CX 080, cap. var. 2 80A
GOLD RX 025/030, 035/040, 050/060
400V
GOLD RX 025/030, 035/040, 050/060
3-phase, 5-wire, 400V -10/+15%, 50Hz
L3 L2 L1 N PE
L3 L2 L1 N PE
www.atib.fr
GOLD RX 025, cap. var. 1 10A
GOLD RX 025, cap. var. 2 16A
GOLD RX 030
GOLD RX 035
GOLD RX 040, cap. var. 1 25A
GOLD RX 040, cap. var. 2 40A
GOLD RX 050, cap. var. 1 25A
GOLD RX 050, cap. var. 2 40A
GOLD RX 060, cap. var. 1 32A
GOLD RX 060, cap. var. 2 50A
20A
20A
15
12
