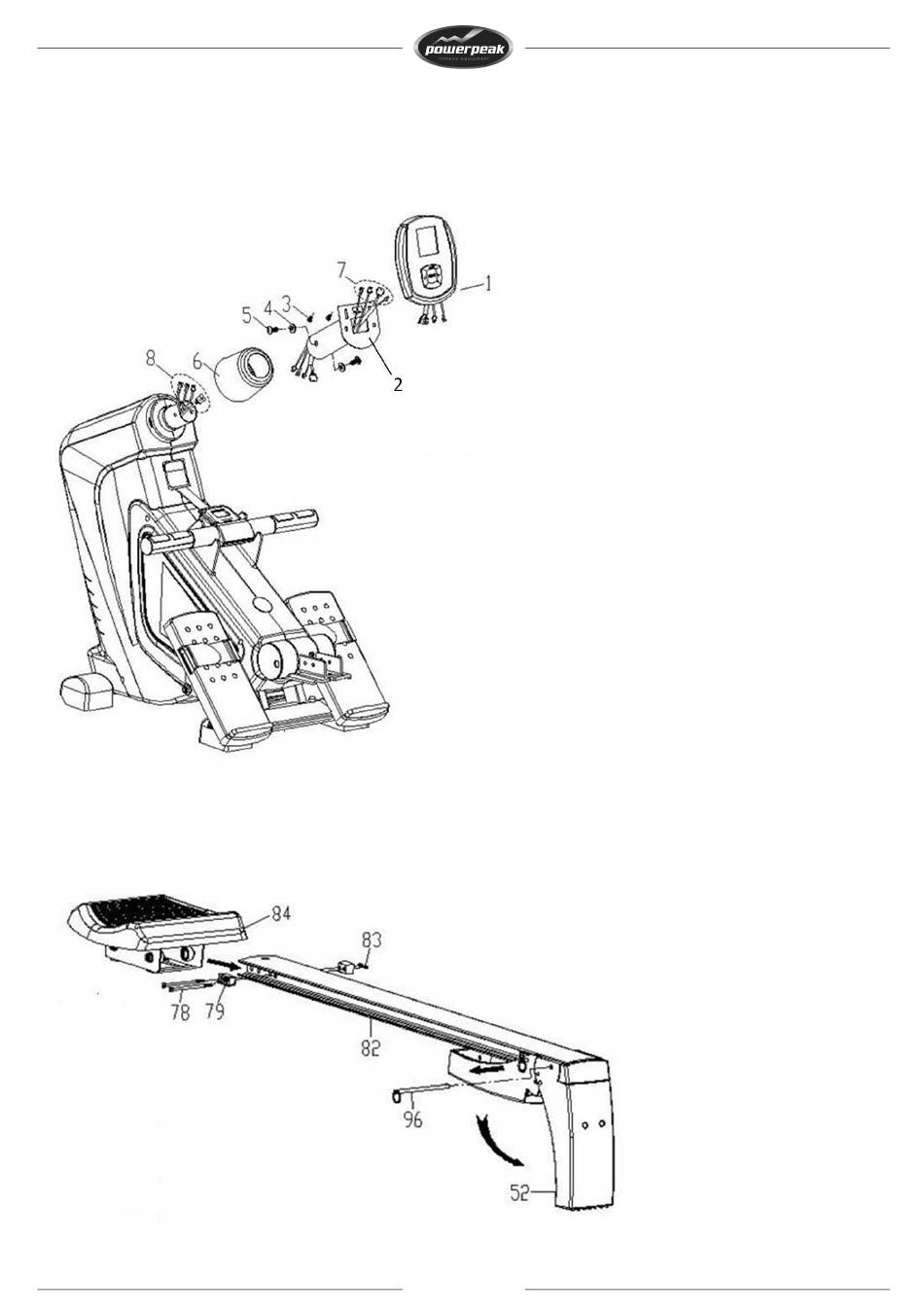

Step 3: assembling the computer
Place the cover (6) over the lower part of the cable holder (2).
Connect the upper computer cables (7) with the lower computer cables (8).
Attach the cable holder (2) to the main frame (46) with two curved washers (4) and two screws (5).
Attach the computer (1) with two screws (3).

Step 4: assembling the saddle
Remove the pin (96) from the frame and unfold the rear stabiliser (52). Place the pin (96) back in the
frame.
Slide the seat (84) over the rail (82).
Place a shock absorber (79) on each side of the rail (82) and secure with two bolts (78) and two nuts (83).

25
