Quick Start

To attach the MultiSync
follow these instructions:
1. Turn off the power to your computer.
2. For use with the PC or MAC with DVI digital output: Connect the DVI
signal cable to the connector of the display card in your system
(Figure A.1). Tighten all screws.
For a PC with Analog output:Connect the 15-pin mini D-SUB signal cable to the
connector of the display card in your system (Figure A.2). Tighten all screws.
For the MAC: Connect the MultiSync Macintosh cable adapter to the
computer, then attach the 15-pin mini D-SUB signal cable to the MultiSync
Macintosh cable adapter (Figure B.1). Tighten all screws.

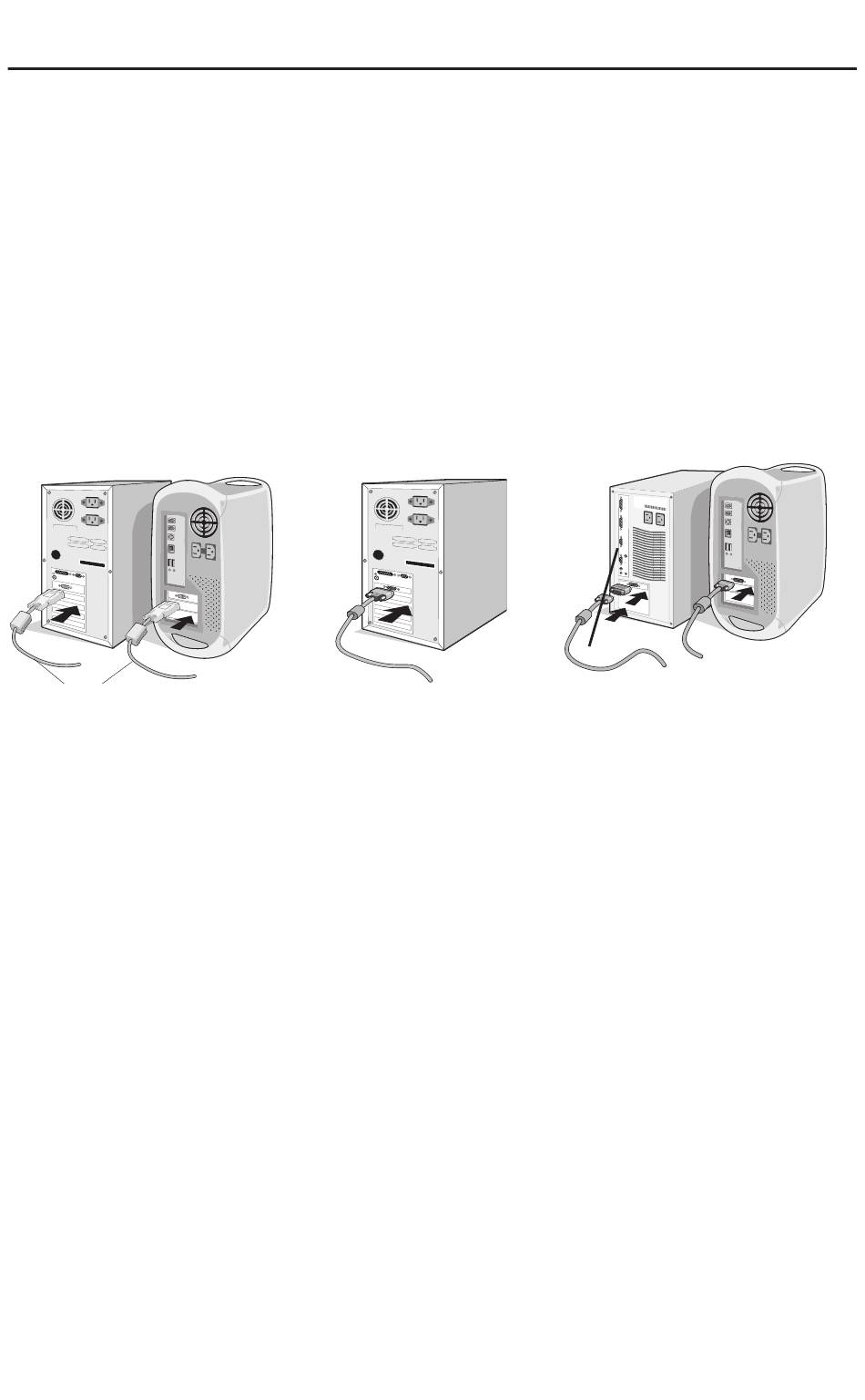

Figure A.1
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
NOTE: To obtain the MultiSync Macintosh cable adapter call
3. With one hand, grip the top of the display by the handle using the other hand to
grip the bottom. Tilt the LCD panel backwards to a 30-degree angle and lift up to
the highest position. Connect all cables to appropriate connectors (Figure 4).
4. To keep the cables neatly organized, place them into the cable
management system that is built into the stand.
Place the power cable into the specific hooks as indicated. (Figure 5).
Place the DVI cable and the 15-pin mini D-Sub cable into the hooks as indicated
(Figure 5).
When using the monitor in Portrait mode, place the DVI cable and the 15-pin mini
D-Sub cable into the hooks as indicated (Figure 6).
5. Cables should rest flat against the stand.
Make sure to leave enough slack in the cables so that the Tilt and the
Raise and Lower functions of the monitor are not impeded.
LCD monitor to your system,
®
Figure A.2
NEC Display Solutions of America, Inc. (800) 632-4662.
Macintosh Adapter
(not included)
3
Figure B.1
