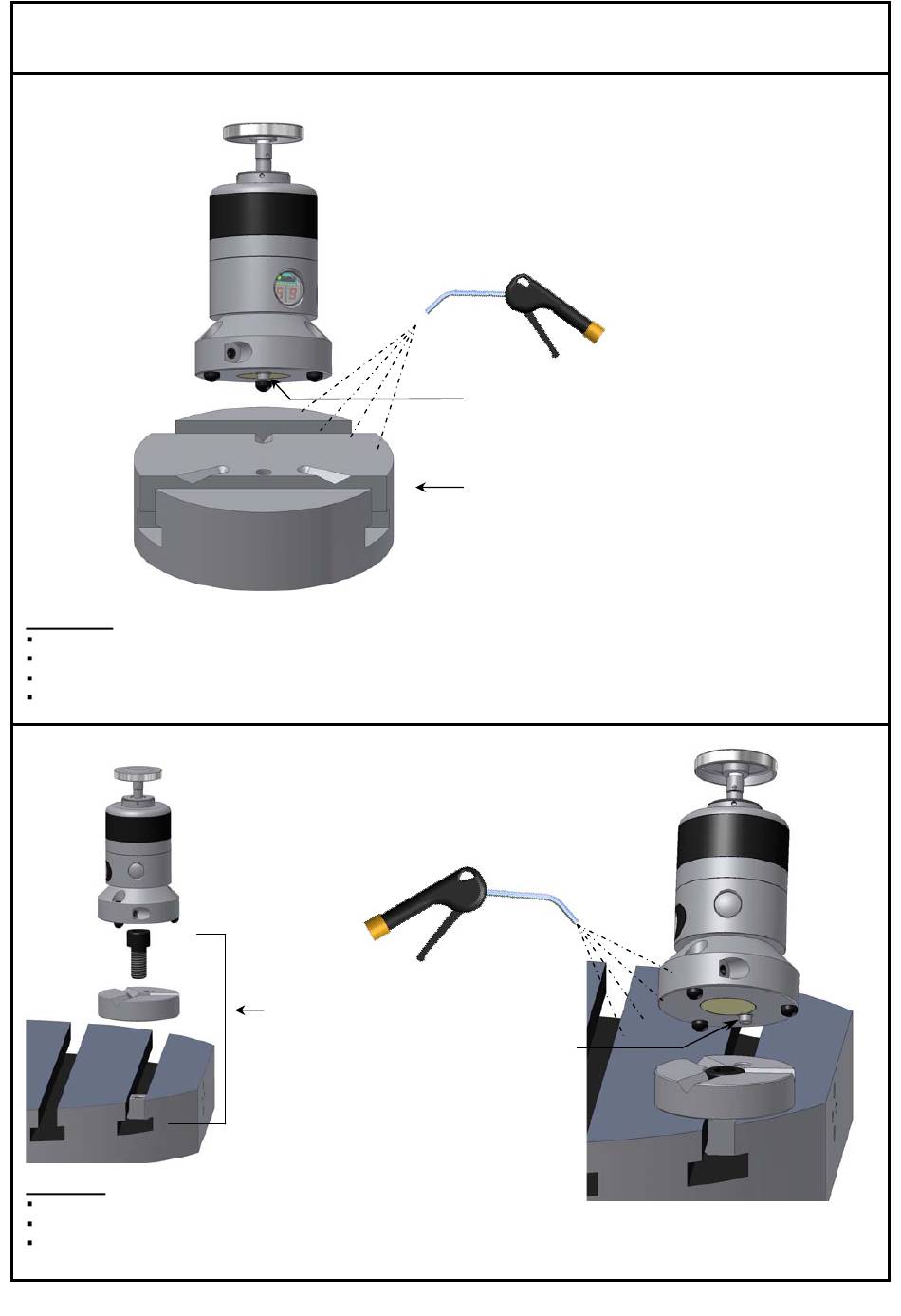

Mounting Directly on the Machine Table

Attention:
Slots must be milled in the machine table!
Blow adjustment bolts and V-slots clean.
When positioning the tool setter, ensure that the index screw head is in the correct hole!
V-Slots and adjustment bolts must be clean and free of chips!

Mounting with Base Plate

Attention:
Clean adjustment bolts and V-slots.
When positioning the tool setter, ensure that the index screw head is in the correct hole!
V-Slots and adjustment bolts must be clean and free of chips!
Base plate
with T-Nut:
Index screw head
35.70-BP-12
35.70-BP-14
35.70-BP-18
35.70-BP-22
Index screw head
Machine table
