Radio-wave Tool Setter RWT35.50

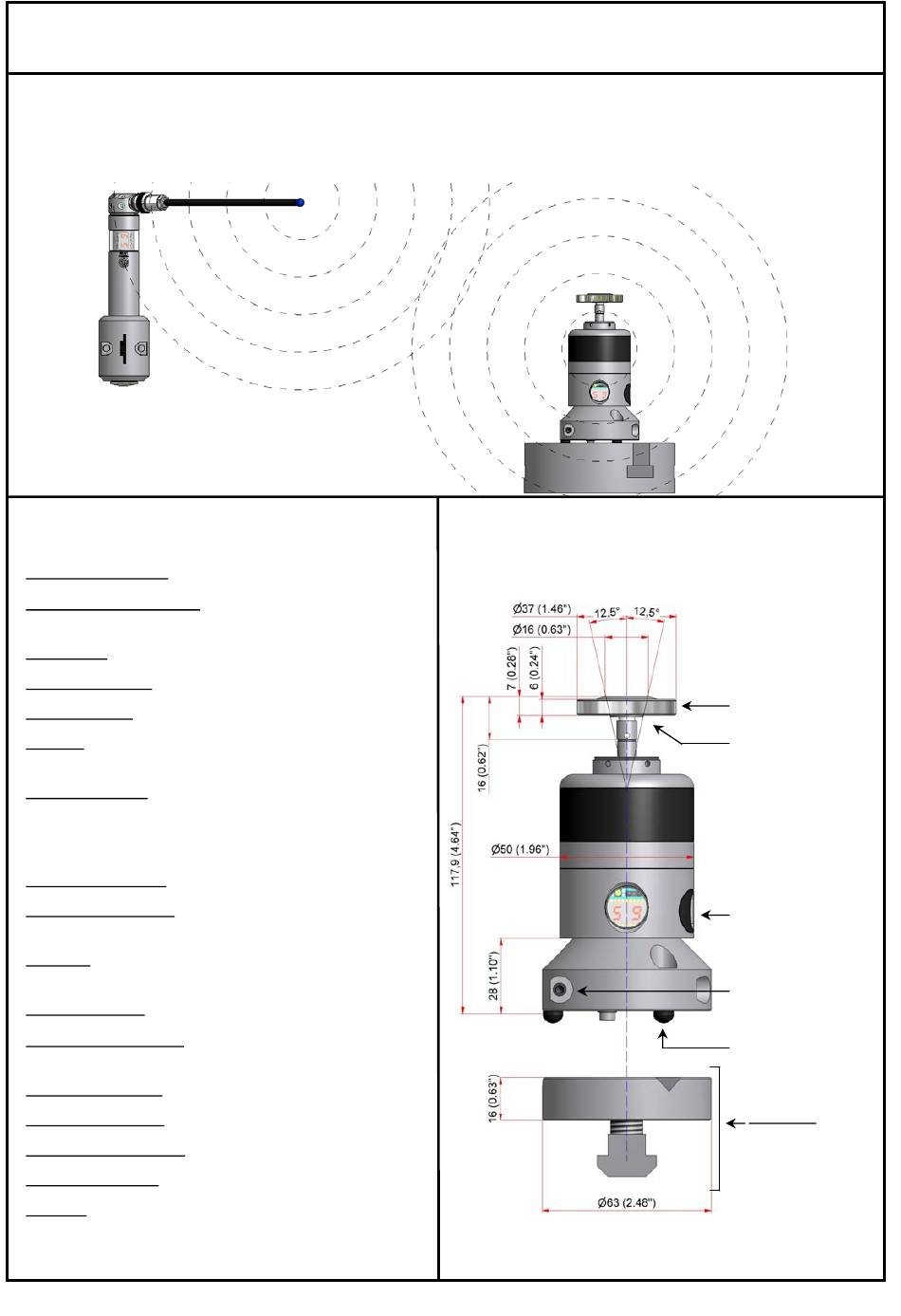

System Components

Radio-wave Receiver
RWR95.40

Technical Data

Probing Directions:
Max. Stylus Overtravel:
Probing Force
adjustable:
Factory Settings:
Smallest Tool:
Battery:
Battery Lifetime:
Weight:
without base plate:
Temperature range:
Material:
Probe repeatability
in one direction:
Placement Accuracy:
Guaranteed Life-time
of Measuring Unit:
Frequency Range:
Number of Channels:
Channel Spacing:
Sealing:
± ±
X; Y; -Z
±
XY 12.5°; Z –6mm
Z = 2,5 – 12.5N
XY = 0.3 – 1.4N
Z = 8.5N / XY = 0.96N
Ø0.5mm (0.02")
2x Battery 3,6V
Type ½ AA (1200mAh)
100% = 325h
5% = 219d
Standby = 230d
ca. 940g
Operating: 10° - 50°C
Storage: 5° - 70°C
Stainless Steel
2Sigma ≤1µm
at 100mm/min
±
2.5µm
10 million deflections
433.075 – 434.650 MHz
64
25 KHz
IP68: EN60529
Radio-wave Tool Setter
RWT35.50

Dimensions

1
Cylindrical Stylus
Break Shaft
(Ceramic)
Battery compartment
Channel Display
Channel adjustment
Clamping screws
Adjustment bolts
(3x)
Optional:
Base plate
with T - Nut
35.70-BP-12
35.70-BP-14
35.70-BP-18
35.70-BP-22
