Radio-wave Tool Setter RWT35.50
Tool Setter Calibration
Attention:
Calibrate the Tool Setter using the machine control's calibration cycle.
Tool Setter ON / OFF Procedure
The bi-directional Tool Setter will be activated and deactivated by the Radio-wave Receiver RWR95.40.
After setting the M-Code the Tool Setter is activated in <1,5 s and deactivated in <1,5 s after resetting.´
M-Code

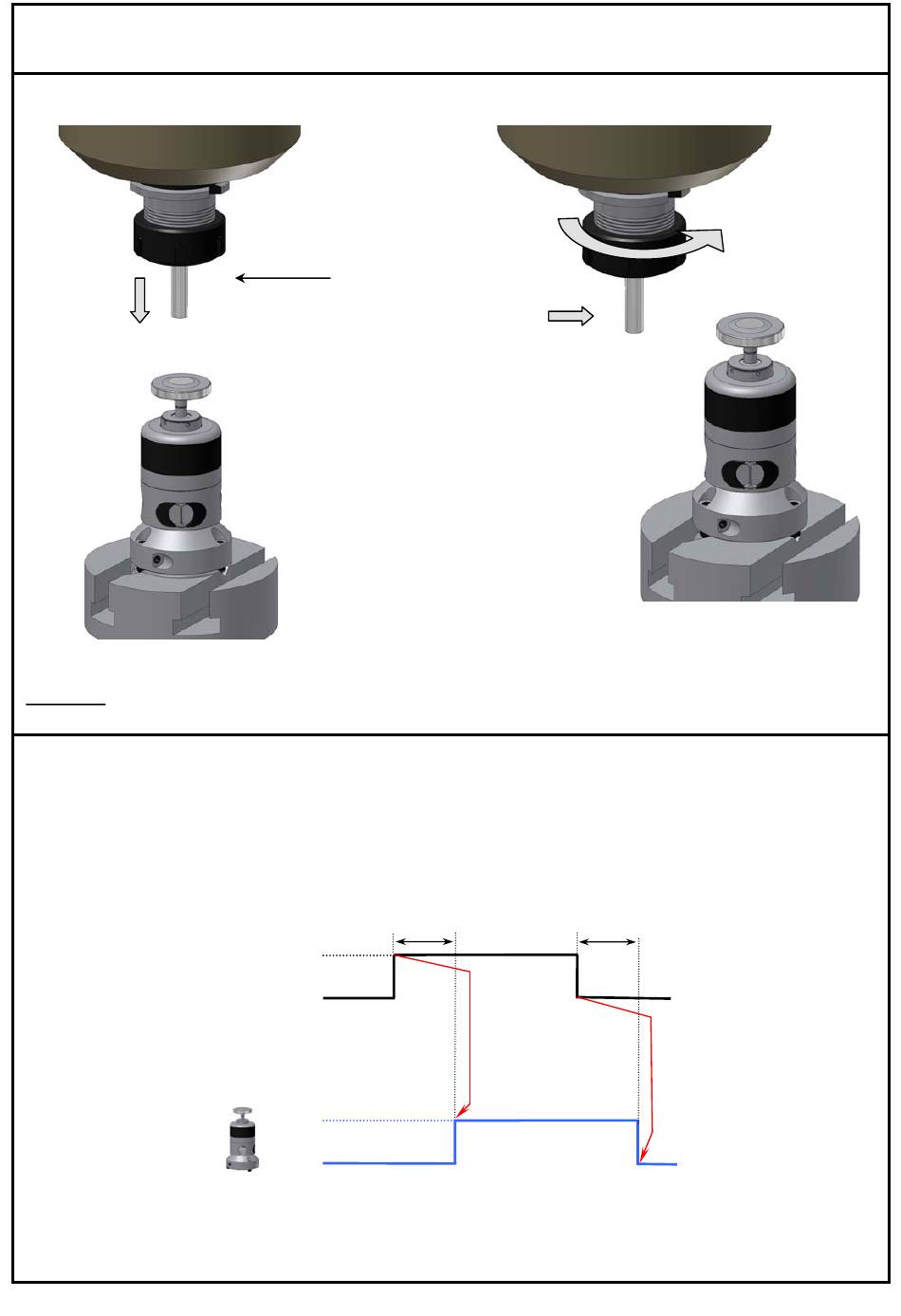

Calibration Pin
35.00-CP
<1,5s
>10VDC
0V
ON
OFF
<1,5s
