Radio-wave Tool Setter RWT35.50

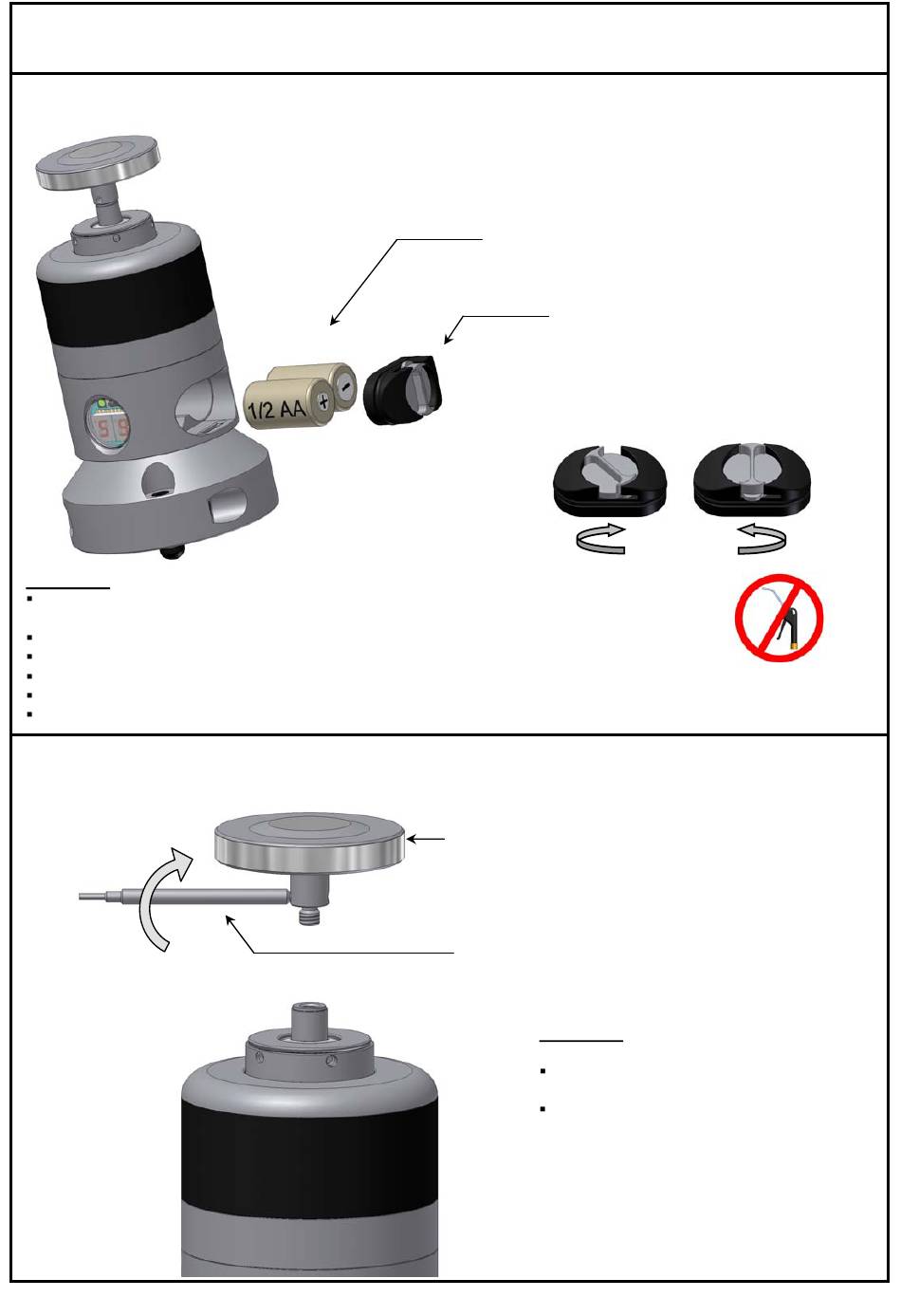

Battery Replacement

Attention !
Before opening Tool Setter, clean and dry well!
Do NOT blow off with compressed air!
Open battery cover by a circular motion!
Remove empty batteries!
Make sure positive and negative ends of battery are inserted correctly!
When closing the battery cover, ensure the O-ring for sealing will be properly inserted !
Replace empty batteries immediately
Stylus Change
M=2Nm (1,47 lbf.ft)
2x Battery Type ½ AA (3.6V)
#4316
Battery cover 38.41-BD
(incl. O-Ring 21x2 Viton #4475)
Battery cover
open
Cylindrical stylus
35.10-D37/16-M4
Mounting pin
#0885
Attention !
After changing the stylus:
Check the alignment of the measuring
surface and realign when needed!
Calibrate the Tool Setter
4
Battery cover
closed
