System Specifications

Allow 1 - 2" from ceiling for motor venting.
U.S. Pat. #
8,377,160
Options - See More on Pg. 21
Leg Extension
SXX137555
47.00"
35 Gal.
63.00"
55 Gal.add 12"
Universal Drum Dolly
SDD990000
32.50"
System
Performance
System
Dimensions
Integral
Fan Blower
Industrial
Quality
Motor
(1.5hp)
87"
(2hp)
88"
(3hp)
Filter Media
88"
(5hp)
91.5"
Sound
Level
Dust Bin
Included
Options
*Oneida reserves the right to change or modify specs and system appearance without notice.
Actual system appearance may vary.

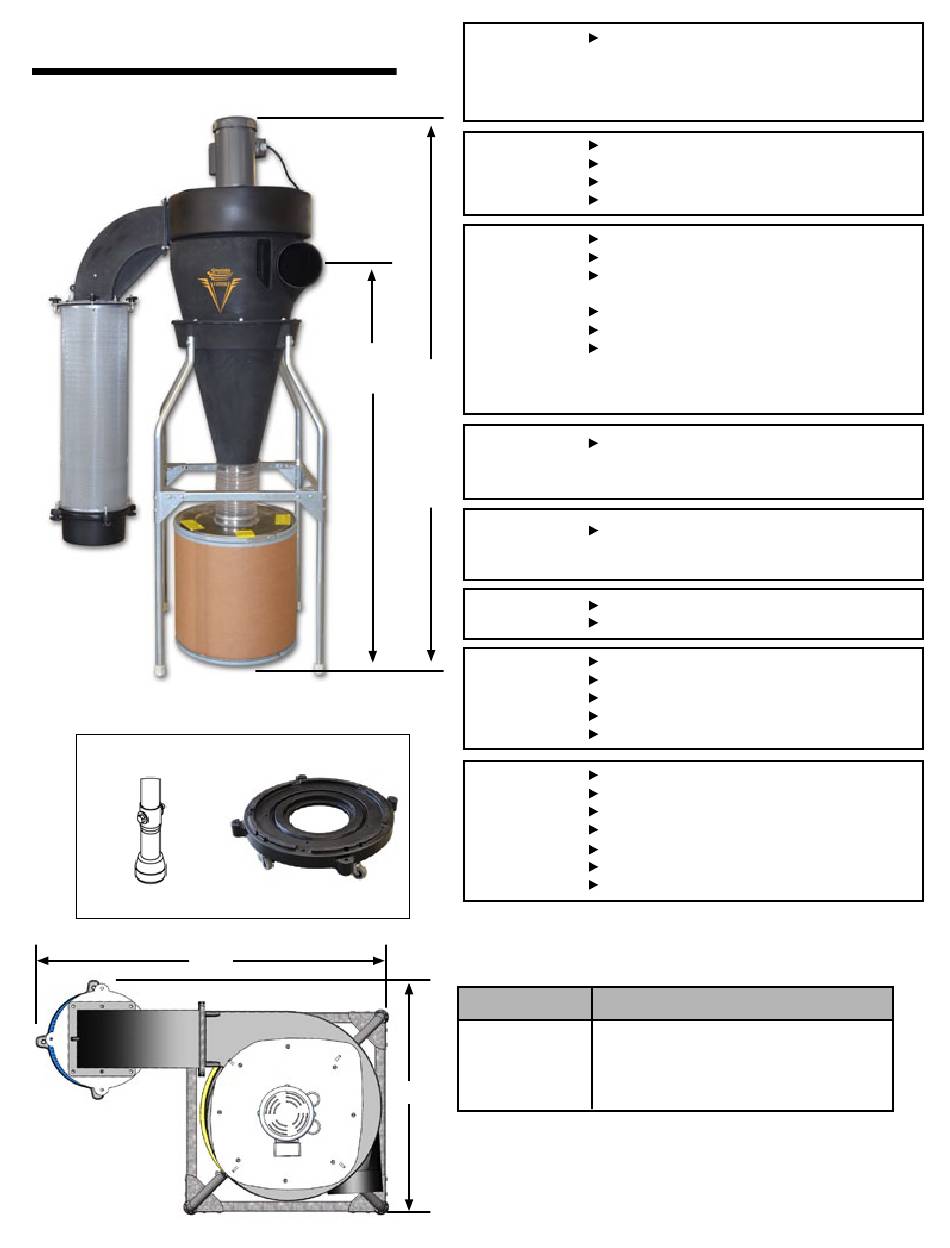

Oneida V-1500™ 1.5hp /V -2000™ 2hp / V-3000™ 3hp / V-5000™ 5hp
Part #
XXVM010139H
XXVM020139H
XXVM030139H
XXVM050139H
4
Approx. 949 CFM @ 1.8" S.P. (1.5hp)
Approx. 1190 CFM @ 1.8" S.P. (2hp)
Approx. 1349 CFM @ 2.3" S.P. (3hp)
Approx. 1422 CFM @ 2.5" S.P. (5hp)
See Specifications Below
Ht. w/ 35 Gallon Drum: (1.5hp) 87" - (2hp) 88" - (3hp) 88" - (5hp) 91.5"
Footprint w/ Ext. Cartridge: Approx. - 33"x 48"
Inlet Diameter: 7"
Molded Static Conductive Resin
U.S. Made Baldor or Leeson motor
1.5, 2, 3 or 5 Horsepower Single Phase
TEFC Motor, (2hp) 1.15 SF (3 / 5hp) 1.0 SF / Insulation
Class F for extra protection and motor life
Voltage: 115 (1.5) 230 (2 / 3 & 5hp)
Amperage: 8 (1.5) 11.5 (2hp) / 13 (3hp) / 19.5 (5hp)
Fan Wheel - Backward Inclined / Non-Sparking, Non-
Ferrous as Required by NFPA Fire Code / Dynamic,
Two-Plane Balanced to ISO 6.3 Specifications. The Same
as Aircraft Turbine Rotors.
13"x 36" 95 Sq. Ft. GE Certified (H-12) HEPA Media.
MERV 16+ rated.
See specs on website.
With Standard Silencer & Filter: 75 - 81 dBA @ 10'
Our Quietest System.
35 Gallon Fiber Drum - ODK350701 Standard
55 Gallon Fiber Drum - ODK550701 - Additional Charge
Filter w/ Internal Silencer
FREE D.I.Y. Duct Design Guide
Flame Guard Arrestor - Pat. # 8,496,719
Pre-Wired Magnetic Starter -
w/ On-Off Switch Preset for Add-On Remote
with Amperage Overload Protector (1 Phase)
Filter Grounding Wire
Remote Control - Radio Frequency
Bag Gripper
Shop Plan Design Service
Wall Mount
Stand
Leg Extensions
Universal Drum Dolly
Description
V-1500™ Collector
V-2000™ Collector
V-3000™ Collector
V-5000™ Collector
Line of Sight Not Required.
