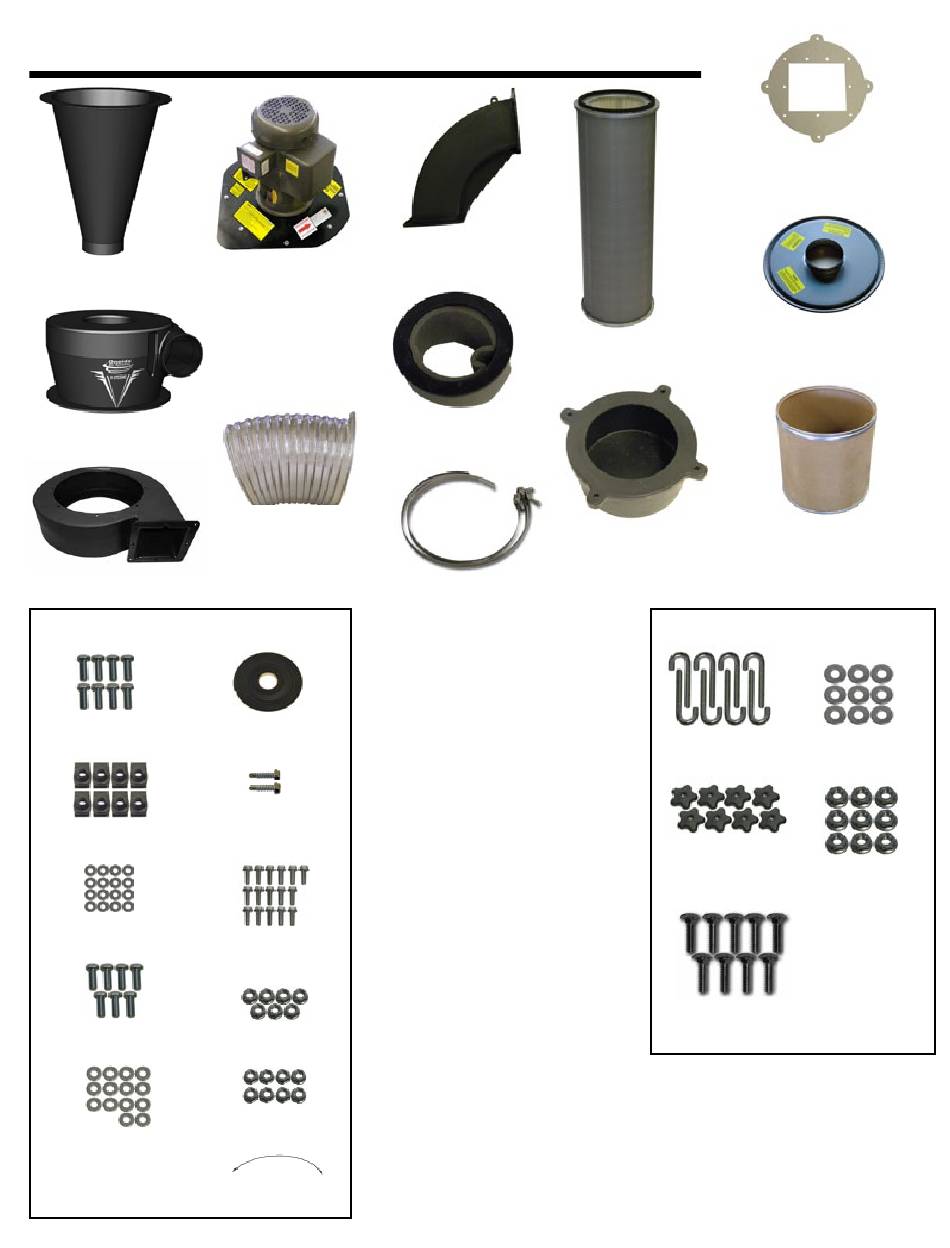

System Contents / le contenu du système
SCX002107B
Cone
SXI002107
Barrel
BHX020005B
Fan Housing
System Hardware Kit - AHX000003B
AFB155130 - 8
RGZ000000 - 25 ft.
5/16-18 x 1 1/4" Hex Bolt
Neoprene Gasket
AFS013000 - 2
#8-18 x 3/8"
AFT051618 - 8
Self-Tapping Screws
5/16-18 U-Spring Clip
AFW180000 - 16
AFB155155 - 16
5/16" Flat Washer
5/16-18 x 1" Bolt Flange
AFS015700 - 7
AFT000004 - 7
3/8-16 x 1 1/4" Hex Bolt
3/8" GR5 Whiz Nut
AFT155175 - 8
5/16" Whiz Nut
AFW190000 - 14
3/8" Flat Washer
FGA000001A - 1
14" Grounding Cable
BXI010106 - 1.5hp
BXI002105SV - 2hp
BXI030107 - 3hp
BXI012305V - 5hp
Motors
DHF070000
Flex Hose
For Stand Contents see
Pg. 3 of the manual. /
Pour stands matières voir
p. 3 du manuel.
Note: you may have a few extra
pieces of hardware left over
when using the stand versus the
wall bracket. / Remarque: vous
pouvez avoir quelques éléments
supplémentaires à gauche lorsque
vous appuyez sur le stand par rap-
port au support mural.
Tools Needed:
Wrenches - 7/16", 1/2", 9/16"
Nut Drivers - 1/4", 5/16"
Flat Blade Screw Driver
Knife
Drill w/ Small Bit - 1/16" or so
FPX000001
Plenum
FCS133695HF
HEPA Filter
BSC130000
Filter Silencer
FPZ000013
Dust Bin
ACB080000
Band Clamps
2
FPX010013
Plenum Filter Plate
SDX000700
Dust Drum Top
SDS350000 / SDS550000
35 or 55 Gal. Dust Drum
Plenum Hardware - GXF010013
AFJ051602 - 8
AFW180000 - 9
5/16-18 x 2" J-Bolt
5/16" Flat Washer
AFT000001 - 8
5/16" x 18
AFT155175 - 9
Thumb Nuts
5/16" Whiz Nut
AFB516125 -9
5/16-18 x 1 1/4" Bolt
