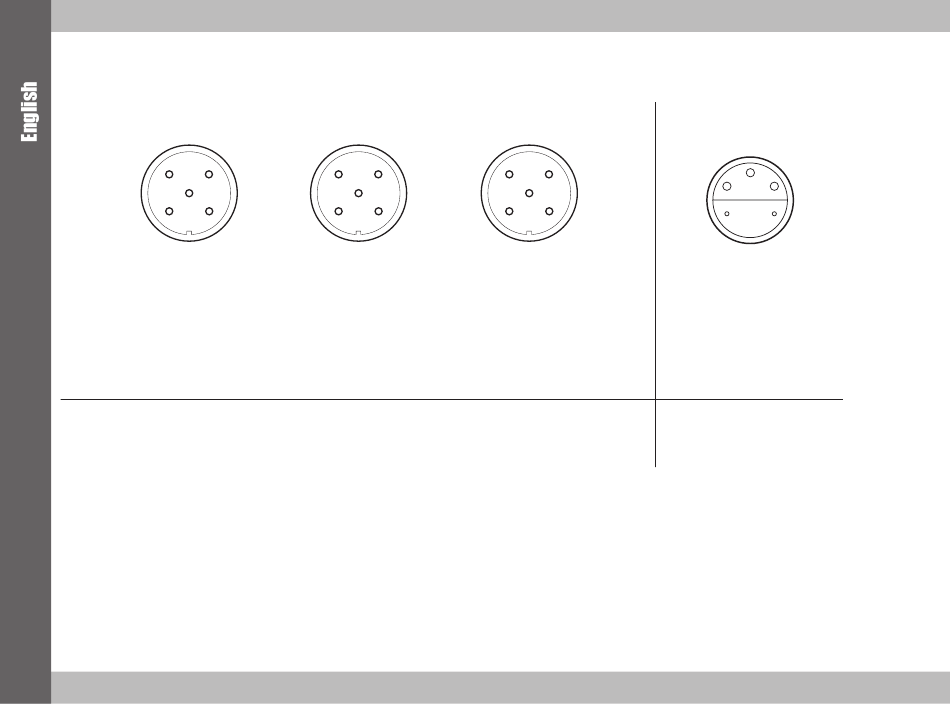

LTR/CTR Connection Details
LTR
4
5
1
Pins
1 = Freq +ve
2 = Freq -ve
3 = Temp
4 = Temp
5 = N/C
Connecting cable (5m)
Extension cable (5m)
Connector (M12x1)
8
CTR (5V)
3 4 3
5
2 1 2
Pins
1 = +In
2 = N/C
3 = 0 - 5V out
4 = N/C
5 = GND
N.B. N/C = Do not connect
FT10228-05
FT10229-05
FT9880
CTR (4 - 20 mA)
4 3
5
1 2
Pins
1 = +In
2 = N/C
3 = 4 - 20mA out
4 = N/C
5 = GND
Sensor Recognition (3V)
2
1
3
4 5
Pins
1 = V Out
2 = N/C
3 = +In
4 = GND
5 = Sensor Recognition
FT9788
FT9789
N/A
