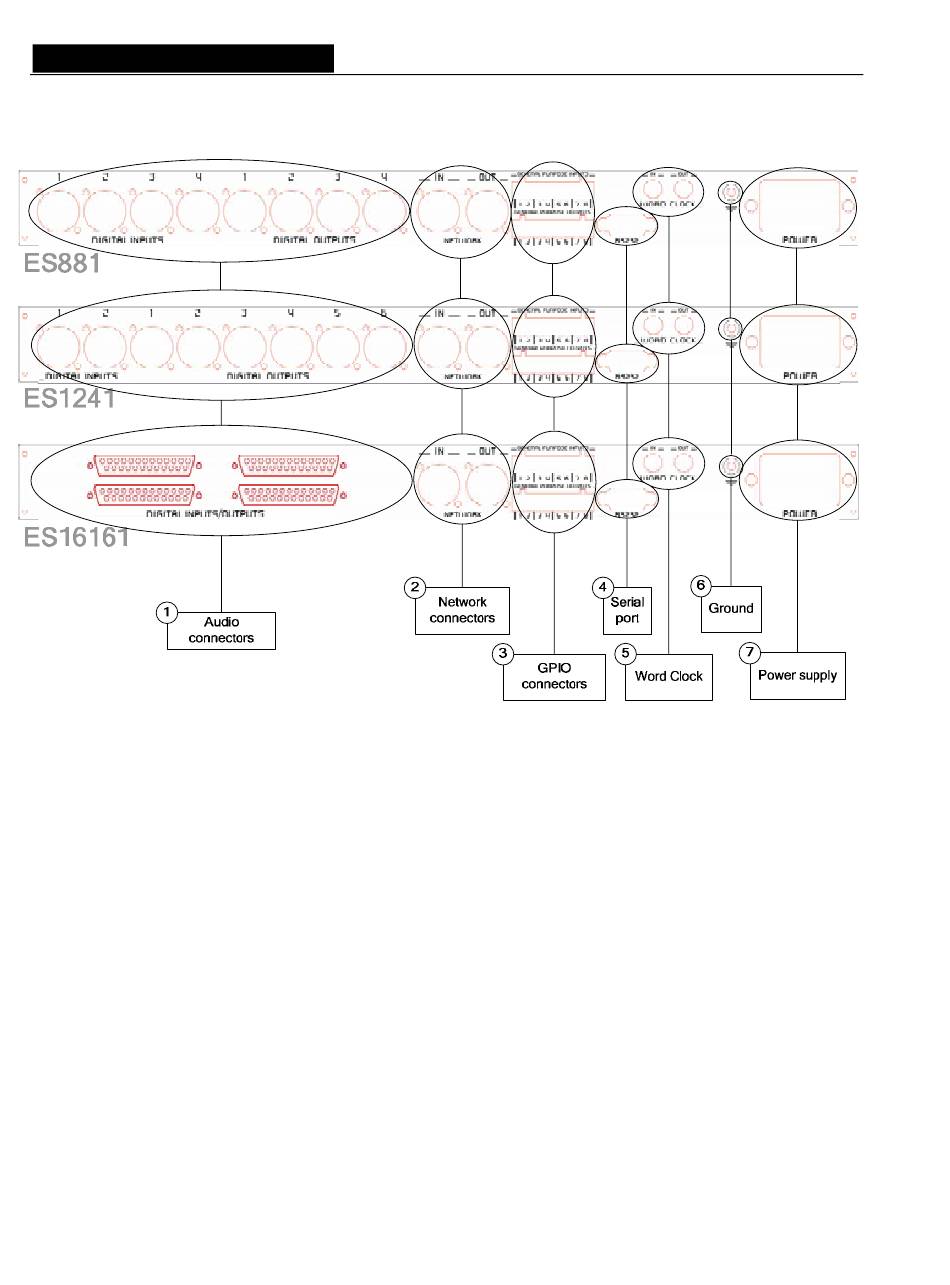

ES881, ES1241, and ES16161 back panels

Audio connectors
1.
On ES881, four male XLR-3 connectors are used to output eight EtherSound channels on four AES/EBU
stereo outputs, four female XLR-3 connectors to input eight EtherSound channels on four AES/EBU stereo
inputs.
On ES1241, six male XLR-3 connectors are used to output twelve EtherSound channels on six stereo
AES/EBU stereo outputs, two female XLR-3 connectors to input four EtherSound channels on two AES/EBU
stereo inputs.
On ES16161, two female Sub-D 25-pin connectors are used to output sixteen EtherSound channels on eight
stereo AES/EBU stereo outputs, two female Sub-D 25-pin connectors to input sixteen EtherSound channels on
eight AES/EBU stereo inputs.
Network connectors
2.
TM
These two Neutrik
network. The "IN" port receives the descending EtherSound stream ('downstream', coming from the 'Primary
Master') while the "OUT" port receives the ascending EtherSound stream ('upstream') and transmits it to the
"IN" port; for more details on the concepts of 'upstream' and 'downstream' please refer to the document
'EtherSound Overview', available on the enclosed CD-ROM and on our web site.
6
g r a m
TM
EtherCon RJ45 connectors allow of a steady and reliable connection to the EtherSound
