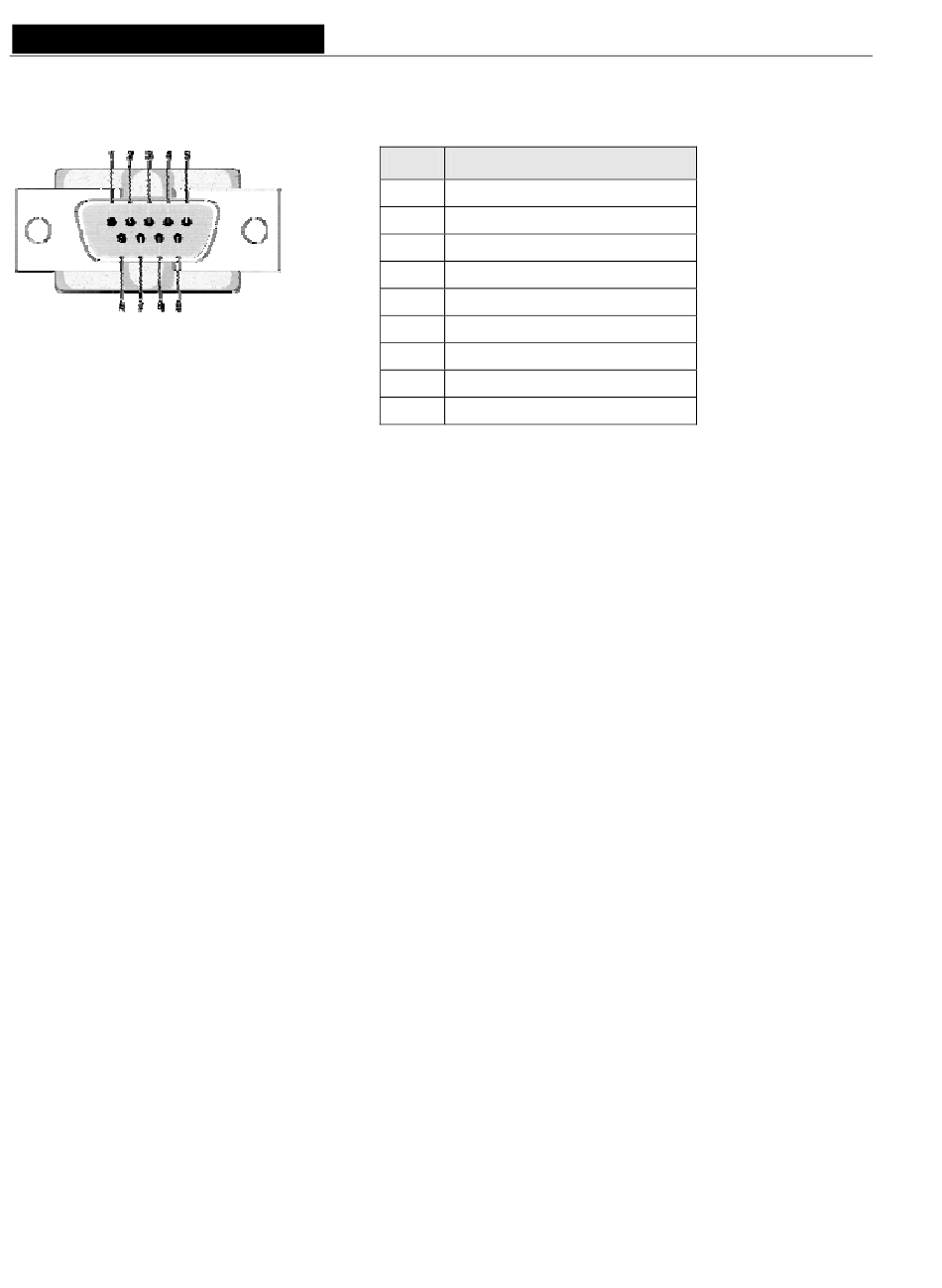

Serial port (RS232 on DB9)

ES881, ES1241, and ES16161 dispose of a serial RS232 male port on the rear panel. Use this port to connect
any compatible device. For pinout allocation details, please refer to the figure and table above.
Note: The RS232 serial port management requires specific software.

Remote set-up by means of configuration software

Use of the configuration software allows for the management of all devices on the EtherSound network; for
software details, please refer to the on-line help file.
ES881, ES1241, and ES16161 are shipped with a CD-ROM containing the EtherSound driver and the
Digigram configuration software, EScontrol. To install this software, please refer to the CD-ROM delivered
with your EtherSound device.
ES881, ES1241, and ES16161 may also be managed through configuration software edited by Digigram
development partners.
To uninstall the software go to Add/Remove programs in the Windows Control Panel.

Firmware update

Digigram may decide to publish firmware updates. It may then become necessary to upgrade your devices. In
this case please refer to the respective documentation provided with the firmware upgrade tool.
10
r a m
Pin # Description
1
not connected
2
RxD (received data)
3
TxD (transmitted data)
4
not connected
5
signal ground
6
not connected
7
RTS (request to send)
8
CTS (clear to send)
9
not connected
